Home > Instruments & Meters > Test Instrument > Test Machine > Satisfy IEC61215-2:2016 Standard Solar Panel Hail Impact Tester /Hit Testing Machine /Crash Testing Apparatus
Satisfy IEC61215-2:2016 Standard Solar Panel Hail Impact Tester /Hit Testing Machine /Crash Testing Apparatus
US$ 9,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HOTOTECH
Place of Origin:
Guangdong, China
Model Number:
HTPV-09HJ
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen YanTian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PV Module Outdoor Measurement System for IEC61215-2:2016 StandardUS$ 29,411.76 - 30,882.35MOQ: 1 Set -
Module Outdoor Measurement Instrument/ PV Module Outdoor Measurement Testing Machine/PV Module Testing MachineUS$ 90,000 - 120,000MOQ: 1 Set
-
Solar Panel Outdoor Testing MachineUS$ 17,647.05 - 32,352.94MOQ: 1 Set
-
PV Module Salt Spray Testing Machine/Salt Fog Chamber Corrosion Tester Equipment/salt Spray Test ChamberUS$ 900 - 1,000MOQ: 1 Set
-
Solar Panel Salt Mist / Slat Fog/salt Atmosphere Environment Testing ChamberUS$ 1,200 - 1,500MOQ: 1 Set
Brand Name
HOTOTECH
Place of Origin
Guangdong, China
Model Number
HTPV-09HJ
Company logo
Satisfy IEC61215-2:2016 standard Solar panel hail impact tester /Hit testing machine /Crash testing apparatus
Standard
It's according to IEC61215-2:2016,IEC61646 etc testing standard
Purpose
The hail impact tester to verify that the module is capable of withstanding the impact of hailstones
The Main Technical specifications
| Product Name | Satisfy IEC61215-2:2016 standard solar panel hail impact tester/Hit testing machine/Crash testing apparatus |
| Testing standard | IEC61215-2:2016 testing standard |
| Testing sample | PV Module |
| Testing smaple size | 2m×1m (customized) |
| Positiong sensor | Infrared positioning sensor |
| Locating accurate | ≤1mm |
| Guide ways | high quality import guide rail |
| Speed range | 0-40m/s |
| Ice ball diameter | 25mm, 35mm, 45mm |
| Control ways | Computer control |
| The barrel size | Can changable |

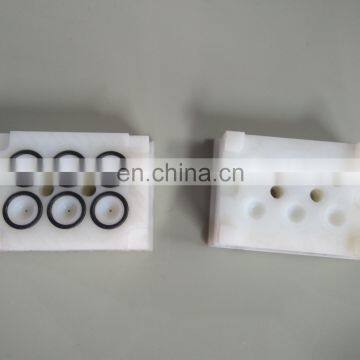

| Ice ball mould | Each ice ball size will attached 2 sets Moulds |
| Electricity | 220V 50HZ |

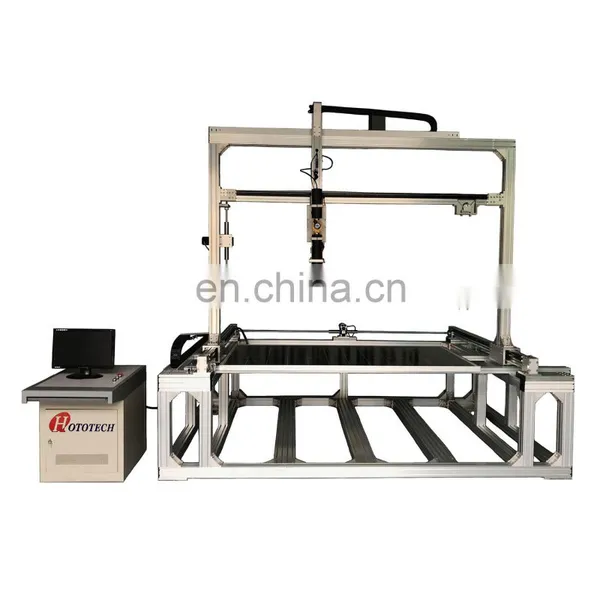

The Hail impact tester's images show
