HTC factory supply pneumatic tooth clutch for washing machine

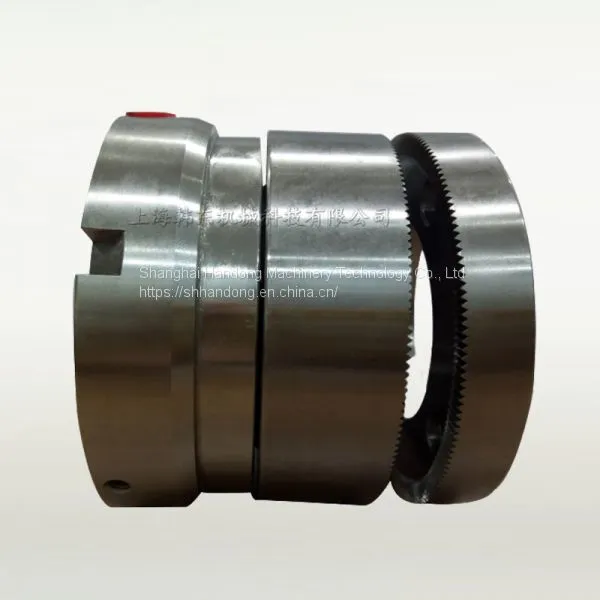

HTC pneumatic inner tooth clutch is linked by two ends of tooth engaged in axia movement after supplying air pressure, released by return springs after exhausting air pressure. Its structure is very similar with BTC, HTP model pneumtic tooth clutch, and they are all tooth clutch. The difference is BTC, HTP two ends of tooth are integrated, while HTC clutch's tooth are separated, they can be taken out independently.
HTC model air shaft tooth clutch is linked with air pressure, released by return springs. After supplying air pressure, piston pushes driving tooth plate to slide along the direction of the axis, driving tooth plate compressed driven tooth plate to come into an integrated structure, clutch linked. Driving tooth plate and driven tooth plate are separated by return springs after exhausting air pressure, clutch released.
Split type tooth clutch, the up and down plane tooth can be separated independently. But it is instant engagement and separation, action flexible and rapid. This is the dimension and technical data of it:

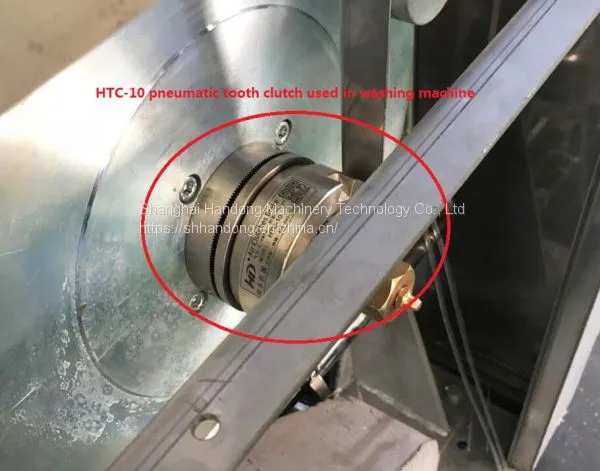

When used in either static or low speed engagement applications, tooth clutches and clutch couplings provide an efficient, positive, switchable link between a motor and load on in-line or parallel shafts. While the field (electromagnet) assembly is prevented from rotating by a fixed flange, the rotor is generally attached to the input shaft. The armature assembly is securely mounted to either an in-line load shaft or a parallel shaft by means of pulleys or gears. It can be used in washing machine to transmit torque.
