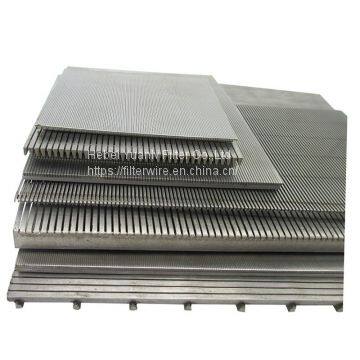

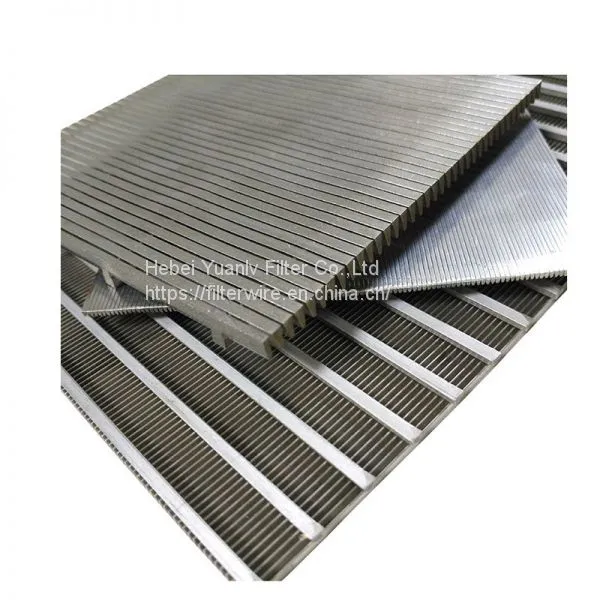

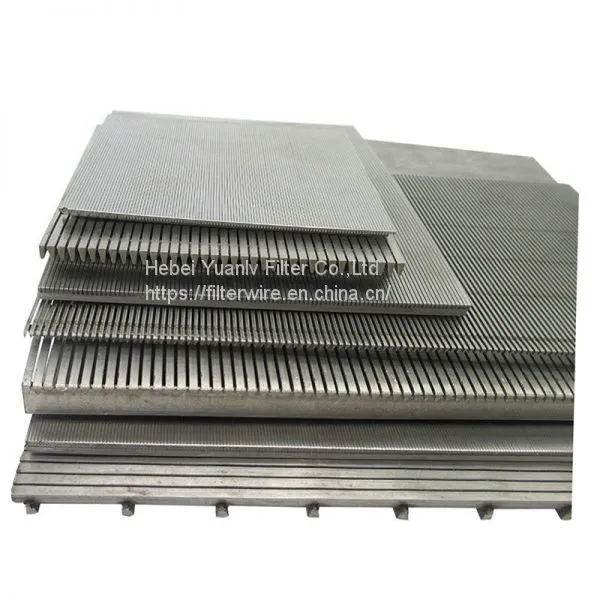

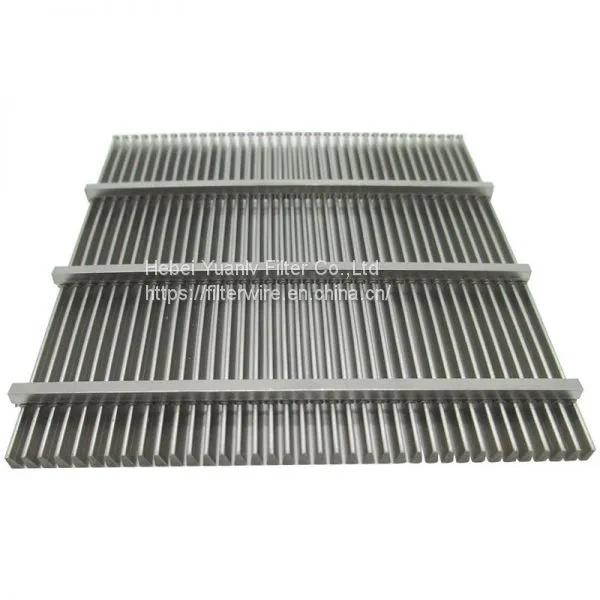

Custom Flat Wedge Wire Screen Panel
- 10 Unit / Units per Month
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 5 micro pp filter cartridge for pre filter
- Vacuum Pump Exhaust Filter 71064773 for Leybold SV300 SV630
- Vacuum Pump Oil Mist Filter 71421180 for Leybold SV40B SV40BI
- R5 RA0100F Vacuum Pump Exhaust Filter 0532140157 Oil Mist Separator
- washable air filters
- Air Breather HY-GLQL-001 for India Power Plant
Product Description
Description
Material: Stainless steel 304, 304L, 316, 316L or as your need
Length/Width: Customized on demand
Minimum slot size: 20μm
Thickness: Customized on demand
Welding: ERW
Filter form: Surface filtration
The wedge wire screen panel is an important working part of the screening machine to complete the screening process. Each screening machine must select a sieve plate that meets its working requirements. The various characteristics of the material, the different structures of the sieve plate, the material and the various parameters of the sieve machine have a certain influence on the screening ability, efficiency, running rate and life of the vibrating screen.
Different materials and different places should use different sieve plates to achieve the best effect of screening. The sieve plate should have sufficient strength, high opening ratio and difficulty in plugging holes. When the vibrating screen vibrates, the wedge wire sieve plate passes through materials of different shapes and sizes, material size, and under the action of vibration force, the materials of different particle sizes are separated to achieve the purpose of classification.
Features:
1) Widely used in various kinds of medium filtering
2) As the fitting using in the water-treating equipment ( the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water, etc)
3) Wedge wire screen style isn't easy to be locked, it's easy to clean.
4) All kinds of shapes and material can be custom
Application of our Wedge Wire Screen Panel:
It can be used in a variety of industry, such as the wastewater treatment; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;etc.
Details:
Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
Length Range | Up to 6000mm | ||||||
Width Range | Up to 6000mm | ||||||
Slot Range | 20 micron to 3000 micron (Tolerance: +-5 micron) | ||||||
Other Shapes | Could cut to any shape according to requirement, such as round, semicircle, sector, and so on. | ||||||
Wedge Wire | 0.5 x 1.5 | 0.75 x 1.5 | 1 x 2 | 1.5 x 2 | 2 x 3 | 2 x 4 | 3 x 5 |
Support Rod | 1.5 x 2.52 x 3 | 1.5 x 2.52 x 3 | 1.5 x 2.52 x 3 | 1.8 x 2.52 x 3 | 2 x 32 x 43 x 53 x 63 x 104 x 7 | 2 x 43 x 53 x 63 x 104 x 75 x 6 | 3 x 53 x 63 x 104 x 75 x 65 x 8 |
End Finishing | With the frame, without any frame, according to request. | ||||||
Note | Customized According To Requirement |
FAQ
Question1. What Are The Tolerances On The Screen Slot?
Answer 1. For the slot apertures in the range of:
0.0025mm to 1.0mm the mean slot will be within 0.025mm with a standard deviation of 0.025mm
≥1.0mm to 2.5mm the mean slot will be within 0.05mm with a standard deviation of 0.05mm
≥2.5mm the mean slot will be within 0.075 with a standard deviation of 0.075mm.
Question 2. What is the standard Size?
Answer 2. Due to the near-infinite possible combinations of slot size, wire profile, wire length, rod profile and spacing, rod length, and alloy requirements for the immense variety of applications, wedge wire screens are all custom manufactured. There are no 'standard' sizes, sorry.
Question 3. What Is The Open Area?
Answer 3. Wedge wire screen open area ratio (OA) is calculated using the following formula (multiply by 100 for percent):
Question 4. How Much Does It Cost?
Answer 4. Due to the near-infinite possible combinations of slot size, wire profile, wire length, rod profile and spacing, rod length, and alloy requirements for the immense variety of applications, wedge wire screens are all custom manufactured. Therefore, cost per unit varies widely and must be calculated on a per-job basis.
Question 5. What Is The Standard Slot Size? What size could you Supply?
Answer5. There are very few applications for which the slot size is standard.
Ion exchange applications (underdrain laterals, media traps) commonly have slots in the range of 0.15mm to 0.20mm. Intake screens for fish protection in Canada generally require 2.54mm slots; in USA 3.175mm slots (larger slots may be allowed, or smaller slots required, by local authorities). Otherwise, the rule of thumb for most applications is to size the slot at half the size of the smallest media particles, the exception being sieve bends where the slot is sized about twice the desired separation size. Screen can be manufactured with any slot from 0.025mm (with most wire profiles) up to about 10mm in 0.025mm increments; larger slots may be available constrained by wire profile and tooling.
Question6: I don't know what specifications I need.
Answer 6:You just need to tell us where you want to use it, we will give you the most professional advice,and send you a sample test.
Question 7. How to purchase your Screen Filters? What's the purchase Process?
Answer7. Put forward purchase requirements--provide product specifications--design product drawings--provide quotations--custom production products--delivery--receive
Question 8. What's the best delivery lead time
Answer 8. Usually the delivery time is 15-30 days.
but if the clients’ order is urgently, the delivery time will be shorter, 7-10 days.
If the screen are at stock, the delivery time will be 3-7 days.
If the product is much complex and purchase quantity is large, the delivery time will be about 30-40 days.
Question 9. How about the payment term:
Answer 9. T/T, L/C, Western Union are possible.
Question 10: Min order?
Answer10: Any quantity is ok.
A sufficient amount of quantity you will get a surprising price.
Question 11: After-sale service?
Answer 11: If you are working with us for the first time, you may have questions about product quality, when buying in large quantities, you will definitely worry about product quality problems. Don't worry, we have a sound quality management system, and if there is a quality problem with the goods you receive, you only need to provide a batch of the product, we will exchange the goods for you in the first time.
