Help CenterWedge Wire Screen Panel
Related Products

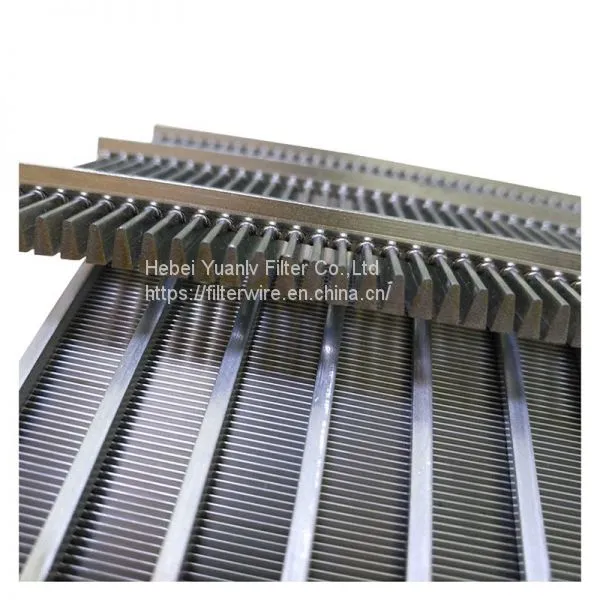

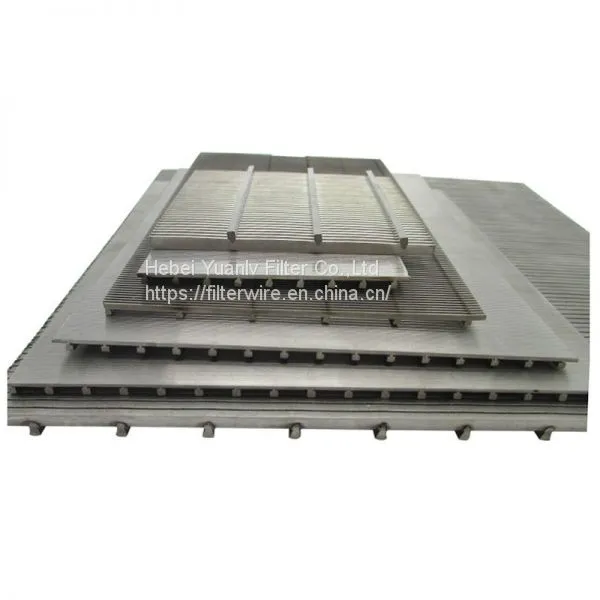

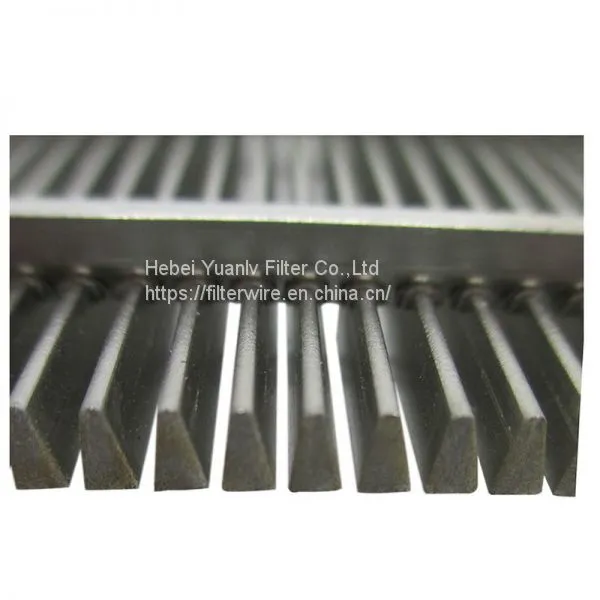

The wedge wire screen panel construction produces high strength and extended service life suitable for many screening applications in numerous industries. Look at the below picture, you can find the advantage of the wedge wire screen by yourself. Wedge wire screen panel construction produces high strength and extended service life suitable for many screening applications in numerous industries.
Features of Wedge Wire Screen Panel
1) Widely used in various kinds of medium filtering
2) As the fitting using in the water-treating equipment ( the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;
3) The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;
4) The organic solution recycling filter
Applications of Wedge Wire Screen Panel
-- Media Retention
-- Screening
-- Dewatering
-- Collection
-- Distribution
-- Separation
-- Product recovery
Specifications of wedge wire screen panel:
| Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
| Length Range | Up to 6000mm | ||||||
| Width Range | Up to 6000mm | ||||||
| Slot Range | 20 micron to 3000 microns (Tolerance:+-5 micron) | ||||||
| Other Shapes | Could cut to any shape according to requirements, such as round, semicircle, sector, and so on. | ||||||
| Wedge Wire | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5x2 | 2x3 | 2x4 | 3x5 |
| Support Rod | 1.5x2.52x3 | 1.5x2.52x3 | 1.5x2.52x3 | 1.8x2.52x3 | 2x32x43x53x63x104x6 | 2x43x53x63x104x65x6 | 3x53x63x104x65x65x8 |
| End Finishing | With the frame, without any frame, according to request. | ||||||
| Note | Customized According To Requirement | ||||||
