Help CenterSS Flat Wedge v Wire Screen Panel Used for Iron Ore
Related Products

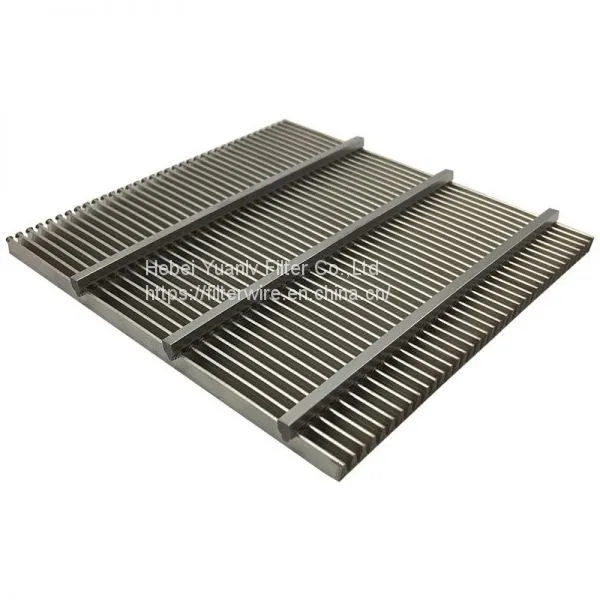

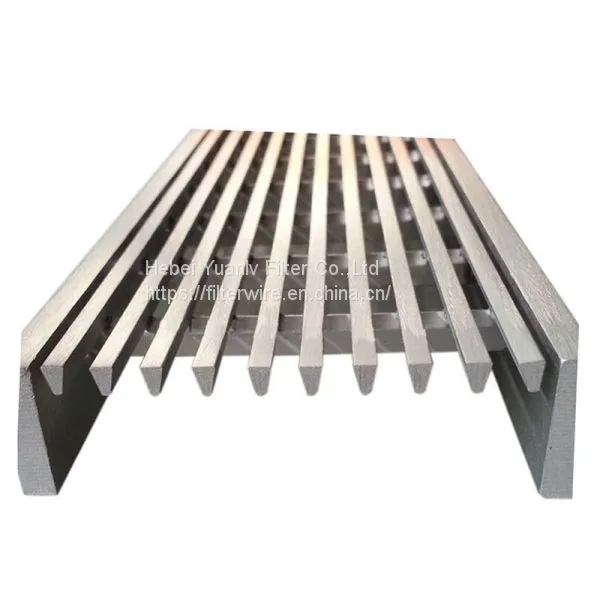

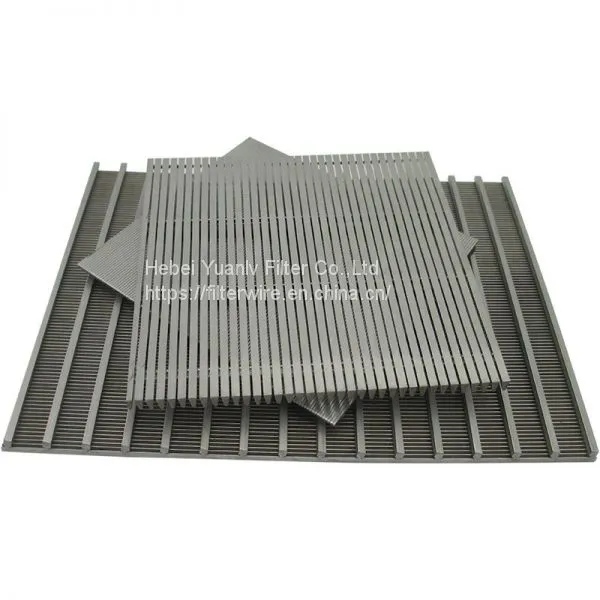

SS flat wedge v wire screen panel is manufactured by the flat welded screen in the panel.
SS flat wedge v wire screen pane offers a perfectly flat and smooth surface with rectangular openings.
SS flat wedge v wire screen panes are used in a wide variety of processes across several industry sectors. We use state-of-the-art manufacturing techniques that place our products at the cutting edge of wedge wire screen construction. Flat panels can be designed and manufactured according to customer specifications and come in a wide range of grades - from fine gap screens for small particle sizes to heavy-duty screens for heavy load applications.
Application of SS flat wedge v wire screen panel used for iron ore
The flat panel screens are used in the chemical industry, sieving of petroleum, pharmaceutics, metallurgy, and coal, food and beverage, also can be used in filtration of water treatment. Flat welded screens are the most popular mining screen due to their strength.
Features of SS flat wedge v wire screen panel used for iron ore
SS flat wedge v wire screen panel is easy to penetrate, having good wear-resisting and corrosion resistance. With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long lifetime, high strength and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot, and frame structure can be customized.
Specifications of SS flat wedge v wire screen panel used for iron ore:
| SS flat wedge v wire screen panel | |
Material: |
Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.) |
Wedge Wire (mm): |
Width : 1.50 1.80 2.30 3.00 3.30 3.70 |
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 | |
Support Rod (mm): |
Width : 2.30 3.00 3.30 3.70 |
Height : 2.70 3.60 4.70 5.60 6.30 | |
Round : 2.50mm -- 6.0mm | |
Width: |
from 1 inch -----45 inch. |
Length: |
lengths up to 6 meters. |
Slot size: |
0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request. |
Note: Other specifications can be customized according to your requirement | |
