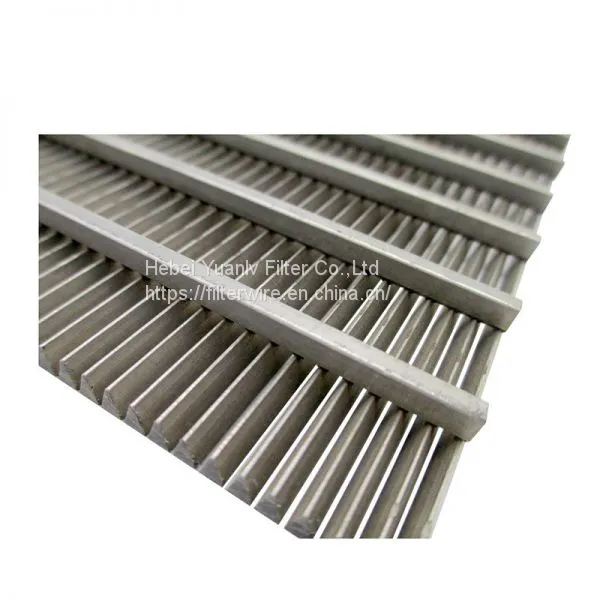

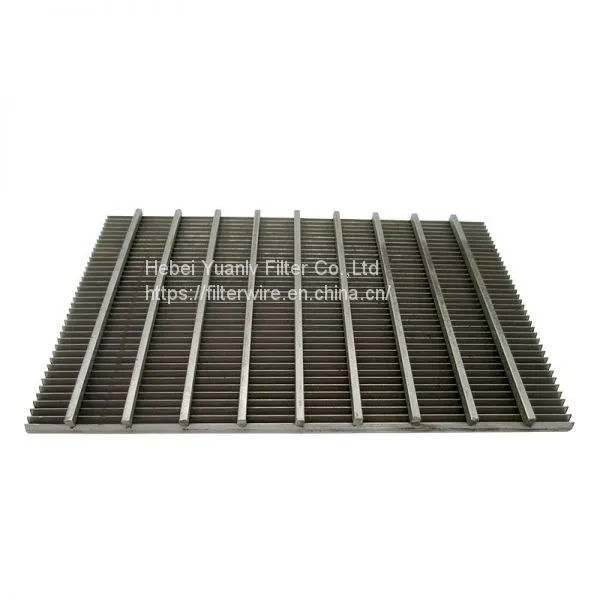

Help CenterFlat Wedge Wire Sieve Screen Plate Supplier
Related Products
The flat wedge wire sieve screen plate is an important working part of the screening machine to complete the screening process. Each screening machine must select a sieve plate that meets its working requirements. The various characteristics of the material, the different structures of the sieve plate, the material and the various parameters of the sieve machine have a certain influence on the screening ability, efficiency, running rate and life of the vibrating screen. Different materials and different places should use different sieve plates to achieve the best effect of screening. The sieve plate should have sufficient strength, high opening ratio and difficulty in plugging holes. When the vibrating screen vibrates, the wedge wire sieve plate passes through materials of different shapes and sizes, material size, and under the action of vibration force, the materials of different particle sizes are separated to achieve the purpose of classification.
Application of Flat wedge wire sieve screen plate
Media Retention
Screening
Dewatering
Collection
Distribution
Separation
Product recovery
Characteristic of Flat wedge wire sieve screen plate
1. Wedge wire screen style isn't easy to be locked
2. Due to the different pressure between inside from outside, it could be very easy to clean the plugging material.
3. We are eager for long-terms cooperative parters, our factory promise the best quality to have a high filtering accuracy, high strength, and durability
4. We have the most advanced equipment and the most professional workers, so totally could be as per customer's drawing to produce new styles.
Specifications of Flat wedge wire sieve screen plate supplier:
| Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
| Length Range | Up to 6000mm | ||||||
| Width Range | Up to 6000mm | ||||||
| Slot Range | 20 micron to 3000 microns (Tolerance:+-5 micron) | ||||||
| Other Shapes | Could cut to any shape according to requirements, such as round, semicircle, sector, and so on. | ||||||
| Wedge Wire | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5x2 | 2x3 | 2x4 | 3x5 |
| Support Rod | 1.5x2.5 2x3 |
1.5x2.5 2x3 |
1.5x2.5 2x3 |
1.8x2.5 2x3 |
2x3 2x4 3x5 3x6 3x10 4x6 |
2x4 3x5 3x6 3x10 4x6 5x6 |
3x5 3x6 3x10 4x6 5x6 5x8 |

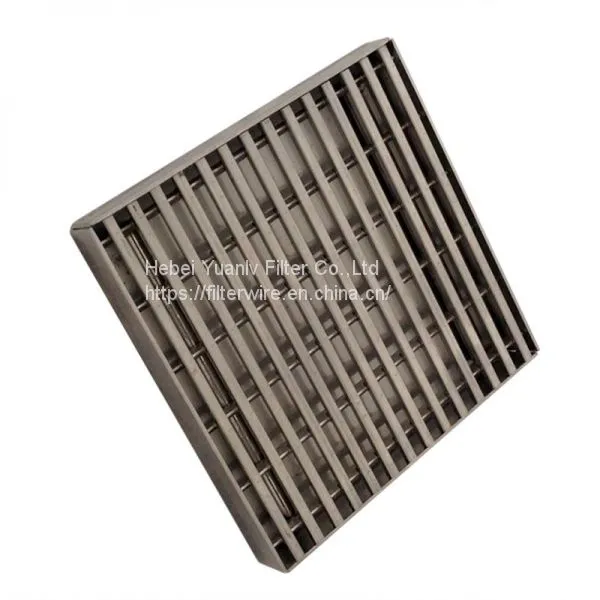

| End Finishing | With the frame, without any frame, according to request. | ||||||
| Note | Customized According To Requirement | ||||||
