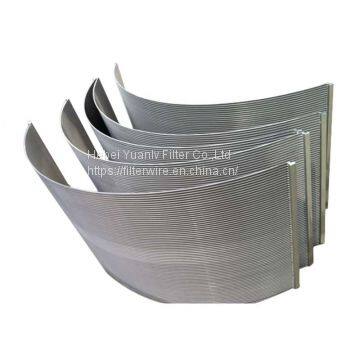

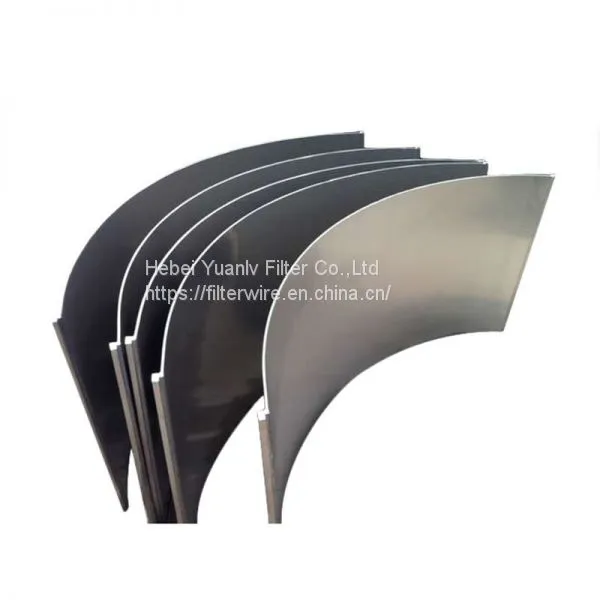

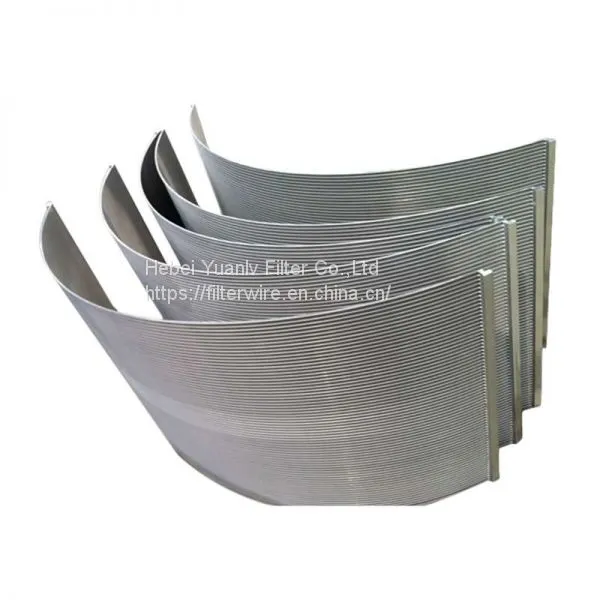

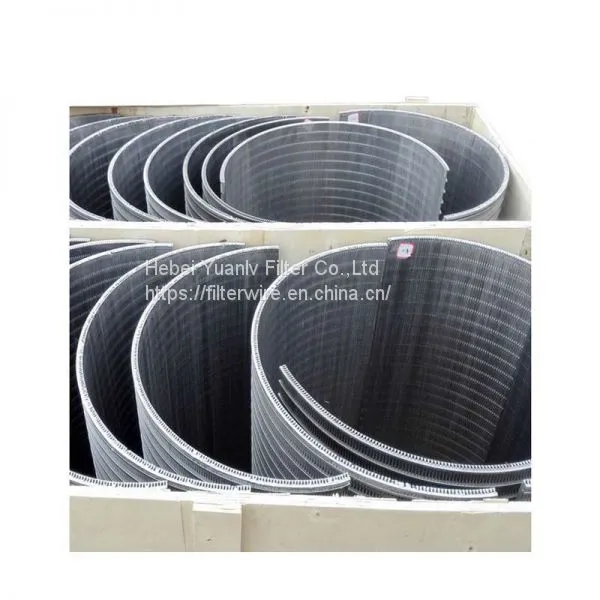

Wedge vee wire arc sieve bend screen plates are ideal for sizing and dewatering applications to remove solids from liquids, or in solid/solid separation for dry feed situations.
Wedge vee wire arc sieve bend screen plate can be manufactured in a variety of widths, arc lengths, apertures or wedge wires to suit the flow rate and material being separated. Although most applications require Static Sieve Bends, "Cross Flow", "With Flow" and "Vibrating" Sieve Bends can also be manufactured.
Features of Wedge vee wire arc sieve bend screen plate for aquaculture application
1.Working with the water gravity, no energy consumption
2. High water treatment capacity
3. Not easy to be blocked and easy to clean
4. Using stainless steel, it has high mechanical strength and long life.
Usage of Wedge vee wire arc sieve bend screen plate for aquaculture application
The Sieve Bend Screen is commonly used in food processing and corn wet milling plants. In the corn wet milling process, CP Screens precisely manufactures the 120 Degree DSM Screen which is simple in shape, just like the common Sieve Bend Screen, however it's very fine slot openings commonly 75 and 100 µm, are very critical.
Specifications of Wedge vee wire arc sieve bend screen plate for aquaculture application:
| |||||||
| Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
| Length Range | Up to 6000mm | ||||||
| Width Range | Up to 6000mm | ||||||
| Slot Range | 20 micron to 3000 microns (Tolerance:+-5 micron) | ||||||
| Wedge Wire | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5x2.5 | 2x3 | 2x4 | 3x5 |
| Support Rod | 1.5x2.52x3 | 1.5x2.52x3 | 1.5*2.52x3 | 2x3 | 3*5 | 3x5 | 3x54*65*8 |
| Angle | 90°，120°，140°，150°，160° etc. | ||||||
| Arc height | 10mm,15mm,20mm,50mm or depend on the size of the screen panel. | ||||||
| Frame | No frame or ” L” type frame, ordinary frame, 5*10mm frame, etc, according to your request. | ||||||
| Note | Customized according to the requirement | ||||||
