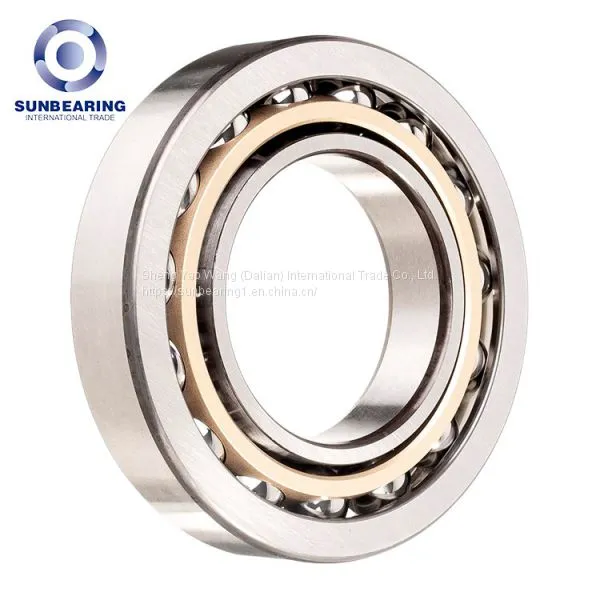

Help Center7222BDB Single Row Angular Contact Ball Bearing 110*200*38 mm Chrome Steel SUNBEARING
Related Products
-
7322BG Radial Angular Contact Ball Bearing 110*240*50mm SUNBEARINGUS$ 38.88 - 50MOQ: 1 Piece -
7928AC/DF Single Angular Contact Ball Bearing 140*190*24mm SUNBEARINGUS$ 205 - 300MOQ: 1 Piece
-
QJ1020 Four-Point Angular Contact Ball Bearing 100*150*24mm SUNBEARINGUS$ 27 - 28.2MOQ: 1 Piece
-
3209 Double Row Angular Contact Ball Bearing 45*85*30.2mm SUNBEARINGUS$ 21 - 30MOQ: 1 Piece
-
3309 Double Row Angular Contact Ball Bearing 45*100*39.7mm SUNBEARINGUS$ 53.93 - 60MOQ: 1 Piece
Product Description
| Bore diameter: | 110 mm | Limiting speeds | 2000 min-1 (Grease) | |
| Outside diameter: | 200 mm | Limiting speeds | 2800 min-1 (Oil) | |
| Overall width: | 38 mm | Cage material: | Steel | |
| Bore type: | Straight | Bearing material: | Steel | |
| Outer ring type: | Not Split | Cage type: | Inner Ring Guided | |
| Internal clearance: | C0 | Precision rating: | Not Rated | |
| Closure type: | Open | Weight: | 9.24KG | |
| Lubrication hole type: | Lubrication Groove & Hole | da | 122.0 mm | |
| Dynamic load capacity: | 259000N | Da | 193.0 mm | |
| Static load capacity: | 298000N | ra | 2.0 mm |
Single row angular contact ball bearings are self-retaining units with solid inner and outer rings and ball and cage assemblies with polyamide, sheet steel, or brass cages. The raceways of the inner and outer rings are offset in relation to each other in the direction of the bearing axis. The bearings are available in open and sealed versions. Their self-alignment capacity is very small.
BDB Bearing FeaturesBack-to-back configuration, the rear code is DB (such as 70000/DB), the load lines of the back-to-back paired bearings are separated from the bearing shaft. Can withstand the axial load acting in two directions, but the load in each direction can only be borne by one bearing. Angular contact ball bearings mounted back-to-back to provide a relatively rigid bearing configuration and can withstand tilting moments.
Single Row Bearing Application
Papermaking machinery, various types of industrial reducers, reduction gears, railway vehicle axles, rolling mill gearbox bearing housings, rolling mill rollers, crushers, vibrating screens, printing machinery, woodworking machinery, vertical self-aligning bearings.
