Help CenterAxial 51213M Single Direction Thrust Ball Bearing 65*100*27mm
Related Products
-
SUNBEARING 51203-A Silver 17*35*12mm Chrome Steel GCR15 Thrust Ball BearingUS$ 1.29 - 3MOQ: 1 Piece -
SUNBEARING 51113 Thrust Ball Bearing Silver 65*90*18mm Chrome Steel GCR15US$ 3.57 - 7MOQ: 1 Piece
-
61972 ABEC-3 Single Row Deep Groove Ball Bearing 360*480*56mmUS$ 5 - 100MOQ: 1 Piece
-
Axial 51134M Thrust Ball Bearing 170*215*34mmUS$ 37 - 50MOQ: 1 Piece
-
6302-2RS Radial Ball Bearing 15*42*13mm for Motorcycle SUNBEARINGUS$ 1 - 10MOQ: 1 Piece
Product Specification
| Bore diameter: | 65 mm | Reference speed | 2 600 r/min |
| Outside diameter: | 100 mm | Limiting speed | 3 600 r/min |
| Overall width: | 27 mm | Cage material: | Steel |
| Bore type: | Straight | Bearing material: | Steel |
| Outer ring type: | Split | Cage type: | Inner Ring Guided |
| Internal clearance: | C3 | Precision rating: | Not Rated |
| Closure type: | Open | Weight: | 0.77KG |
| Lubrication hole type: | Lubrication Groove & Hole | D1 | 100 mm |
| Dynamic load capacity: | 74.8 KN | d1 | 65 mm |
| Static load capacity: | 189 KN | r min. | 1 mm |

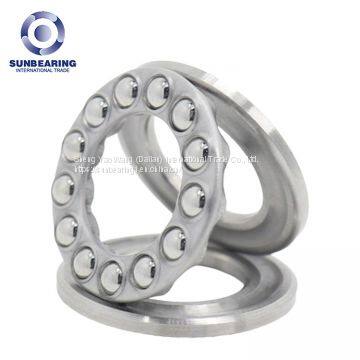

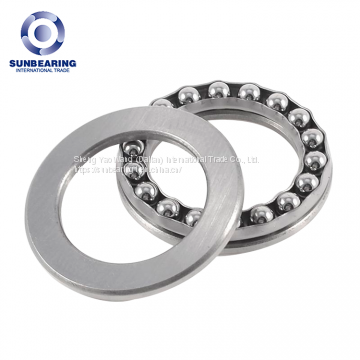

Single direction thrust ball bearings consist of a shaft washer, a housing washer and a ball and cage thrust assembly. The bearings are separable so that mounting is simple as the washers and the ball and cage assembly can be mounted separately
Single direction thrust ball bearings, as their name suggests, can accommodate axial loads in one direction and thus locate a shaft axially in one direction. They must not be subjected to any radial load.
1). Thrust ball bearing can handle loads in the axial direction only.
2). Bearing rings mounted on the shaft are called shaft washers, while those mounted in the housing are called housing washers.
3). Both washers contain raceways for the balls.
4). Thrust ball bearings are available as both single and bi-directional types. The bi-directional thrust bearing incorporates a third washer and an additional set of balls.
5). The center washer is located in an axial direction by a shaft shoulder and sleeve.
6). The thrust ball bearings are available in two designs: single direction and double direction.
Application
Thrust ball bearing applies only to bear a part of the axial load and low speed, such as crane hook, vertical pumps, vertical centrifuge, jack, low-speed reducer, etc. The shaft of the bearing ring, seat ring, and rolling body is separate, can be installed separately.
