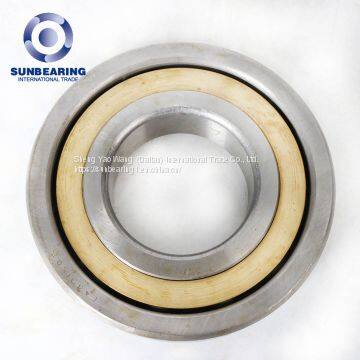

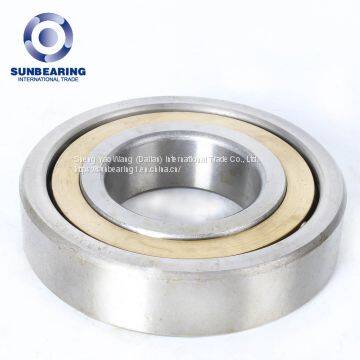

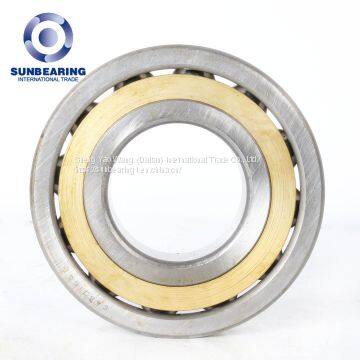

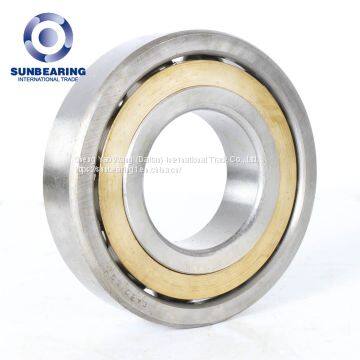

SUNBEARING 7205CDB Silver 25*52*30mm Chrome Steel GCR15 Angular Contact Ball Bearing
- 2000 Piece / Pieces per Month
- Dalian
- T/T L/C
- 14 days
- SUNBEARING UCPH208 Green 40*100*49.2mm Chrome Steel GCR15 Pillow Block Bearing
- SUNBEARING UCHA207 Green 35*92*116mm Chrome Steel GCR15 Pillow Block Bearing
- SUNBEARING UCHA212 Green 60*142*65.1mm Chrome Steel GCR15 Pillow Block Bearing
- SUNBEARING 6905 Silver 25*42*9mm Chrome Steel GCR15 Deep Groove Ball Bearing
- SUNBEARING 6818 Silver 90*115*13mm Chrome Steel GCR15 Deep Groove Ball Bearing
- SUNBEARING UKF206 Pillow Block Bearing 25mm
Product Details
Brand Name: | SUNBEARING | Place of Origin: | China | Model Number: | 7205CDB |
Number of Row: | Single Row | Seals Type: | rs | Precision Rating: | P0 P3 P4 P5 P6 |
Outside Diameter: | 9.99, 150 | Bore Size: | 41.99, 120 |
Product Description
Product Description
Angular Contact Ball Bearing 7205CDB | |
Specification | |
Design Units | Metric |
Structure | Ball Bearing |
Weights | 0.27kgs |
Cage Material | Steel cage |
Material | Chrome Steel GCR15 |
Ball Type | Carbon chromium steel |
Seals Type | ZZ |
Certificate | ISO9001:2008 |
Advantage | Single row angular contact ball bearing(70,72,73,718,719 series) |
Number of Row | Single |
Dimensions | |
d-Bore Diameter | 25mm |
D-Outer Diameter | 52mm |
Precision Rating | P5 P6 P4 P2 P0 |
Clearance |
C2 C3 C4 C5 C0 |
H-Total Width | 30mm |
Basic Load Ratings | |
Cr Dynamic Load Rating | 27000N |
C0r Static Load Rating | 20400N |
1.Specifications :
The construction of this ball bearing is similar to mounting two single row angular ball bearings back to back(DB).
Capacities of double row ball bearing is less than single row since few balls can be inserted per row.
This bearing type can sustain radial, moment and bi-directional axial loads.
2.Features :
Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis. This means that they are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.
Our company produce angular contact ball bearings in a wide variety of designs and sizes:
1. single row angular contact ball bearing(70,72,73,718,719 series)
2. double row angular contact ball bearing(32,33 series)
3. four-point contact ball bearing(Q,QJ)
Our bearings are widely used in machine tools, metallurgy, aviation, automobile, railways and other
