Help CenterAxial 51134M Thrust Ball Bearing 170*215*34mm
Related Products
-
6302-2RS Radial Ball Bearing 15*42*13mm for Motorcycle SUNBEARINGUS$ 1 - 10MOQ: 1 Piece -
16004 Thin Section Open Deep Groove Ball Bearing 20*42*8mm SUNBEARINGUS$ 0.79 - 3.6MOQ: 1 Piece
-
6222 ZZ Deep Groove Ball Bearing 110*200*38mm SUNBEARINGUS$ 128.13 - 150MOQ: 1 Piece
-
6318 Open Radial Ball Bearing 110*200*38mm Single Row SUNBEARINGUS$ 27.86 - 178.11MOQ: 1 Piece
-
6909NR ZZ Deep Groove Ball Bearing 45*68*12mm SUNBEARINGUS$ 12.7 - 14MOQ: 1 Piece
Product Specification
| Bore diameter: | 170 mm | (Grease) Lubrication Speed | 1 100 r/min |
| Outside diameter: | 215mm | (Oil) Lubrication Speed | 1 600 r/min |
| Overall width: | 34 mm | Cage material: | Steel |
| Bore type: | Straight | Bearing material: | Steel |
| Outer ring type: | Split | Cage type: | Inner Ring Guided |
| Internal clearance: | C3 | Precision rating: | Not Rated |
| Closure type: | Open | Weight: | 3.3KG |
| Lubrication hole type: | Lubrication Groove & Hole | D1 | 172 mm |
| Dynamic load capacity: | 134 kN | d1 | 213 mm |
| Static load capacity: | 510 kN | r min. | 1,1 mm |
For forces in the shaft direction. The thrust bearing 51134 absorbs loads from an axial direction and can be dismantled. Main dimensions according to DIN 711.

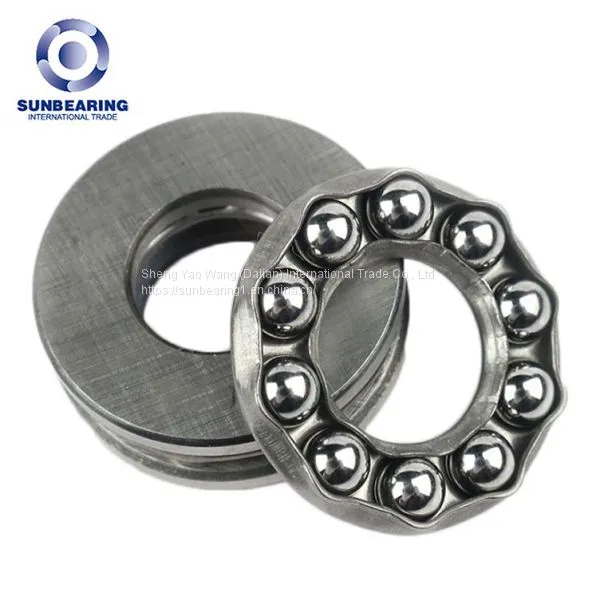

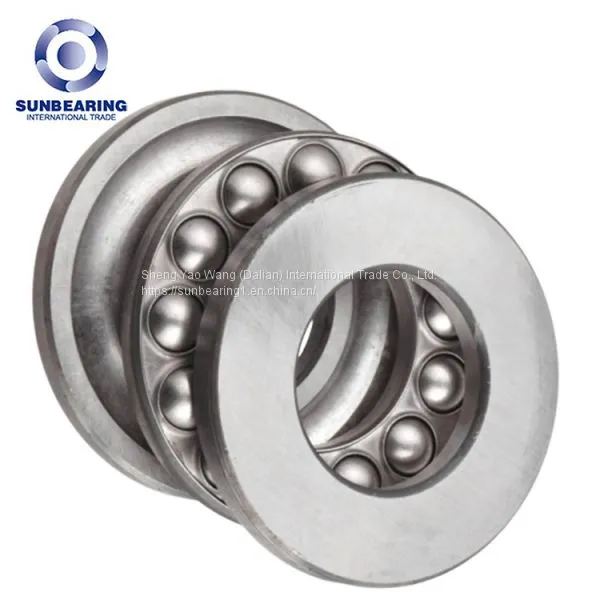

FeaturesIt consists of a shaft washer, a spherical housing washer, and a ball cage assembly
51134M suitable for relatively high axial loads in one direction
Bearing cage material: sheet steel, high load-bearing capacity, and high strength; suitable for continuous high temperatures
Thrust bearings can be dismantled, the bearing washers and the ball cage assembly can be mounted separately
Manufacturers of bearings, such as FAG, KOYO, NSK, SKF, SNR, etc. assign different suffixes for their characteristics, for better orientation take note of the comparison table of bearings
The use of thrust ball bearings: only suitable for parts that bear one axial load and low speed, such as crane hooks, vertical water pumps, vertical centrifuges, jacks, low-speed reducers, etc. The shaft ring, seat ring, and rolling element of the bearing are separated and can be assembled and disassembled separately.
