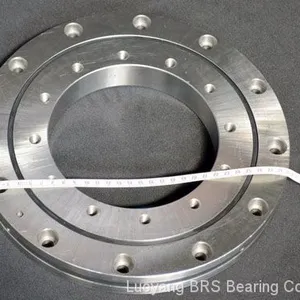

Help CenterXSU080218 Crossed Roller Bearing 180x255x25.4mm
Related Products
-
XSU080258 Crossed Roller Bearing 220x295x25.4mmUS$ 10 - 300MOQ: 2 Pieces -
XSU080318 Crossed Roller Bearing 280x355x25.4mmUS$ 10 - 300MOQ: 2 Pieces
-
XSU080398 Crossed Roller Bearing 360x435x25.4mmUS$ 10 - 300MOQ: 2 Pieces
-
CRBF2012 ATUU Crossed Roller Bearing 20x70x12mm for Robots ArmUS$ 10 - 300MOQ: 10 Pieces
-
CRBF2512 ATUU Crossed Roller Bearing 25x80x12mmUS$ 10 - 300MOQ: 10 Pieces
XSU080218 crossed roller bearing specifications:
Inner dia.: 180mm
Outer dia.: 255mm
Width: 25.4mm
Structure: crossed cylindrical roller bearing with mounting holes, thin section slewing ring.
Material: GCr15 bearing steel/50Mn
Space retainer： Yes
Lubrication hole: Yes
Sealing: NBR seals both sides
Load direction: can take axial, radial loads and tilting moment at the same time.
Working temperature: -25℃~80℃
XSU080218 crossed roller bearing features:
High stiffness and high loading capacity.
Take combined loads including adial, axial and moment loads.
Pre-load type, negative clearance, ensure bearings high rotation accuracy.
Grinding finished surface, reduce friction and extend bearings surface life.
-
Customized size, structure or material available.
More models related to XSU080218 crossed roller bearing
| Model | d (mm) | D (mm) | H (mm) | Mass (kg) |
| XSU080168 | 130 | 205 | 25.4 | 3.3kg |
| XSU080188 | 150 | 225 | 25.4 | 3.7kg |
| XSU080218 | 180 | 255 | 25.4 | 4.3kg |
| XSU080258 | 220 | 295 | 25.4 | 5.1kg |
| XSU080318 | 280 | 355 | 25.4 | 6.3kg |
| XSU080398 | 360 | 435 | 25.4 | 7.8kg |
