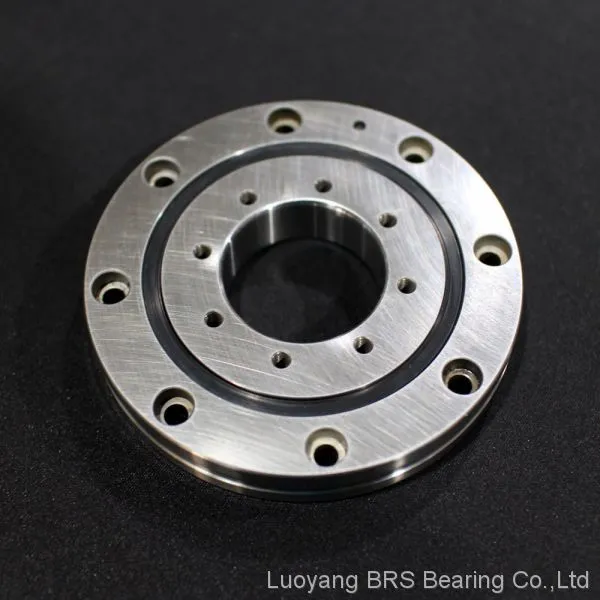

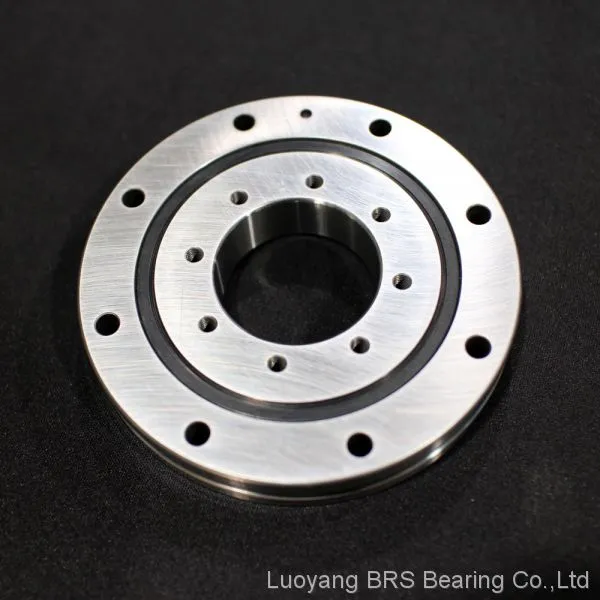

Help CenterCRBF3515 ATUU Crossed Roller Bearing 35x95x15mm
Related Products
-
CRBF5515 ATUU Crossed Roller Bearing 55x120x15mmUS$ 10 - 300MOQ: 5 Pieces -
RAU1005 Micro Crossed Roller Bearings 10x21x5mmUS$ 10 - 500MOQ: 5 Sets
-
CRBF8022A UU Crossed Roller BearingUS$ 10 - 300MOQ: 5 Pieces
-
CRB3010 Crossed Roller BearingUS$ 10 - 500MOQ: 5 Sets
-
NRXT8013 Crossed Roller BearingUS$ 10 - 500MOQ: 5 Sets
Model: CRBF3515ATUU
Inner ring: 35mm
Outer ring: 95mm
Width: 15mm
Weight: 0.66kg
Structure: crossed cylindrical roller bearing with mounting holes
Materials: GCr15 bearing steel
Precision grade: P5/P4
Lubrication type: Grease lubrication
Lubrication hole: Yes
Load direction: axial, radial and tilting moment.
| Accuracy | P5 | P4 | P2 |
| Radial run-out of inner ring | 5μm | 4μm | 2.5μm |
| Axial run-out of inner ring | 5μm | 4μm | 2.5μm |
| Radial run-out of outer ring | 10μm | 6μm | 5μm |
| Axial run-out of outer ring | 10μm | 6μm | 5μm |
| Clearance | T1 | C1 | C2 |
| Radial internal clearance | -10~0μm | 0~10μm | 10~25μm |
1. CRBF3515 crossed roller bearing has solid one-piece inner and outer ring, provide stable running accuracy and torque, suited for applications which require high rotation accuracy of both inner and outer ring.
2. Besides, it can take combined loads, resistant to shock loads, and precision won't be affected by mounting errors.
3. With mounting holes on both inner and outer ring, easy to arrange installation by bolts or screws. BRS can produce customized mounting holes too.
Application: waist joints of robots, rotary table, radar, precision measuring instruments, etc.
Surface treatment: surface blackening, phosphate treatment, zinc-plating,etc. to protect bearings from rust or corrosion.
| CRBF series | Equivalent Model | d(mm) | D(mm) | B(mm) |
| CRBF 108 AT UU | / | 10 | 52 | 8 |
| CRBF 2012AT UU | RU42 | 20 | 70 | 12 |
| CRBF 2512 AT UU | / | 25 | 80 | 12 |
| CRBF 3515 AT UU | RU66 | 35 | 95 | 15 |
| CRBF 5515 AT UU | RU85 | 55 | 120 | 15 |
| CRBF 8022 A UU | RU124 | 80 | 165 | 22 |
| CRBF 8022 AD UU | RU124(G) | 80 | 165 | 22 |
| CRBF 8022 AT UU | RU124X | 80 | 165 | 22 |
