CRB3010 Crossed Roller Bearing

CRB3010 Crossed Roller Bearing thumbnail-1
CRB3010 Crossed Roller Bearing thumbnail-2
CRB3010 Crossed Roller Bearing thumbnail-3
CRB3010 Crossed Roller Bearing photo-1
CRB3010 Crossed Roller Bearing photo-2
CRB3010 Crossed Roller Bearing photo-3
US$ 10 - 500 MOQ: 5 Sets
Key Specifications
Get Latest Price
Brand Name:
RIGBRS
Place of Origin:
China
Model Number:
CRB3010UU
Contact Supplier Request Quote Chat Now
Luoyang BRS Bearing Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
45 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name RIGBRS
Place of Origin China
Model Number CRB3010UU
Feature Cross Roller
Seals Type sealed both sides
Outside Diameter 36, 220
Bore Size 20, 160
Gear Options Nongeared

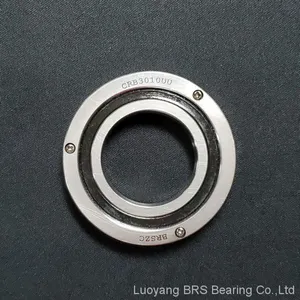

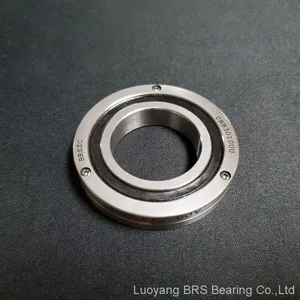

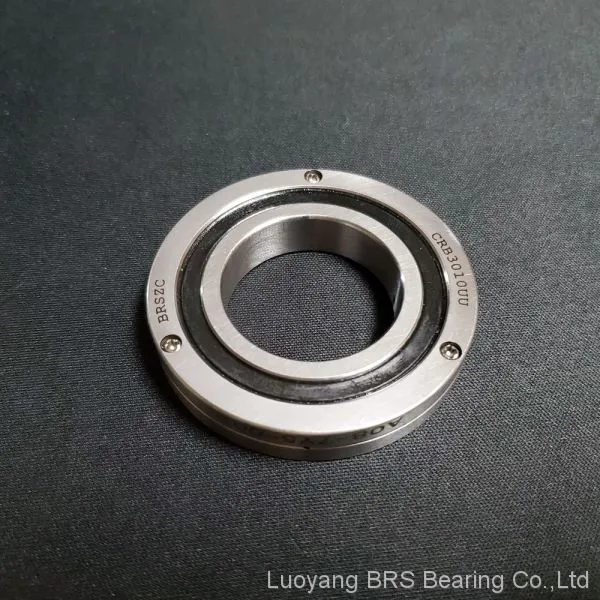

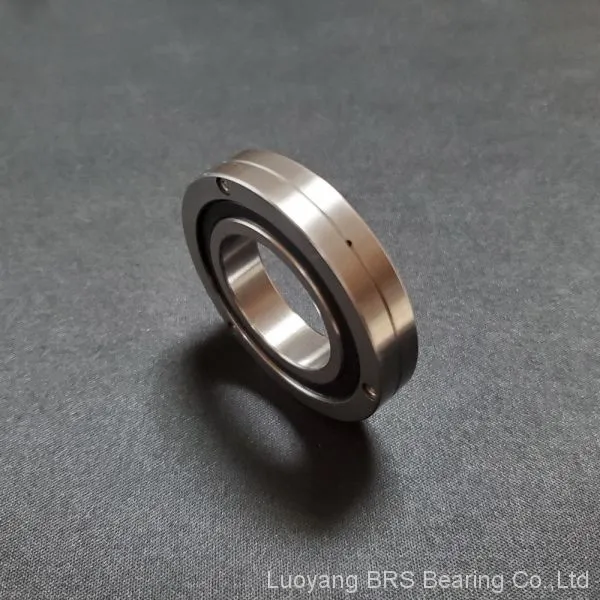

CRB3010UU crossed roller bearing

size: 30*55*10mm

structure: single row crossed cylindrical roller bearings with the separable outer ring and integrated inner ring.

sealing: sealed both sides

clearance: CC0/C0

precision: P5/P4


CRB3010 cross roller ring has a thin section(slim type), so it's suited for where space is limited, and inner ring running accuracy is required.


CRB series crossed roller bearing provides high and stable running accuracy, suited for precision detecting instrument, robot joints, direct-drive torque motor, high-precision turntable, etc.


CRB series cross roller ring models

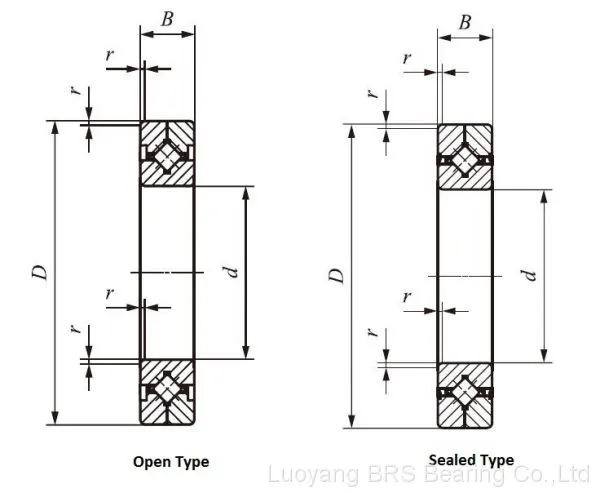

Open Type Sealed Type d D B rsmin Cr (kN) Cor (kN) Mass (kg)
CRB3010 CRB3010UU 30 55 10 0.3 7.35 8.36 0.12
CRB4010 CRB4010UU 40 65 10 0.3 8.33 10.6 0.15
CRB5013 CRB5013UU 50 80 13 0.6 16.7 20.9 0.29
CRB6013 CRB6013UU 60 90 13 0.6 18 24.3 0.33
CRB7013 CRB7013UU 70 100 13 0.6 19.4 27.7 0.38
CRB8016 CRB8016UU 80 120 16 0.6 30.1 42.1 0.74
CRB9016 CRB9016UU 90 130 16 1 31.4 45.3 0.81
CRB10020 CRB10020UU 100 150 20 1 33.1 50.9 1.45
CRB11020 CRB11020UU 110 160 20 1 34 54 1.56
CRB12025 CRB12025UU 120 180 25 1.5 66.9 100 2.62
CRB13025 CRB13025UU 130 190 25 1.5 69.5 107 2.82
CRB14025 CRB14025UU 140 200 25 1.5 74.8 121 2.96
CRB15025 CRB15025UU 150 210 25 1.5 76.8 128 3.16
CRB15030 CRB15030UU 150 230 30 1.5 100 156 5.3
CRB20025 CRB20025UU 200 260 25 2 84.2 157 4
CRB20030 — 200 280 30 2 114 200 6.7
CRB20035 — 200 295 35 2 151 252 9.58
CRB25025 CRB25025UU 250 310 25 2.5 69.3 150 4.97
CRB25030 — 250 330 30 2.5 126 244 8.1
CRB25040 — 250 355 40 2.5 195 348 14.8
CRB30025 CRB30025UU 300 360 25 2.5 76.3 178 5.88
CRB30035 — 300 395 35 2.5 183 367 13.4
CRB30040 — 300 405 40 2.5 212 409 17.2
CRB40035 — 400 480 35 2.5 156 370 14.5
CRB40040 — 400 510 40 2.5 241 531 23.5
CRB40070 — 400 580 70 2.5 470 811 72.4
CRB50040 — 500 600 40 2.5 239 607 26
CRB50050 — 500 625 50 2.5 267 653 41.7
CRB50070 — 500 680 70 2.5 536 1020 86.1
CRB60040 — 600 700 40 3 264 721 30.6
CRB60070 — 600 780 70 3 591 1230 102
CRB600120 — 600 870 120 3 1250 2270 274
CRB70045 — 700 815 45 3 281 836 46.5
CRB70070 — 700 880 70 3 630 1390 115
CRB700150 — 700 1020 150 3 1660 3010 478
CRB80070 — 800 950 70 4 468 1330 109
CRB800100 — 800 1030 100 4 936 2040 247
Open type With seal d D B rsmin Cr Cor Mass (kg)


Product Tags: CRB3010 crossed roller bearing , CRB3010UUCC0P5 bearing , IKO CRB3010 crossed roller ring , CRB3010 bearing supply , robots bearing CRB3010 , Manipulator bearing CRB3010 , CRB3010 bearing manufacturer , CRB3010 bearings China , 30*55*10mm slewing bearing
