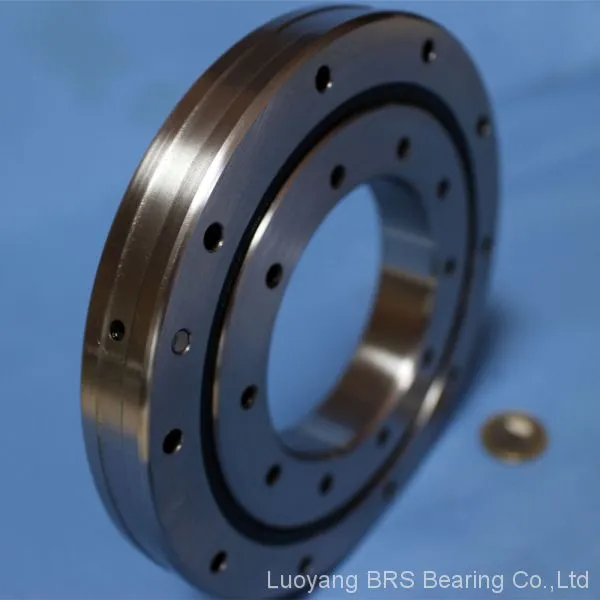

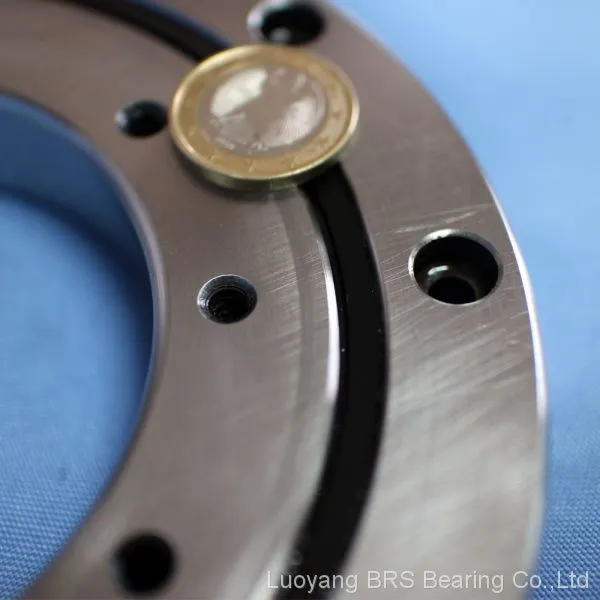

Help CenterCRBF8022A UU Crossed Roller Bearing
Related Products
-
CRB3010 Crossed Roller BearingUS$ 10 - 500MOQ: 5 Sets -
NRXT8013 Crossed Roller BearingUS$ 10 - 500MOQ: 5 Sets
-
XI120288-N Cross Roller Slewing BearingUS$ 10 - 300MOQ: 2 Pieces
-
RU124 Crossed Roller BearingUS$ 10 - 300MOQ: 10 Pieces
-
RU124X Crossed Roller Bearing 80x165x22mmUS$ 10 - 300MOQ: 20 Pieces
Model: CRBF8022AUU
Inner ring: 80mm
Outer ring: 165mm
Width: 22mm
Weight: 2.63kg
Structure: crossed cylindrical roller bearing with mounting holes
Materials: GCr15 bearing steel
Precision grade: P5/P4
Lubrication Type: Grease lubrication
Lubrication hole: Yes
Load direction: axial, radial, and tilting moment.
CRBF8022A UU crossed roller bearing precision and clearance details
| Accuracy | P5 | P4 | P2 |
| Radial run-out of inner ring | 5μm | 4μm | 2.5μm |
| Axial run-out of inner ring | 5μm | 4μm | 2.5μm |
| Radial run-out of outer ring | 13μm | 8μm | 5μm |
| Axial run-out of outer ring | 13μm | 8μm | 5μm |
| Clearance | T1 | C1 | C2 |
| Radial internal clearance | -10~0μm | 0~15μm | 15~35μm |
CRBF8022 face mount crossed roller bearing features
1. CRBF8022 crossed roller bearing has a solid one-piece inner and outer ring, provide stable running accuracy and torque, suited for applications which require high rotation accuracy of both inner and outer ring.
2. Besides, it can take combined loads, resistance to shock loads, and precision won't be affected by mounting errors.
3. With mounting holes on both inner and outer rings, easy to arrange installation by bolts or screws. BRS can produce customized mounting holes too.
Application: waist joints of robots, rotary table, radar, precision measuring instruments, etc.
Surface treatment: surface blackening, phosphate treatment, zinc-plating, etc. to protect bearings from rust or corrosion.
CRBF crossed roller bearing models
| CRBF series | Equivalent Model | d(mm) | D(mm) | B(mm) |
| CRBF 108 AT UU | / | 10 | 52 | 8 |
| CRBF 2012AT UU | RU42 | 20 | 70 | 12 |
| CRBF 2512 AT UU | / | 25 | 80 | 12 |
| CRBF 3515 AT UU | RU66 | 35 | 95 | 15 |
| CRBF 5515 AT UU | RU85 | 55 | 120 | 15 |
| CRBF 8022 A UU | RU124 | 80 | 165 | 22 |
| CRBF 8022 AD UU | RU124(G) | 80 | 165 | 22 |
| CRBF 8022 AT UU | RU124X | 80 | 165 | 22 |
