Home > Industrial Equipment & Components > Bearing > Spherical Roller Bearing > CRBH9016 A UUCCO Crossed Roller Bearings Manufacturers China 90x130x16mm
CRBH9016 A UUCCO Crossed Roller Bearings Manufacturers China 90x130x16mm
US$ 100 - 1000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ZLYQX
Place of Origin:
China
Model Number:
crossed roller bearings
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
XR496051 xr Series Crossed Tapered Roller Bearings Manufacturers China 203.2x279.4x31.75mmUS$ 100 - 1000MOQ: 1 Piece -
XR820060 xr Series Crossed Tapered Roller Bearings Price580x760x80mmUS$ 100 - 1000MOQ: 1 Piece
-
JXR637050 Taper Roller Bearings Made in China 300X400X37mm Measuring Instruments and IC Manufacturing Machines UseUS$ 100 - 1000MOQ: 1 Piece
-
JXR652050 Thin Section Cross Roller Bearing Price 310X425X45mmUS$ 100 - 1000MOQ: 1 Piece
-
RB12025 Crossed Roller Bearing Factory 120X180X25mm Robot Crossed Roller BearingUS$ 100 - 180MOQ: 1 Piece
Brand Name
ZLYQX
Place of Origin
China
Model Number
crossed roller bearings
Precision Rating
P5 / P4 / P2
Outside Diameter
130,
Bore Size
90,

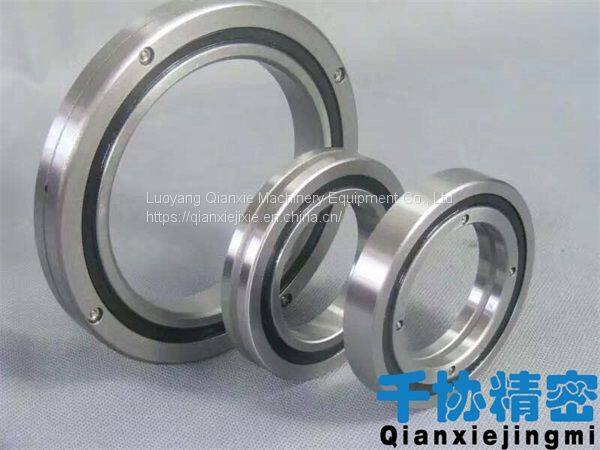

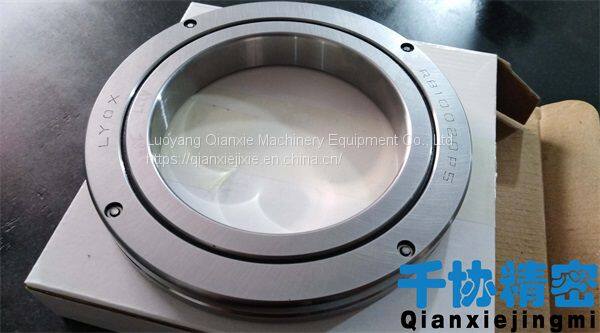

CRBH 9016 A UUCCO Crossed Roller Bearings (90x130x16mm) Precision Robotic arm use
Crossed Roller Bearings Parameters
Model number- CRBH A 9016 UUCCO
Inner ring(mm)- 90
Outer ring(mm)- 130
Width(mm)- 16
Weight(Kg)- 0.81
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring
Series Model No.
CRBH5013A,CRBH6013A,CRBH7013A,CRBH8016A,CRBH9016A,CRBH10020A,CRBH11020A,CRBH12025A,CRBH13025A,CRBH14025A,CRBH15025A,CRBH20025A,CRBH25025A
CRBH series Crossed Roller Bearings Parameters
| haft diameter | Identification number | Main dimensious(mm) | Mounting dimensions (mm) | Basic static load rating | Basic static load rating | weight | |||||
| Inner diameter | outer diameter | width | r min | da | Da | C KN | Co KN | Kg | |||
| d | D | B | |||||||||
| 50 | CRBH 5013A | CRBH 5013A UU | 50 | 80 | 13 | 0.6 | 56 | 74 | 1.73 | 2.09 | 0.29 |
| 60 | CRBH 6013A | CRBH 6013A UU | 60 | 90 | 13 | 0.6 | 66 | 84 | 1.88 | 2.43 | 0.33 |
| 70 | CRBH 7013A | CRBH 7013A UU | 70 | 100 | 13 | 0.6 | 76 | 94 | 2.01 | 2.77 | 0.38 |
| 80 | CRBH 8016A | CRBH 8016A UU | 80 | 120 | 16 | 0.6 | 88 | 112 | 3.21 | 4.34 | 0.74 |
| 90 | CRBH 9016A | CRBH 9016A UU | 90 | 130 | 16 | 0.6 | 98 | 122 | 3.31 | 4.68 | 0.81 |
| 100 | CRBH 10020A | CRBH 10020A UU | 100 | 150 | 20 | 0.6 | 110 | 140 | 5.09 | 7.22 | 1.45 |
| 110 | CRBH 11020A | CRBH 11020A UU | 110 | 160 | 20 | 0.6 | 120 | 150 | 5.24 | 7.74 | 1.56 |
| 120 | CRBH 12025A | CRBH 12025A UU | 120 | 180 | 25 | 1 | 132 | 168 | 7.34 | 10.8 | 2.62 |
| 130 | CRBH 13025A | CRBH 13025A UU | 130 | 190 | 25 | 1 | 142 | 178 | 7.59 | 11.5 | 2.82 |
| 140 | CRBH 14025A | CRBH 14025A UU | 140 | 200 | 25 | 1 | 152 | 188 | 8.19 | 13 | 2.96 |
| 150 | CRBH 15025A | CRBH 15025A UU | 150 | 210 | 25 | 1 | 162 | 198 | 8.43 | 13.8 | 3.16 |
| 200 | CRBH 20025A | CRBH 20025A UU | 200 | 260 | 25 | 1 | 212 | 248 | 9.23 | 16.9 | 4 |
| 250 | CRBH 25025A | CRBH 25025A UU | 250 | 310 | 25 | 1.5 | 262 | 298 | 10.2 | 20.7 | 4.97 |
Drawings and other parameters ,pls contact us free, thanks
