Home > Industrial Equipment & Components > Bearing > Spherical Roller Bearing > XU080430Crossed Roller Bearings 380X480X26mm Without Gear,Slewing Rings Replace INA Brand With Higher Precision

XU080430Crossed Roller Bearings 380X480X26mm Without Gear,Slewing Rings Replace INA Brand With Higher Precision

XU080430Crossed Roller Bearings 380X480X26mm Without Gear,Slewing Rings Replace INA Brand With Higher Precision thumbnail-1
XU080430Crossed Roller Bearings 380X480X26mm Without Gear,Slewing Rings Replace INA Brand With Higher Precision photo-1
US$ 100 - 600 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ZLYQX
Place of Origin:
China
Model Number:
XU080430
Contact Supplier Request Quote Chat Now
Luoyang Qianxie Machinery Equipment Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ZLYQX
Place of Origin China
Model Number XU080430
Precision Rating P5 / P4 / P2
Outside Diameter 480,
Bore Size 380,

XU series crossed roller slewing rings is a kind of bearing with integrated inner- and outer ring. With single row rollers arranged crosswise ,separated with spacer, with higher load ,It is being used in cases where high rotational accuracy of both the inner- and outer rings is required.

Crossed Roller Slewing Ring Bearings Parameters

Model number- XU080430

Inner ring(mm)- 380

Outer ring(mm)- 480

Width(mm)- 26

Weight(Kg)- 12

Materials- GCR15/GCR15SiMn

Precision grade- P5/P4/P2

Lubrication type- Grease lubrication

Rotating part- Inner ring/Outer ring

Load direction- Multi-load

Structure- Integrated Inner/Outer Ring


Series Model No.

XU050077,XU060094,XU060111,XU080120,XU080149,XU120179,XU120222,XU160260,XU080264,XU160405,XU080430,XU300515.

Related moldes.

Parameters for Single-row Crossed Roller Slewing Bearings

Series Model
Number		 Main dimensions Fixing Hole(Outer ing) Fixing Hole(Inner ing) Basic load rating
(Axial)		 Basic load rating
(Radial)		 Weight
Kg
Inner ring
d(mm)		 Outer ring
D(mm)		 Roller pitch
circle
dp(mm)		 Width
B(mm)		 Pitch of holes
φLa		 Number
na		 Pitch of holes
φLi		 Number
ni		 Ca KN Coa KN Cr KN Cor KN
XU XU050077 40 112 77 22 97 6-φ6.6 56 6-M8 22.4 29 14.3 14.2 1.4
XU060094 57 140 94 26 120 6-φ9 70 6-M8 32.5 37.5 20.7 18.4 2.4
XU060111 76.2 145.79 111 15.87 133.1 8-φ6.9 88.9 8-φ6.9 36 44.5 22.8 21.5 1.2
XU080120 69 170 120 30 148 6-φ9 90 6-M8 56 53 35.5 26 4
XU080149 101.6 196.85 149.6 22.22 177.8 16-φ6.9 115.8 16-φ6.9 63 66 40 32.5 3.6
XU120179 124.5 234 179 35 214 12-φ11 144.5 12-φ11 118 179 75 88 7
XU120222 140 300 222 36 270 12-M16 170 12-φ18 133 275 85 131 12
XU160260 191 329 260 46 305 20-φ14 215 20-φ14 212 350 135 173 16
XU080264 215.9 311 264 25.4 295.3 12-φ8.7 231.8 12-φ8.7 85 117 54 57 6.9
XU160405 336 474 405 46 450 30-φ14 360 30-φ14 270 550 172 270 25
XU080430 380 480 430 26 462 20-φ9 398 20-M10 110 280 70 138 12
XU300515 384 646 515 86 598 18-φ26 432 18-φ26 720 1370 455 670 115

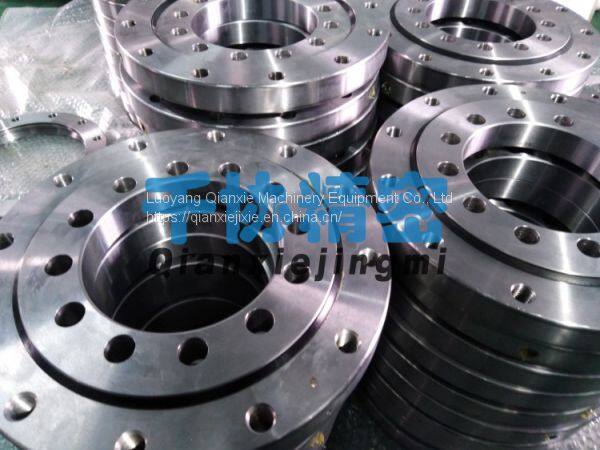

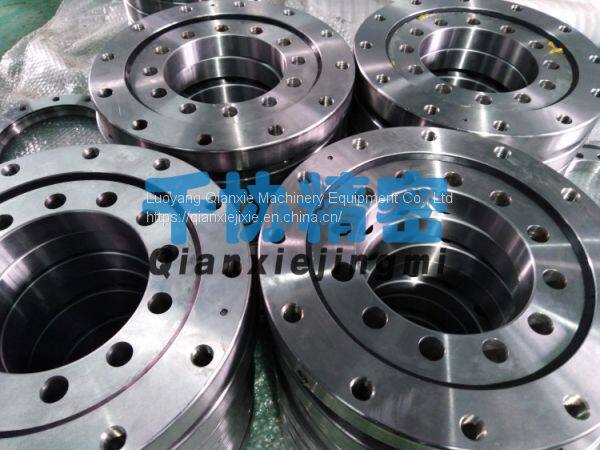

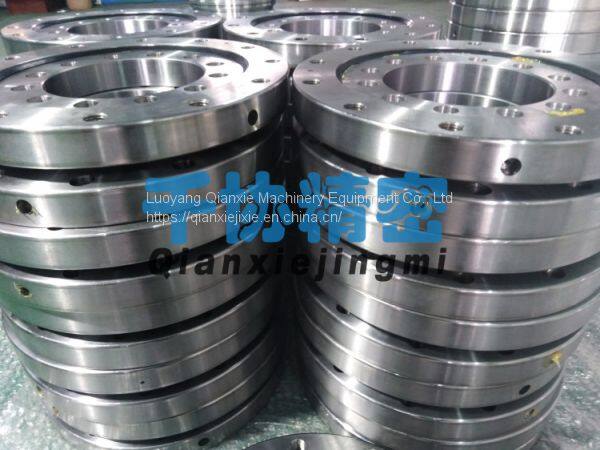

 Cross roller slewing rings related pictures

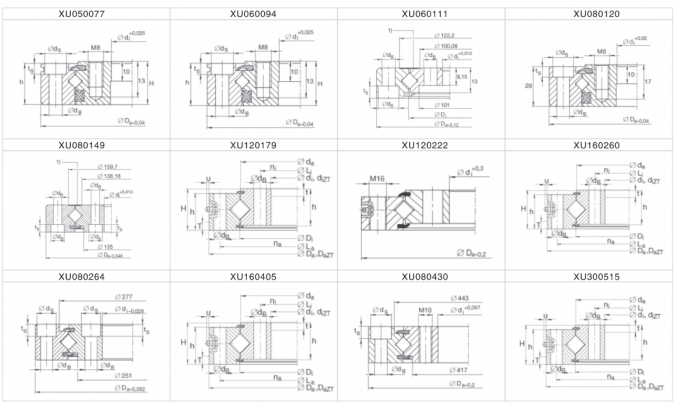

XU300515 xu series crossed roller bearing manufacturers 384X464X86mm cross bearing made in china

Main Application:
NC Machine Tools
Metal Cutting Machine Tools
Moulds and Dies,Cutters,Tools
Machinery & Materials for Processing Plastics
Machinery & Materials for Rubber Industry
Machinery Parts and Components
Packaging Machinery & Materials
Printing Machinery & Materials
Pharmaceutic Equipments
Machinery for the Food and Beverage Industries
Automatic Machinery and Equipment
Textile Machinery & Materials
Hydraulic and Pneumatic Components
Metal Forming Machine Tools
Metal Products
Welding and Cutting Machinery
Apparatus and Machinery for Chemical Industry
Woodworking Machinery & Materials
Testing Equipment
Piping Systems (Pipes, Valves, Fittings)
Steel Pipe & Tube Making Machines
Bolt, Screw & Nut Making Machines

Product Tags: XU080430 , crossed roller bearings , Slewing Rings
