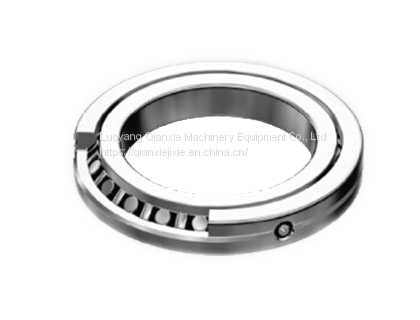

SX0118/500 Customized SX Thin-section Crossed Roller Bearings 500x620x56mm

SX0118/500 Crossed Roller Bearings 500x620x56mm High precision Robotic arm use

Crossed Roller Bearings Parameters

Model number- SX0118/500

Inner ring(mm)- 500

Outer ring(mm)- 620

Width(mm)- 56

Weight(Kg)-44

Materials- GCR15/GCR15SiMn

Precision grade- P5/P4/P2

Lubrication type- Grease lubrication

Rotating part- Inner Ring Rotation

Load direction- Multi-load

Structure- Outer ring split

Same structure Different sizes models

SX011814 SX011818 SX011820 SX011824 SX011828 SX011832 SX011836 SX011840 SX011848 SX011860 SX011868 SX0118/500

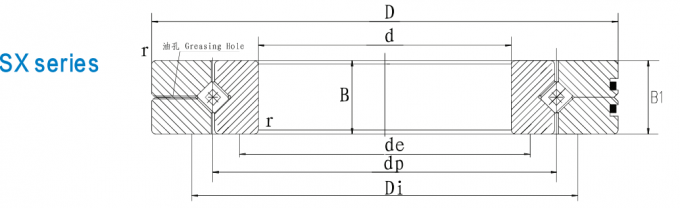

Main parameters

SX series crossed roller bearings (separatable outer-ring ,Type for inner ring rotation)

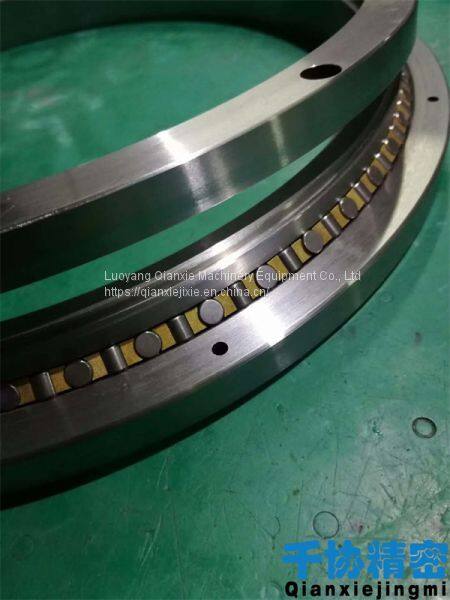

Crossed roller bearings SX are bearings for high precision applications, whose dimensions conform to ISO dimension series 18 to DIN 616. They comprise outer rings, inner rings, rolling elements and plastic spacers. The outer ring is split and is held together by three retaining rings.

Crossed roller bearings are very rigid, have high running accuracy and are supplied with normal clearance, low clearance or preload. Preloaded bearings have the suffix VSP

Drawings and other parameters ,pls contact us free, thanks
