Home > Products > Cross roller bearings > RU85 X (G) UUCC0 P4 china turntable bearings factory 55x120x15mm

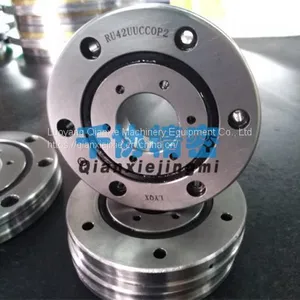

RU85 X (G) UUCC0 P4 china turntable bearings factory 55x120x15mm
- 1000 Piece / Pieces per Month
- T/T
- 7 days
- 162250 GA CYLINDRICAL ROLLER BEARING High Speed Wire Rod Rolling Mill Bearing
- F-546485.01. KL-H95 DEEP GROOVE BALL BEARING High Speed Wire Rod Rolling Mill Bearing
- Z-507333.ZL Four-row cylindrical bearings High Speed Wire Rod Rolling Mill Bearing
- Z-504547.ZL Cylindrical Roller Bearing Multi Row High Speed Wire Rod Rolling Mill Bearing
- Z-533575.ZL Four - row Cylindrical roller bearing High Speed Wire Rod Rolling Mill Bearing
- 507335.KL Deep Groove Ball Bearing High Speed Wire Rod Rolling Mill Bearing
Product Details
Brand Name: | ZLYQX | Place of Origin: | China | Model Number: | RU85 X (G) UUCC0 P4 |
Precision Rating: | P5 / P4 / P2 | Outside Diameter: | 120, | Bore Size: | 55, |
Product Description
Model number- RU85 X (G) UUCC0 P4
Inner ring(mm)- 55
Outer ring(mm)- 120
Width(mm)- 15
Weight(Kg)- 1
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring
precision level- P4,P2
Seals- can be double side (UU)
Clearance- CC0 or C0
Other models:
RU42,RU66,RU85,RU124(G)(X),RU148(G)(X),RU178(G)(X),RU228(G)(X),RU297(G)(X),RU445(G)(X)
shaft diameter | Identification number | Main dimensious | shoulder height | Basic load rating (radial) | weight | |||||||
Inner diameter | outer diameter | Roller pitch circle diameter | width | Greasing hole∮ | Chamfer R(min) | ds | Dh | C | Co | Kg | ||
d | D | DP | B/B1 | KN | KN | |||||||
35 | RU66 | 35 | 95 | 66 | 15 | 3.1 | 0.6 | 59 | 74 | 17.5 | 22.3 | 0.62 |
55 | RU85 | 55 | 120 | 85 | 15 | 3.1 | 0.6 | 79 | 93 | 20.3 | 29.5 | 1 |
80 | RU124(G) | 80 | 165 | 124 | 22 | 3.1 | 1 | 114 | 134 | 33.1 | 50.9 | 2.6 |
RU124X | ||||||||||||
90 | RU148(G) | 90 | 210 | 147.5 | 25 | 3.1 | 1.5 | 133 | 162 | 49.1 | 76.8 | 4.9 |
RU148X | ||||||||||||
115 | RU178(G) | 115 | 240 | 178 | 28 | 3.1 | 1.5 | 161 | 195 | 80.3 | 135 | 6.8 |
RU178X | ||||||||||||
160 | RU228(G) | 160 | 295 | 227.5 | 35 | 6 | 2 | 208 | 246 | 104 | 172 | 11.4 |
RU228X | ||||||||||||
210 | RU297(G) | 210 | 380 | 297.3 | 40 | 6 | 2.5 | 272 | 320 | 156 | 281 | 21.3 |
RU297X | ||||||||||||
350 | RU445(G) | 350 | 540 | 445.4 | 45 | 6 | 2.5 | 417 | 473 | 222 | 473 | 35.4 |
RU445X |
Features of RU series robotics bearings
1.Can bear comprehensive load e.g radial ,axial and overturn load .
2.Thin section bearings save installation space
3.High rotary positioning precision
4.Application area:robot arm,revolute joints,chassis etc parts.
More inforamtion ,pls contact us any time ,we will try our best to serive you.
