RB12025 Crossed Roller Bearing Factory 120X180X25mm Robot Crossed Roller Bearing

Luoyang Qianxie Machinery Equipment Co., Ltd

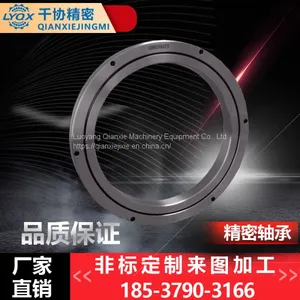

RB12025 Crossed Roller Bearing Factory 120X180X25mm Robot Crossed Roller Bearing thumbnail-1
RB12025 Crossed Roller Bearing Factory 120X180X25mm Robot Crossed Roller Bearing photo-1
US$ 100 - 180 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ZLYQX
Place of Origin:
China
Model Number:
RB12025
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ZLYQX
Place of Origin China
Model Number RB12025
Precision Rating P5,P4,P2

RB series crossed roller bearings

(outer ring division type with inner rotating), this type is the basic type of crossed roller bearings. The outer rings have two parts, and the inner ring is one integer. This RB crossed roller bearing are well applied to the situation which need high rotation accuracy on inner ring. For example, it is suitable for the rotary part of the indexing table of the tools machine.

ZLYQXspecializes in the research and development and manufacture of three series of precision rotary table bearings, crossed roller bearings and robot reducer bearings. The precision grades are P2, P4 and P5, and the size range is φ20mm - φ2000mm. The quality is same with INA, THK ,IKO products.


Crossed roller Bearings characteristics:
1. High precision: P4 precision, P2 precision
2. High rigidity: This series bearing have preload
3. High load:This series bearing can bear double-direction axial load, radial load and tilting moment
4. Small size: This series bearing can save space for machine tools

Crossed roller bearings application:

This crossed roller bearings are widely used on high precision rotary table, robot joints, rotating units, sophisticated medical equipments, and measurement instruments.


Drawings and other parameters ,pls contact us free, thanks

RB series（Outer ring division type,inner rotating）

Unit：mm

TYPE

Dimensions

Shoulder Height

Basic Load Rating（Radial）

Weight

Inner Ring

Outer Ring

Roller Pitch Diameter

Height

Chamfer

Cr

Cor

d

D

Dpw

B  B1

rmin

ds

Dh

kN

kN

kg

RB3010

30

55

41.5

10

0.6

37

47

7.35

8.36

0.12

RB3510

35

60

46.5

10

0.6

41

51.5

7.64

9.12

0.13

RB4010

40

65

51.5

10

0.6

47.5

57.5

8.33

10.6

0.16

RB4510

45

70

56.5

10

0.6

51

61.5

8.62

11.3

0.17

RB5013

50

80

64

13

0.6

57.4

72

16.7

20.9

0.27

RB6013

60

90

74

13

0.6

68

82

18

24.3

0.3

RB7013

70

100

84

13

0.6

78

92

19.4

27.7

0.35

RB8016

80

120

98

16

0.6

91

111

30.1

42.1

0.7

RB9016

90

130

108

16

1

98

118

31.4

45.3

0.75

RB10016

100

140

119.3

16

1

109

129

31.7

48.6

0.83

RB10020

150

123

20

1

113

133

33.1

50.9

1.45

RB11012

110

135

121.8

12

0.6

117

127

12.5

24.1

0.4

RB11015

145

126.5

15

0.6

122

136

23.7

41.5

0.75

RB11020

160

133

20

1

120

143

34

54

1.56

RB12016

120

150

134.2

16

0.6

127

141

24.2

43.2

0.72

RB12025

180

148.7

25

1.5

133

164

66.9

100

2.62

RB13015

130

160

144.5

15

0.6

137

152

25

46.7

0.72

RB13025

190

158

25

1.5

143

174

69.5

107

2.82

RB14016

140

175

154.8

16

1

147

162

25.9

50.1

1

RB14025

200

168

25

1.5

154

185

74.8

121

2.96

RB15013

150

180

164

13

0.6

157

172

27

53.5

0.68

RB15025

210

178

25

1.5

164

194

76.8

128

3.16

RB15030

230

188

30

1.5

173

211

100

156

5.3

RB16025

160

220

188.6

25

1.5

173

204

81.7

135

3.14

RB17020

170

220

191

20

1.5

184

198

29

62.1

2.21

RB18025

180

240

210

25

1.5

195

225

84

143

3.44

RB19025

190

240

211.9

25

1

202

222

41.7

82.9

2.99

RB20025

200

260

230

25

2

215

245

84.2

157

4

RB20030

280

240

30

2

221

258

114

200

6.7

RB20035

295

247.7

35

2

225

270

151

252

9.6

RB22025

220

280

250.1

25

2

235

265

92.3

171

4.1

RB24025

240

300

269

25

2.5

256

281

68.3

145

4.5

RB25025

250

310

277.5

25

2.5

265

290

69.3

150

5

RB25030

330

287.5

30

2.5

269

306

126

244

8.1

RB25040

355

300.7

40

2.5

275

326

195

348

14.8

RB30025

300

360

328

25

2.5

315

340

76.3

178

5.9

RB30035

395

345

35

2.5

322

368

183

367

13.4

RB30040

405

351.6

40

2.5

326

377

212

409

17.2

RB35020

350

400

373.4

20

2.5

363

383

54.1

143

3.9

RB40035

400

480

440.3

35

2.5

422

459

156

370

14.5

RB40040

510

453.4

40

2.5

428

479

241

531

23.5

RB45025

450

500

474

25

1

464

484

61.7

182

6.6

RB50025

500

550

524.2

25

1

514

534

65.5

201

7.3

RB50040

600

548.8

40

2.5

526

572

239

607

26

RB50050

625

561.6

50

2.5

536

587

267

653

41.7

RB60040

600

700

650

40

3

627

673

264

721

29

RB70045

700

815

753.5

45

3

731

777

281

836

46

RB80070

800

950

868.1

70

4

836

900

468

1330

105

RB90070

900

1050

969

70

4

937

1001

494

1490

120

RB1000110

1000

1250

1114

110

5

1057

1171

1220

3220

360

RB1250110

1250

1500

1365.8

110

5

1308

1423

1350

3970

440

Product Tags: RB12025 , Crossed roller bearing , robot crossed roller bearing
