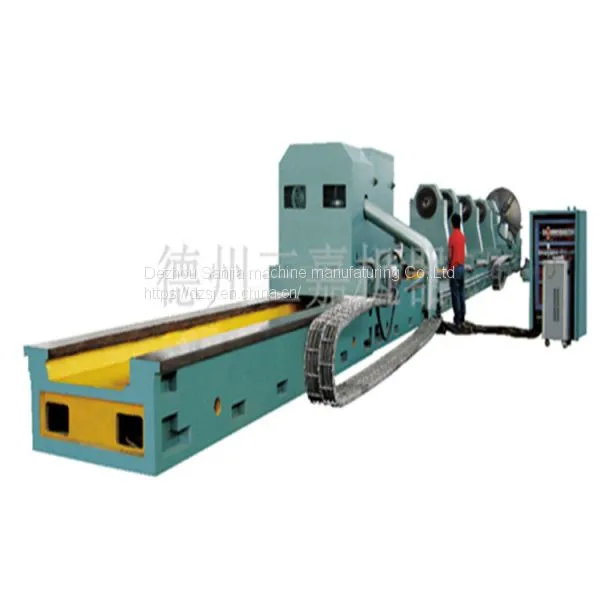

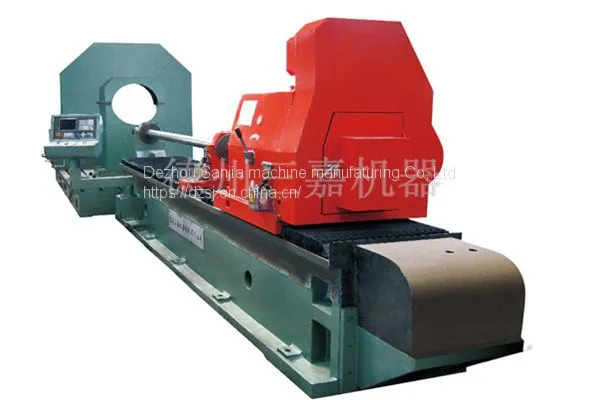

2MSK2150 CNC deep-hole powerful honing machine is suitable for honing and polishing of cylindrical deep-hole workpieces, such as various precision hydraulic fittings such as hydraulic cylinders and cylinders. Honing and polishing workpieces with stepped holes. The processing aperture precision can reach IT8-IT9 level or above, the surface roughness can reach Ra0.2-0.4μm, and local honing can be used to correct the taper, ellipticity and local aperture error of the processed workpiece. For some cold drawn steel pipes, strong honing can be performed directly. 2MSK2150 CNC deep hole powerful honing machine is an ideal equipment with high precision and high efficiency
The CNC deep hole powerful honing machine is equipped with KND CNC system, AC servo motor, and the grinding rod box adopts stepless speed regulation. The chain wheel and chain are used to realize the reciprocating motion of the honing head, which can precisely control the honing position. At the same time, the double linear guide rail has a higher service life and higher precision. The honing head adopts hydraulic constant pressure expansion, and the honing force of the sand bar is stable to ensure the roundness and cylindricity of the workpiece. The honing pressure can be adjusted as needed, and high and low pressure control is set, and coarse and fine honing conversion can be easily achieved on the console. Other configurations of the machine tool are as follows: hydraulic valves, automatic lubrication stations, etc. use famous brand products.
In addition, the CNC system, linear guide, hydraulic valve and other configurations of this CNC deep hole powerful honing machine can be selected or specified according to user requirements.
capacity |
Processing diameter range |
Φ60 ~ Φ500 |
Maximum depth of processing |
1-12m |
|
Workpiece clamping diameter range |
Φ150 ~ Φ1400 |
|
Spindle |
Spindle center height (workpiece side) |
1000mm |
Spindle center height (side of grinding rod box) |
350mm |
|
Honing box |
Speed range of spindle |
25 ~ 250r / min |
Feed |
Range of carriage rapid -moving speed |
4-18m / min |
Motors |
Main motors of honing box |
15kw(converter) |
Motor of honing box reciprocating speed |
11kw(servo) |
|
Others |
Flow of coolant pump |
100L / min |
Max pressure of honing head expanding system |
4MPa |
|
CNC |
Beijing KND (standard) SIEMENS 802 series, FANUC, etc. are optional, and special machines can be made according to the workpiece conditions |
|
