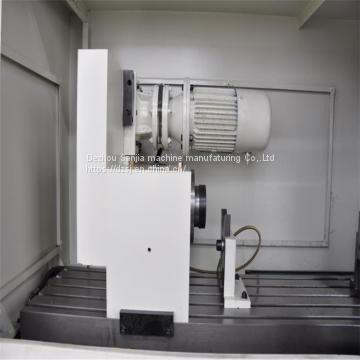

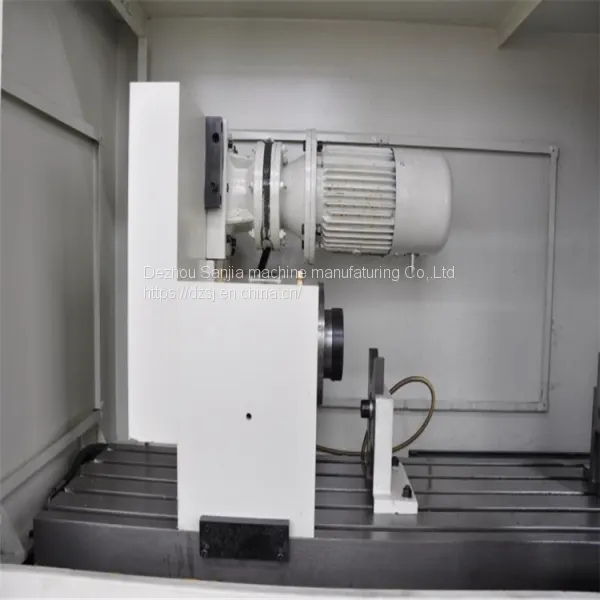

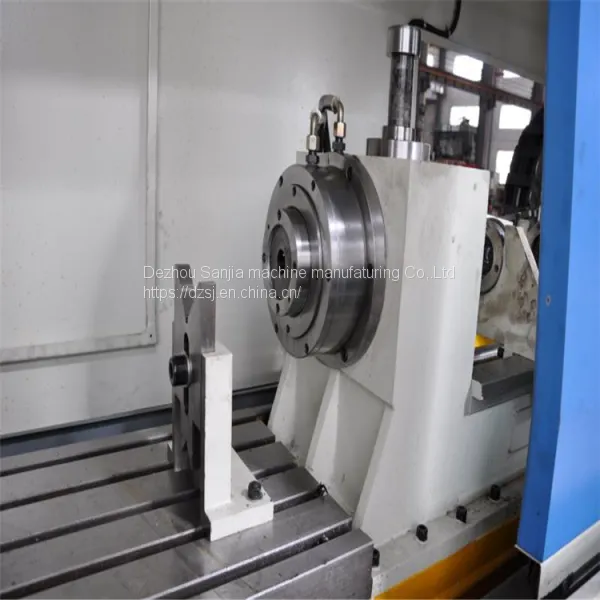

Help CenterTS2120E Deep Hole Boring Machine Special Machine Tool
Related Products
-
TS2116 Deep Hole Boring and Drilling Machine High in Precision Low PriceUS$ 42000.00 - 43000.00MOQ: 1 Set -

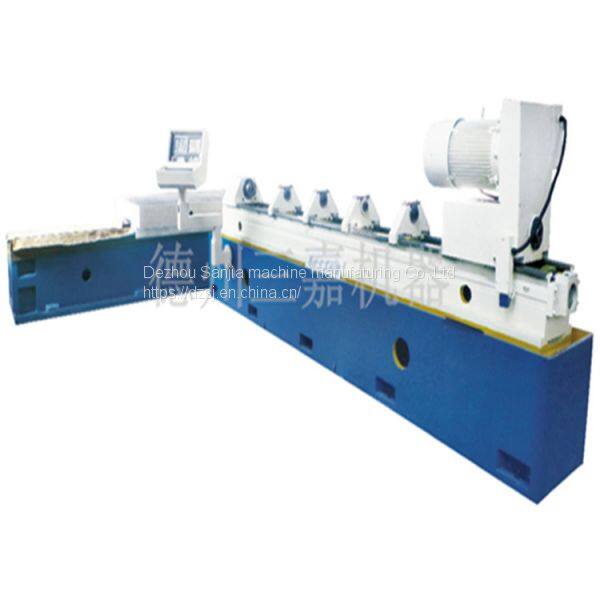

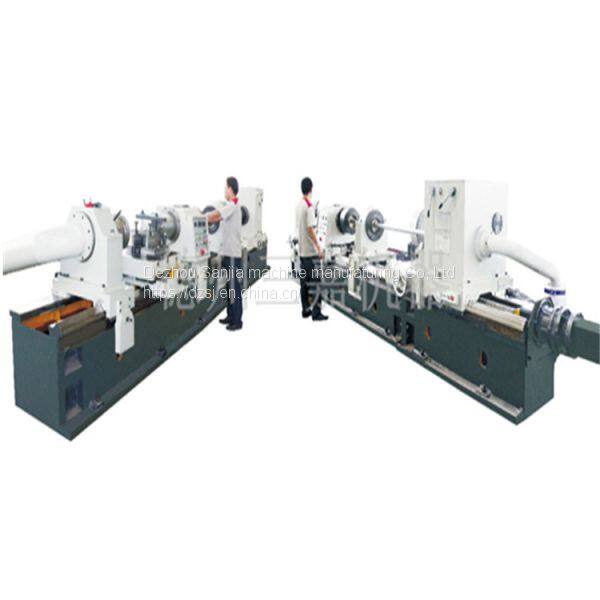

TS2120/TS2135 Deep Hole Boring and Drilling Machine High in Precision Low PriceUS$ 54000.00 - 70000.00MOQ: 1 Set
-
2MSK2150 CNC Deep-hole Honing MachineUS$ 56000 - 57000MOQ: 1 Set
-
2MSK2125/2MSK2135 CNC Deep-hole Honing MachineUS$ 42000.00 - 43000.00MOQ: 1 Set
-
ZSK2303 Series 3D CNC Deep Hole Drilling MachineUS$ 60000.00 - 65000.00MOQ: 1 Set
Product introduction:
This machine is a special equipment for processing deep-hole workpieces with special shapes, which can process various metal plates, plastic grinding tools, blind holes, step holes, etc.This machine tool can be used for drilling and boring.During the drilling process, the technology of internal chip removal is used.The machine tool has good rigidity and high precision.
This series of machines can be customized according to customer needs.
Main technical parameters of machine tools:
Drilling diameter range:Φ40mm ~ Φ80mm
Boring diameter range:Φ40mm-Φ200mm
Drilling and boring ** Depth:2,000mm
Center height (from flat guide to center of spindle):450mm
Motor of drill pipe box:N = 30kW
Headstock spindle diameter:Φ75mm
Taper hole at front end of spindle:Φ85mm, 1:20
Spindle speed range and stages:41 ~ 658r / min 12 stages
Feed speed range:5 ~ 500mm / min (stepless speed regulation)
Fast moving speed of carriage:2m / min
Feed motor:N = 4.7kW (AC servo)
Slider fast motor:N = 3kW
Cooling pump motor:N = 5.5kW (4 groups)
Hydraulic pump motor:N = 1.5kW, n = 1440r / min
Cooling system rated pressure:2.5MPa
Cooling system flow:100, 200, 300, 400l / min
Rated working pressure of hydraulic system:6.3MP
Axial force of oil feeder:68kN
Maximum tightening force of oil applicator on workpiece:20kN
