Newest CNC Horizontal Drilling & Boring Deep Hole Machine on the Cylinder
US$ 10,000 - 150,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Production Capacity:
250 Sets/year
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DBK-350 Large Horizontal CNC Deep Hole Drilling And Boring Machine For Hydraulic CylinderUS$ 10,000 - 150,000MOQ: 1 Set -
DB-500 Heavy Duty Horizontal Cylinder Deep Hole Boring MachineUS$ 50,000 - 150,000MOQ: 1 Set
-
Heavy Duty CNC Deep Hole Skiving Roller Burnishing MachineUS$ 50,000 - 300,000MOQ: 1 Set
-
DBK-500 Heavy-duty CNC Horizontal Deep Hole Drilling And Boring MachineUS$ 50,000 - 200,000MOQ: 1 Set
-
DB-200 High Precision Horizontal Deep Hole Drilling and Boring Machine for Hydraulic CylinderUS$ 10,000 - 100,000MOQ: 1 Set
Condition
New
CNC or Not
CNC
Production Capacity
250 Sets/year
Brand Name
TIMAC
Model Number
DBK-250 DBK-250A
Voltage
380V/50HZ
Power(W)
As actual situation
Dimension(L*W*H)
As actual situation
Weight
As actual situation
Certification
CE ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Newest CNC Horizontal Drilling and Boring Deep Hole Machine
DBK-250 DBK-250A
Main Outlook
Summary
Machine Summary
- CNC deep hole drilling and boring machine is mainly for the processing of cylindrical workpiece. This machine can perform the process of drilling, boring ,expanding and roller burnishing, etc.
- The machine is equipped with CNC system. Besides machining through-hole, it can also process step hole and blind hole, etc.
- The machine tool is suitable for production of special cylinder, coal cylinder, hydraulic machinery, high pressure boiler tube, petroleum, military, electrics and airspace, etc.
Main Performances
Performance and Features
- The series deep hole drilling and boring machine adopts the double rectangle guideway on the bed body, which is treated by hardening technology and has the excellent wear-resistance.
- The protection device is installed around the machine to avoid oil splash and leakage.
- The feeding system and oil feeder adopt servo motor control and gear-rack transmission to assure the safety of the tool and the workpiece, the machine is easily operated and has the good rigidity.
- The spindle motor uses AC variable frequency motor with stepless speed regulation.
- It is applicable to the process of drilling and boring. When drilling the machine adopts internal chip-removal (BTA type), the cutting oil is supplied by oil feeder to cutting area, the chip is discharged through the inner hole of drilling bar and is collected into the chip container located in the back part of the machine.
- The machine is equipped with high efficient compound tool, the skiving roller burnishing tool can be expanded and retracted automatically, it can achieve high efficient processing for oil cylinder production.
- Germany WENAROLL tool can be chosen, and the customer can also use the tool manufactured by our company.
- DBK-250 is equipped with workhead box, but isn't equipped with boring box or drilling box; DBK-250A add to boring box or drilling box on the basis of the DBK-250, so higher efficiency machining deep hole for cylindrical workpieces.
Specifications List
Technical Parameters
| Specification | Units | DBK-250 | DBK-250A |
| Drilling diameter range | mm | / | Φ30-Φ100 |
| Boring diameter range | mm | Φ40-Φ250 | Φ40-Φ250 |
| Boring depth range | mm | 1000-12000 | 1000-12000 |
| Workpiece clamping dia. range | mm | 60-350 | 60-350 |
| Spindle center height | mm | 450 | 450 |
| Headstock spindle hole dia. | mm | Φ75 | Φ75 |
| Spindle front taper hole dia. | mm | Φ85 1:20 | Φ85 1:20 |
| Spindle speed range | r/min | 60-1000 12steps | 60-1000 12steps |
| Drill box motor power | kw | / | 22 |
| Drill box spindle hole | mm | / | Φ75 |
| Drill box front taper hole | mm | / | Φ85 1:20 |
| Drill box speed range | r/min | / | 40-670 (12 steps) |
| Feed speed range (stepless) | mm/min | 5-2000 (stepless ) | 5-2000 (stepless ) |
| Feed carriage fast moving speed | mm/min | 2000 | 2000 |
| Main motor power | kw | 30 | 30 |
| Hydraulic pump motor power | kw | 1.5 | 1.5 |
| Carriage rapid motor power | kw | 3 | 3 |
| Feed motor power | Nm | 36 | 36 |
| Cooling pump motor power | kw | 5.5 (4 groups) | 5.5 (4 groups) |
| Cooling system rated pressure | MPa | 2.5 | 2.5 |
| Cooling system flow | L/min | 100, 200, 300, 400 | 100, 200, 300, 400 |
| Hydraulic system rated pressure | Mpa | 6.3 | 6.3 |
| Max. axial force of oil feeder | KN | 6.3 | 6.3 |
| Max. clamping force of oil feeder | KN | 20 | 20 |
| CNC system | Siemens 808 or KND | ||
Main Images

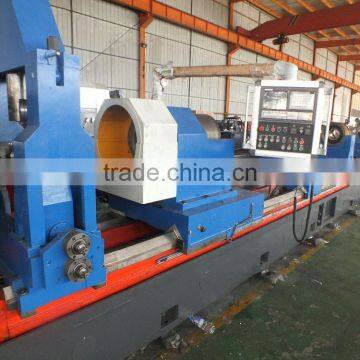

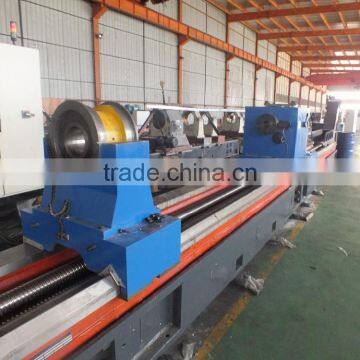

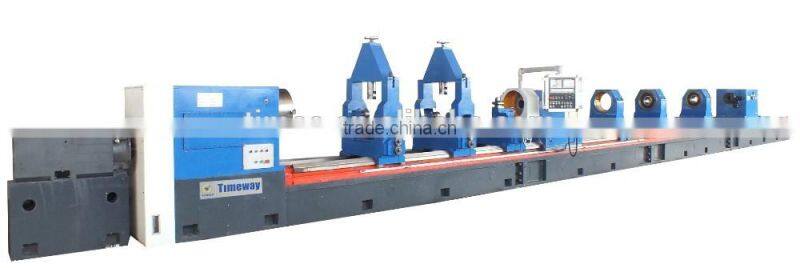

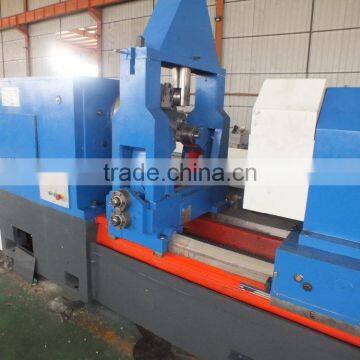

The machine consists of bed body, headstock, drilling and boring box (optional), chuck body, feed carriage, oil feeder, cooling system, chip removal device, steady rest, hydraulic system, boring bar support, motor and electrical system, CNC system, etc.
Headstock

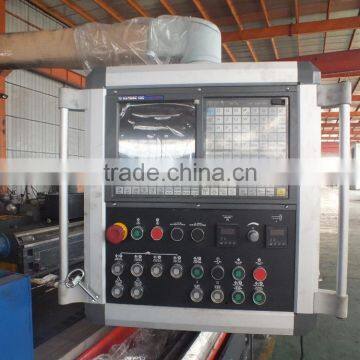

It can Choose 12 Steps speed changing or speed variable stepless. The CNC system is equipped with GSK or SIEMENS or FANUC or other CNC system.

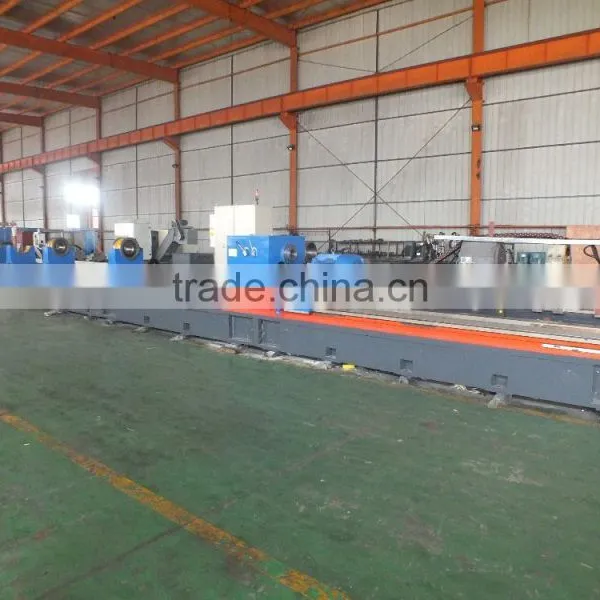

Different Specification Machine With The Real Figure
| |
| |
Packaging & Shipping
- Firstly packed by waterproof cloth and then in wooden case.
- Few parts may need to be taken down and be packed in wooden case.
- According to customer's different require, wo can adopt different packaging.
Whether CNC deep hole honing machine or CNC deep hole drilling and boring machine or CNC deep hole skiving roller burnishing machine, we all use the same standard Packagings.
