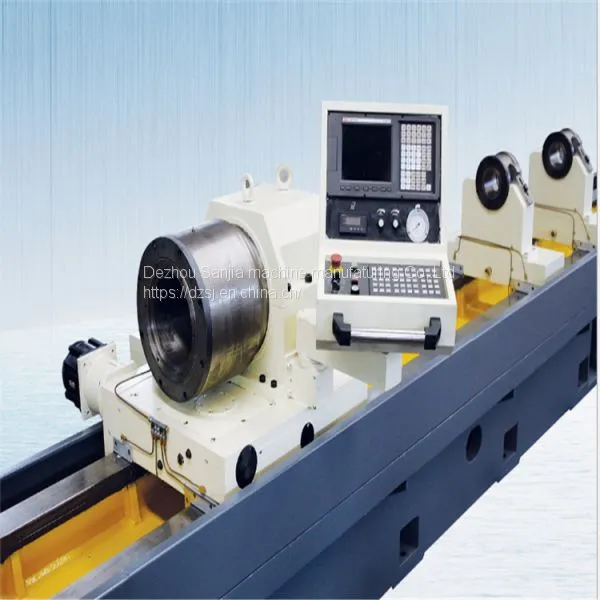

This machine tool is specialized in processing cylindrical deep-hole workpieces, such as the spindle holes of machine tools, various mechanical hydraulic cylinders, cylindrical through holes, blind holes and stepped holes of cylinders. The machine tool can not only perform drilling and boring, but also perform rolling processing. Drilling is by internal chip removal. The machine tool bed has strong rigidity and good accuracy.
The spindle has a wide speed range and the feed system is driven by an AC servo motor, which can meet the needs of various deep hole processing technologies. The hydraulic device is fastened by the hydraulic device and the workpiece is tightened, and the instrument display is safe and reliable.
This machine is a series of products, and can also provide various deformation products according to customer needs.
TS2120 |
TS2135 |
||
Capacity |
Range drilling dia |
Φ40-Φ80mm |
|
Max.boxing dia |
200mm |
350mm |
|
Max.boring depth |
1-16mm |
||
Range trepanning dia |
Φ50-Φ120mm |
||
Workpiece clamped dia .range |
60-300mm |
100-400mm
|
|
Spindle |
Height from spindle center to bed |
350mm |
450mm |
Spindle bore dia |
75mm |
||
Taper of spindle bore |
85mm,1:20 |
||
Range of spindle speed |
42-670r/min 12kinds |
||
Feed |
Feed speed range(infinite) |
5-300mm/min |
|
Carriage rapid-moving speed |
:2m/min |
||
Motor |
Main motor power |
30kw |
|
Hydraulic motor power |
1.5kw,n=1440r/min |
||
Feed motor power |
4.7kw(servo motor) |
||
Cool motor power |
5.5kw*4group |
||
Carriage rapid motor power |
3kw |
||
Others |
Guide rail width |
650mm |
|
Rated pressure of cooling system |
2.5Mpa |
||
Flow of cooling system: |
100,200,300,400L/min |
||
Oil cooler grant bearing max.axial force |
68KN |
||
Oil cooler grant max.preload for workpiece |
20KN |
||
Boring box(Optional) |
Spindle bore dia.of drilling box |
100mm |
|
Taper of drilling box |
120mm,1:20 |
||
Range of drilling box |
82-490r/min 6kinds |
||
Drilling box motor power |
30kw |
||
