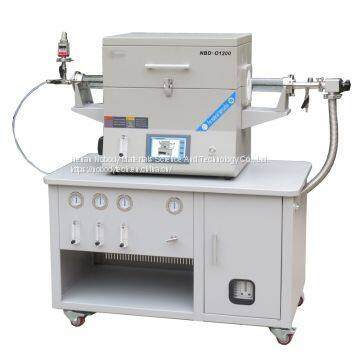

NBD Laboratory 1200C Split High Temperature Vacuum Sintering Tube Furnace

Name: NBD Laboratory 1200C Split High Temperature Vacuum Sintering Tube Furnace
Brand: nobody
SKU: 162857497
Availability: InStock

US$ 780 - 810 MOQ: 1 Set

Key Specifications

Brand Name:

nobody

Model Number:

NBD-O1200

Henan Nobody Materials Science And Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

3 days

Brand Name nobody

Model Number NBD-O1200

		As shown in the figure: here is the temperature curve of the equipment (size of the constant temperature zone: 260mm).
Control system				1. 15 temperature curves can be stored in advance to avoid the trouble caused by repeated Settings of different experimental processes; 2. The experimental process is more intuitive and the operation is more convenient; 3. Wireless control module can be selected to realize remote control; 4. It has the functions of over temperature alarm, broken couple prompt, leakage protection and so on.
Temperature precision	+/- 1 ℃
Heating element
Vacuum degree: ≤10Pa (mechanical pump)
Pressure measurement and monitoring			Mechanical pressure gauges with damping oil are used to reduce the back and forth swing of the pointer.
Gas supply system			The float flowmeter is used to control the gas velocity, which is integrated with the equipment and has been tested for air leakage before delivery.
The net weight	60KG
Precautions for equipment use	1. When the furnace temperature of the equipment is ≥300℃, do not open the furnace to avoid damage; 2. When the equipment is in use, the pressure inside the furnace shall not exceed 0.125mpa (absolute pressure) to prevent damage caused by excessive pressure; 3. When used under high vacuum (10 to the minus 3 Pa), the operating temperature of the equipment shall not exceed 800℃.
Service support	1 year warranty with lifetime support (warranty excludes consumable parts such as furnace tubes and o-rings)
