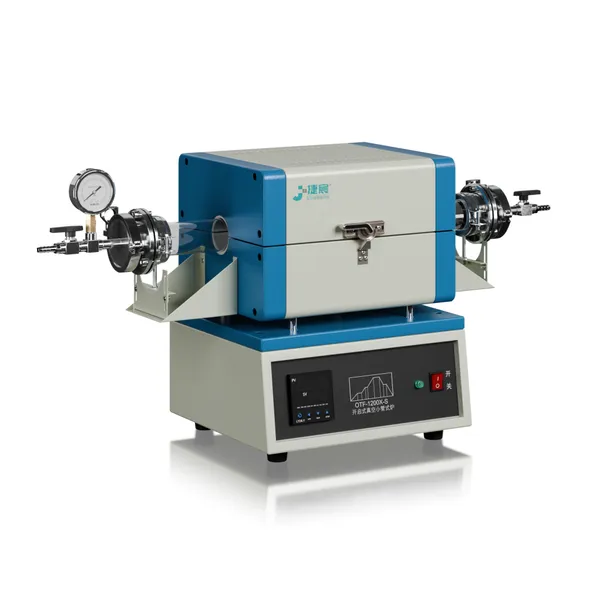

OTF-1200X-S Open Vacuum Tube Furnace
Product Features
Each original unit is equipped with quartz tube plugs to ensure higher cleanliness inside the furnace tubes
Each original unit is equipped with a flange bracket, which can prevent the pipe from rotating and increase the safety of use
Each original unit adopts a quick connect flange, which is five times faster than traditional screw fixed flanges
Parameters
Model: OTF-1200X-S
Temperature range: 100~1200 ℃
Heating area: 200mm
Constant temperature zone: 100mm
Can be equipped with furnace tubes: Φ 25 × 600mm, Φ 50 × 600mm;
Volatility: ± 1 ℃
Display accuracy: 1 ℃
Heating rate: ≤ 50 ℃/min; (Adjustable speed below 50 degrees per minute)
Whole machine power: 1.2KW
Dimensions 340 × 300 × 390mm
Furnace size Φ 60 × 200mm
Power supply: AC220V/50HZ/60HZ;
Accessories: 2XZ-2 vacuum pump and vacuum tube can be selected as needed; Equipped with a vacuum pump, it can extract gas from the furnace tube; Removing the sealing device can be used as a standard tubular electric furnace.
Furnace structure
Adopting a double-layer shell structure with an air-cooled system
The furnace uses high-purity alumina fiber as the furnace material, which can reduce energy loss
Furnace tube size
1 '' inch quartz tube (25mm outer diameter, 20mm inner diameter, 610mm long)
2 '' inch quartz tube (50mm outer diameter, 43mm inner diameter, 610mm long)
To prevent heat loss in the form of thermal radiation, the instrument is equipped with two sets of alumina tube plugs (which must be placed inside the furnace tube before heating)
In order to achieve higher cleanliness and vacuum, the furnace is equipped with quartz tube plugs when it leaves the factory
temperature control
• PID control and self-tuning regulation function
Intelligent 50 segment programmable control
• Equipped with over temperature and thermocouple alarm functions
Temperature control accuracy ± 1 ℃
K-type thermocouple
• PC control software can be installed to alert real-time data collection (needs to be purchased separately)
Mobile control
Optional mobile terminal (phone) control system, remote operation of instrument startup and temperature rise and fall programs (please call our sales team for details)
heating element
Iron chromium alloy, insulated resistance wire, with insulation coating on the surface of the resistance wire to prevent short circuit when the resistance wire collides; And it can extend the service life of the instrument
Vacuum flange
Two stainless steel vacuum flanges (with installed mechanical pressure gauges and stainless steel globe valves);
The quick connect stainless steel flange we use has a disassembly speed five times faster than traditional screw fastening flanges;
If necessary, a vacuum pump with an oil mist filter and stainless steel vacuum tube can be optionally selected; Three way connector (capable of vacuum pumping and ventilation without affecting each other);
vacuum meter
• Standard configuration: Mechanical vacuum pressure gauge with a measurement range of -0.1~0.3 Mpa, 3/8 "NPS at the port below the gauge, and a dial diameter of 60mm.
Inlet and outlet ports
The default inlet and outlet of the instrument is an 8mm stainless steel pagoda connector, which can also be replaced with stainless steel card sleeve connectors or stainless steel quick plug connectors as needed
Open the door and turn off the power
If there is a special need, the power-off function of the furnace body can be added (in principle, the furnace body does not need to be turned on when the instrument is in use)
External dimensions
• 320mm × 900mm × 420mm （W × L × H）
• With flange and total length of inlet and outlet 900mm
Net weight 18KG
Warranty period
One year warranty for the entire machine, half year warranty for heating elements, and lifetime technical support.
• Special Reminder:
The consumables, such as heating elements, quartz tubes, and sample crucibles, are not included.
Injuries caused by the use of corrosive and acidic gases are not covered by the warranty.
Application precautions
The pressure inside the furnace cannot exceed 0.02MPa
Due to the high internal pressure of the gas cylinder, a pressure reducing valve must be installed on the cylinder when introducing gas into the furnace tube. It is recommended to purchase a flow meter for safer use and to control the flow rate of the gas
When the temperature of the furnace body is higher than 1000 ℃, the furnace tube cannot be in a vacuum state. The pressure inside the furnace tube should be equivalent to atmospheric pressure and maintained at atmospheric pressure
The gas flow rate entering the furnace tube is less than 200 sccm to avoid the impact of cold atmospheric pressure on the heated quartz tube
Warning:
For sample heating experiments, it is not recommended to close the exhaust and intake valves at the flange end. If you want to close the gas valve to heat the sample, you need to always pay attention to the reading on the pressure gauge. If the pressure reading is greater than 0.02Mpa, you must immediately open the vent valve to prevent accidents (such as furnace tube rupture, flange flying out, etc.).
We do not recommend customers to use flammable, explosive, or toxic gases. If the customer's process requires the use of flammable, explosive, corrosive, or toxic gases, please take necessary protective and explosion-proof measures and operate under professional guidance. Our company is not responsible for any issues caused by flammable, explosive, and toxic gases.
