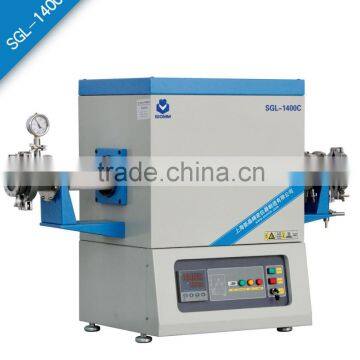

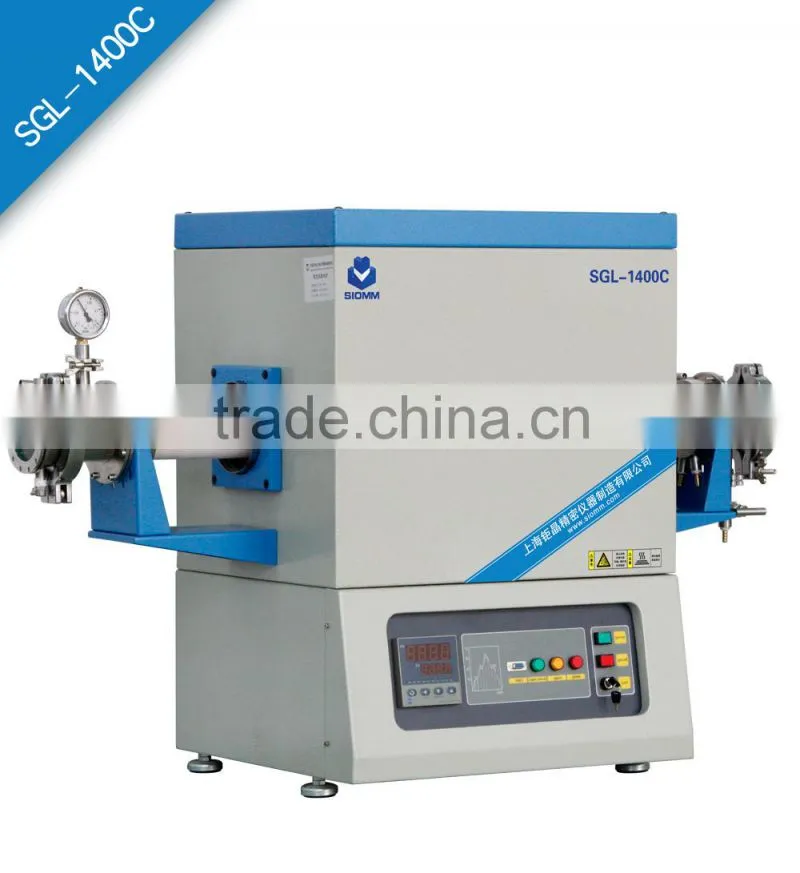

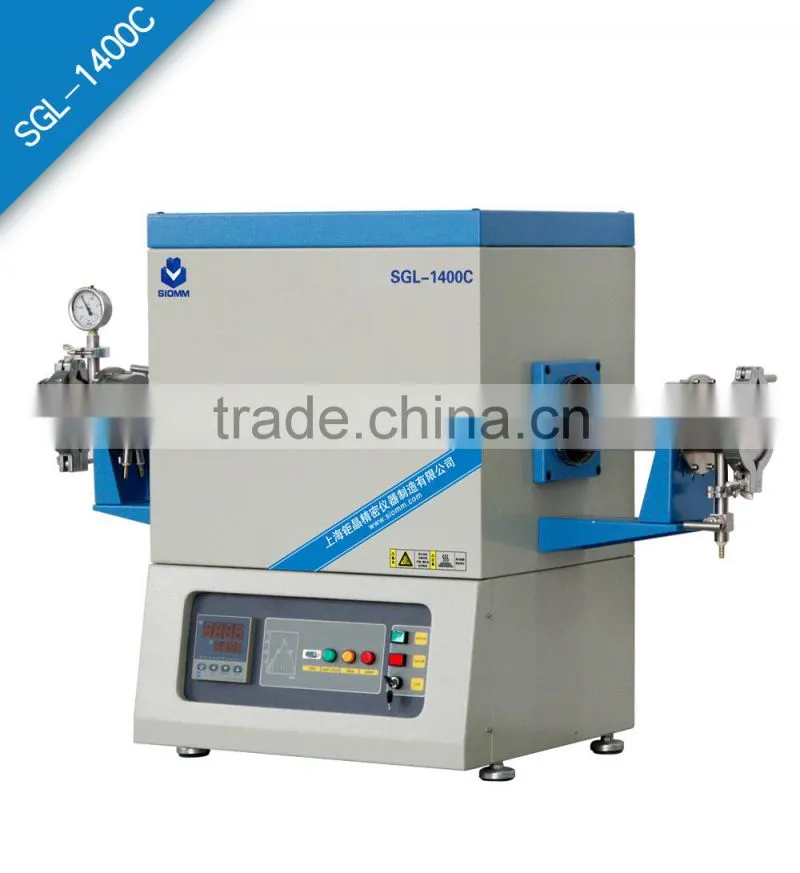

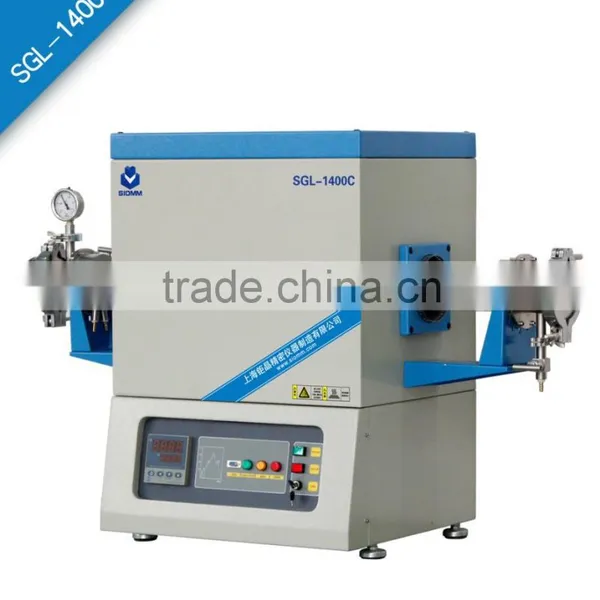

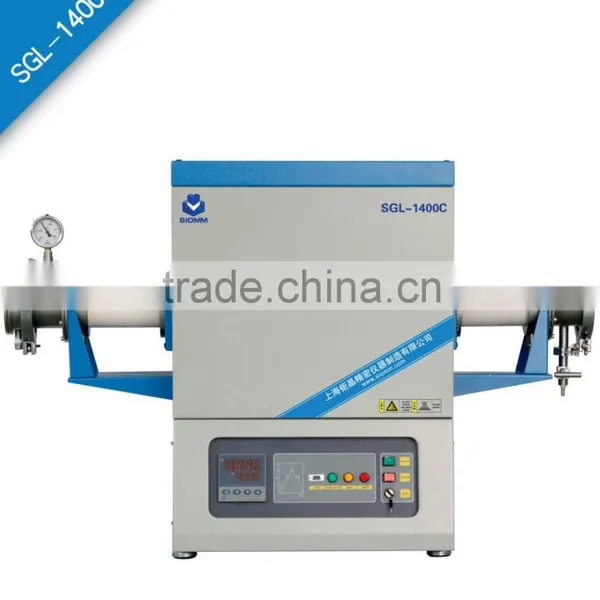

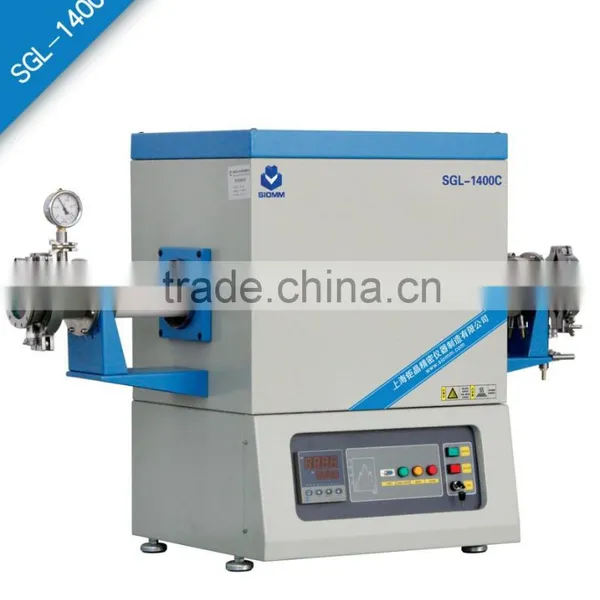

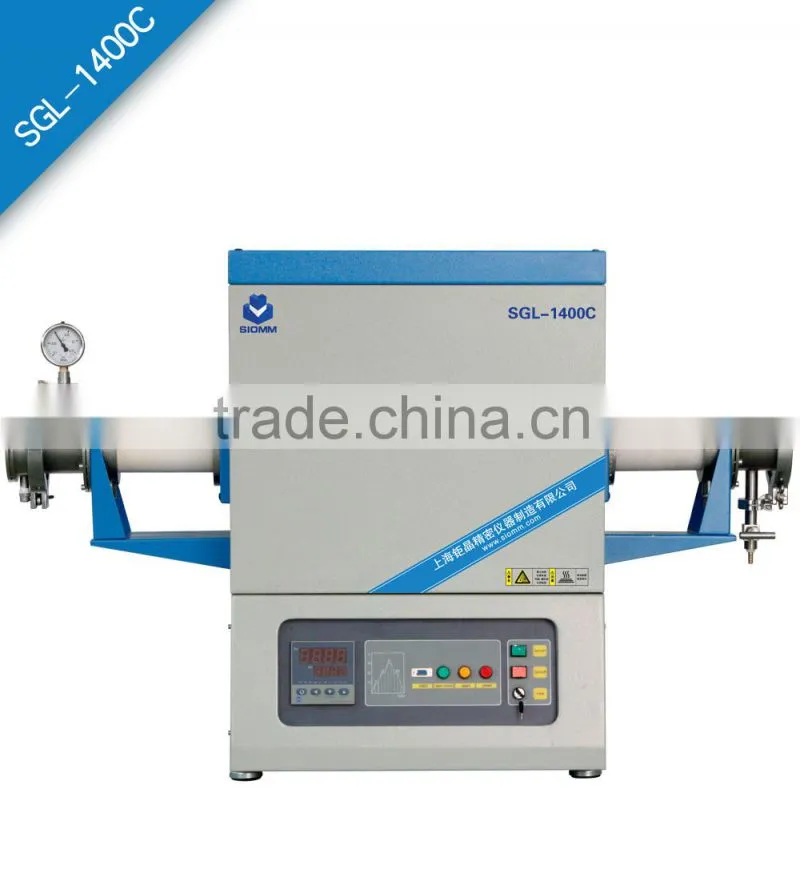

High Temperature Single Zone Tube Furnace

Specifications

1) Swedish kanthal,heating fast.
2) KF flange,fast install.
3)Single/more heating zones.
4)CE ,ISO approved.
5)1 year warant

100% Chinese manufacturer supplier High Temperature Single Zone Tube Furnace ,factory direct price,save your cost !









SGL - 1400 vacuum tube furnace with imported silicon carbide rode as heating elements, adopted double-shell



structure and intelligent program temperature control system, phase-shift trigger, SCR control, furnace chamber



adopted polycrystalline alumina fiber material. Between double furnace shell equipped with air cooling system



for fast heating and cooling, with vacuum device, can be working in protective gas or vacuum.

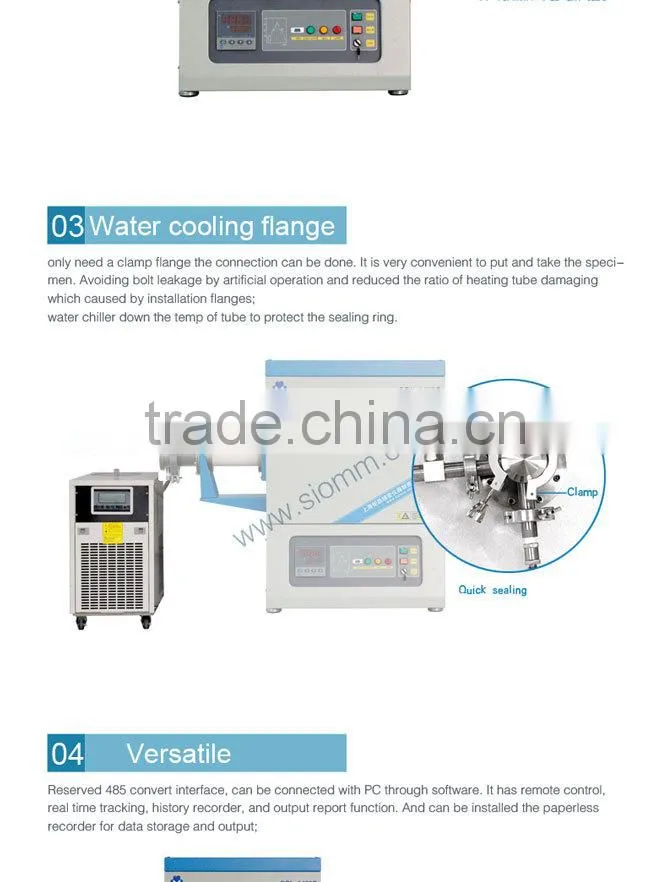

1. Adopted KF quick flange sealing, only need a clamp flange the connection can be done. It is veryconvenient to put and take the specimen. Avoiding bolt leakage by artificial operation and reduced the ratio of heating tube damaging which caused by installation flanges;

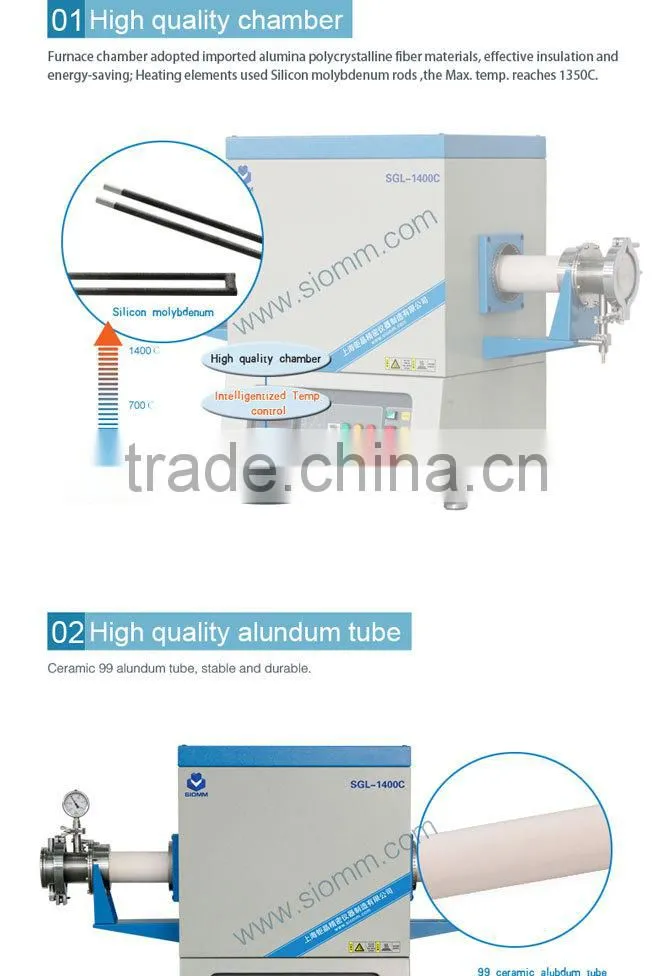

2. Furnace chamber adopted imported alumina polycrystalline fibers, effective insulation and energy saving. Imported silicon carbide as heating element, greatly improving its service life, high density imported alumina tube, durable use and not easy break;

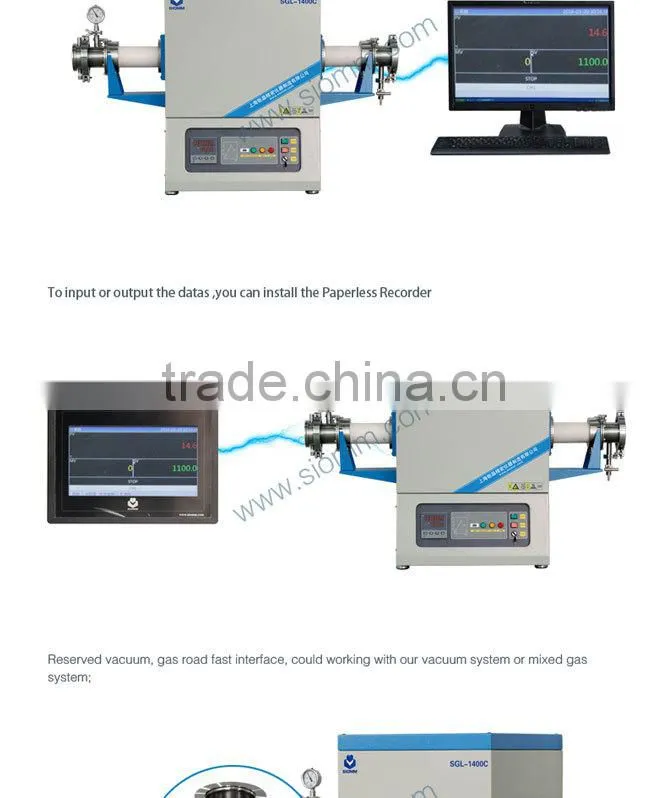

3. Reserved vacuum, gas road fast interface, could working with our vacuum system or mixed gas system;



4. Reserved 485 convert interface, can be connected with PC through software. It has remote control, real time tracking, history recorder, and output report function. And can be installed the paperless recorder for data storage and output;



5. Built - in thermocouple, real-time monitoring the temperature of the heated material;



6. Optional with the observation window flange, real-time observation of the sintered material conditions;

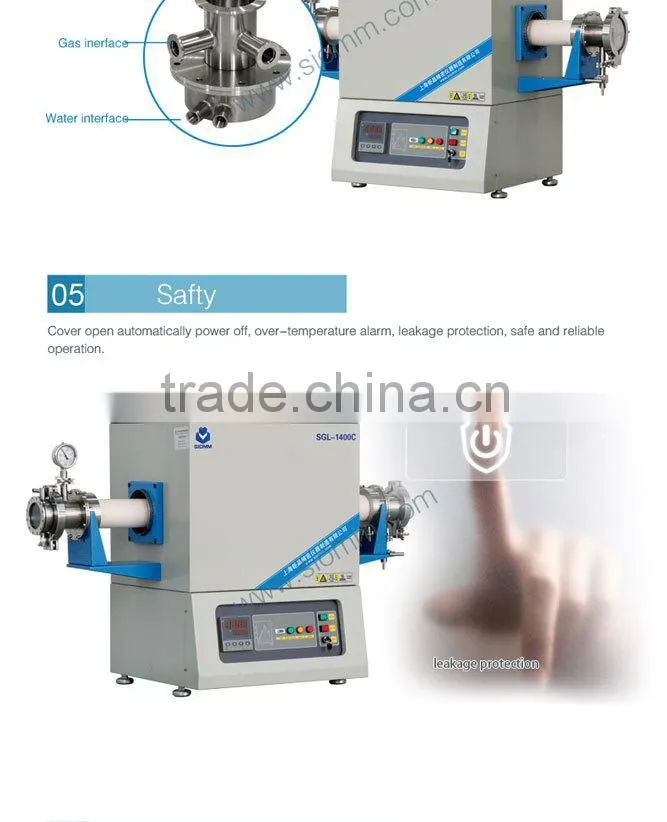

7. Over-temperature alarm and power failure, leakage protection, safe and reliable operation.











Used for universities, research institutions, industrial and mining enterprises to do high temperature sintering

atmosphere, atmosphere restoring, CVD experimental and vacuum annealing.









Model	SGL-1400	SGL-1400S
	Approved by CE certificate, ensure the safety operation of the machine. Certificate No.: GB/1067/4189/12 Issue 1
Product feature	No window	Have window
Furnace chamber	Imported high pure polycrystalline alumina fiber, excellent heat preservation
Furnace tube size	Φ60/80/100*1000mm
Heating elements	High - quality silicon carbide rod
Thermometric component	s-mode thermocouple
Temperature control mode	The temperature control system uses artificial intelligence technology, with PID control, self - tuning function, 50 the heating and cooling program
Seal mode	Stainless steel flange extrusion seal
Standard vacuum degree	≤50Pa (If need more high vacuum degree, can purchase different vacuum system)
Working temperature	≤1300℃
Max temperature	1350℃
Constant temperature accuracy	±1℃

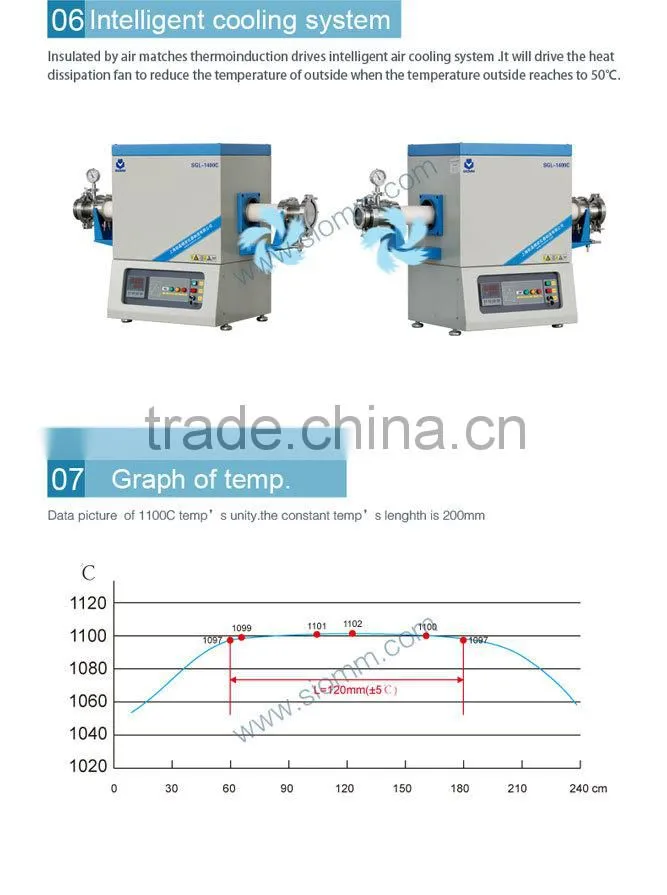

Constant temperature zone length	200mm (Customizable)
Max. Temperature rising rate	15℃/min
Recommend temperature rising rate	10℃/min
Rated power	5KW
Working power	AC220V    50HZ/60HZ
Overall size	560*510*740mm
Weight	About 80KG
Standard accessories	Sealed flanges 1 pcs, O-rings 4 pcs, alumina tube 1 pcs, vacuum pump 1 set, pipe plug 4 pcs, oven gloves, crucible tongs each 1 pcs
Optional purchase accessories	Furnace hobs; Mixed gas system; Low, medium and high vacuum system; All kinds of alumina crucibles; Alumina tube or quartz tube; Computer control software; Paperless recorder, etc.
