Summarize:

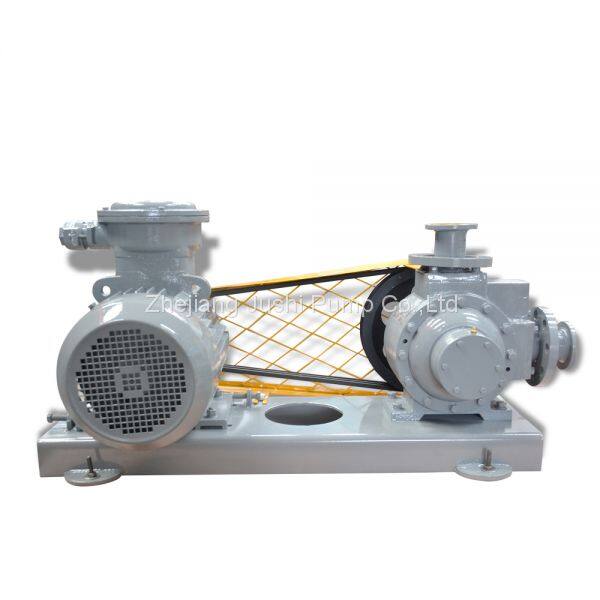

1.LPG Liquefied Petroleum Gas portable lpg transfer pump, is mainly used in delivering liquefied petroleum gas, propylene, liquid ammonia, also for irrigation or various volatile liquids with similar nature or petroleum products.
2.This pump is positive displacement vane pump, the advanced structure, the stator surface is composition of the composite curve,both ends used the mechanical seal, each fixed end are used 'O'- rings, rotary movement of the components are corresponding of metal to non-metallic, safe, reliable, so called a muti-function machine.
Product Details:
Working Principle: |
Positive Displacement type vane pump |
Main applications: |
LPG,Propylene,liquid ammonia |
Driver: |
Electric motor, diesel engine |
Power Specs: |
220V,240V,380V,400V,415V,440V 50Hz/60Hz |
Installation position: |
Horizontal |
Casing/vane material: |
Cast iron/EPGC vane |
Seal |
Mechanical seal |
Maximum drive rating: |
30KW(40HP) |
| Temperature | -40~+80℃ |
Maximum discharge-side pressure: |
1.6MPa(16bar) |
Maximum head: |
160m(525ft) |
Flow rate range: |
1~100m3/h(4.4~440US.GPM) |
Performance Data:
| Model | Rotary Speed. Rpm | Flow Rate. m³/h | Working Pressure. Mpa | Pressure Difference. Mpa | Motor Model | Motor Power. KW | Entrance Diameter. mm | Exit Diameter. mm | Tempreture Range. ℃ |
| YQB1-5 | 730 | 1 | 1.6 | 0.5 | YB90L-4 | 1.5 | 25 | 25 | -40--+80 |
| YQB2-5 | 930 | 2 | 1.6 | 0.5 | YB90L-4 | 1.5 | 25 | 25 | -40--+80 |
| YQB5-5 | 1130 | 5 | 1.6 | 0.5 | YB100L- 4 | 2.2 | 32 | 32 | -40--+80 |
| YQB10-5 | 600 | 10 | 1.6 | 0.5 | YB132S- 4 | 5.5 | 50 | 50 | -40--+80 |
| YQB10-5A | 600 | 10 | 1.6 | 0.4 | YB112L- 4 | 4 | 50 | 50 | -40--+80 |
| YQB15-5 | 780 | 15 | 1.6 | 0.5 | YB132S- 4 | 5.5 | 50 | 50 | -40--+80 |
| YQB15-5A | 780 | 15 | 1.6 | 0.4 | YB112M- 4 | 4 | 50 | 50 | -40--+80 |
| YQB25-5 | 600 | 25 | 1.6 | 0.5 | YB132M- 4 | 7.5 | 65 | 65 | -40--+80 |
| YQB35-5 | 780 | 35 | 1.6 | 0.5 | YB160M- 4 | 11 | 80 | 80 | -40--+80 |
| YQB50-5 | 551 | 50 | 1.6 | 0.5 | YB160L-4 | 15 | 100 | 100 | -40--+80 |
| YQB60-5 | 600 | 60 | 1.6 | 0.5 | YB180M- 4 | 18.5 | 100 | 100 | -40--+80 |
| YQB80-5 | 780 | 80 | 1.6 | 0.5 | YB180M-4 | 22 | 100 | 100 | -40--+80 |
| YQB100-5 | 780 | 100 | 1.6 | 0.5 | YB200L-4 | 30 | 125 | 125 | -40--+80 |

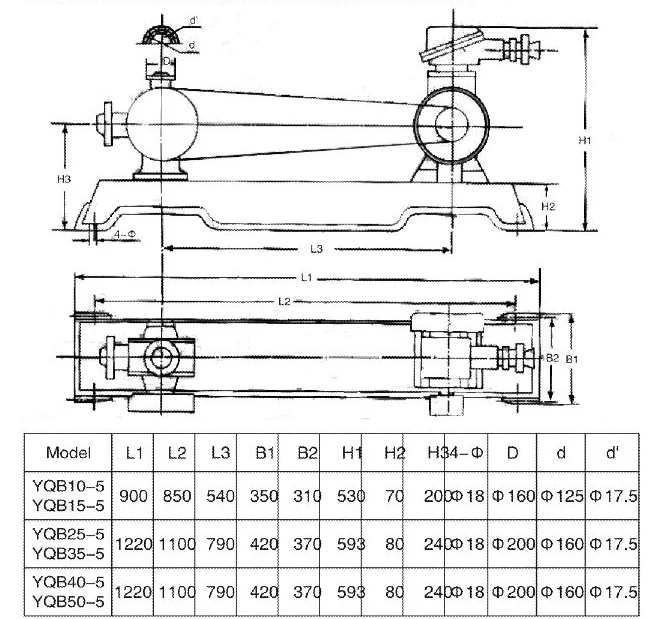

Installation Size:
