Product introduction:

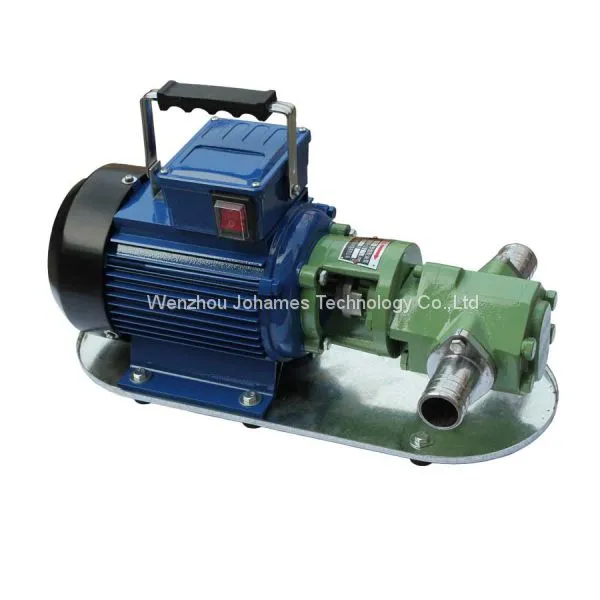

1. WCB portable gear pump oil transfer pump with a portable handle. It works with a pair of gears.
2. The oil transfer pump is with the merits of small volume, easy moving, simple structure, easy to operate, etc.
3. The cast iron pump could be used to transfer lube oil, diesel oil, fuel oil, etc. And by adopting stainless steel material, it also works for medium like non-lubricating oil, beverage and low corrosive liquid.
4. The casing & inner parts could be made of different materials according to the different requirements.
5. The portable gear pump is suitable to be used in oil drum carrier, oil refinery, electric power plant and substation and oil depot, petrochemical industry, etc.
Product details:
Working Principle: |
Double Gears |
Main applications: |
Oil |
Driver: |
Electric motor |
Power Specs: |
380/415 V 3phase; 220/240 V 1phase;50hz/60hz,etc |
Max. permissible fluid temperature: |
120°C(248°F) |
Type of connection: |
Thread, Quick couple. |
Installation position: |
Horizontal |
Casing parts material: |
Cast iron, Stainless Steel |
Shaft seal type: |
Rubber seal, Mechanical seal, etc |
Free passage: |
00 mm |
Maximum viscosity: |
300C.S.T |
Maximum drive rating: |
1.1kW(1.5HP) |
Maximum caliber: |
25mm(1inch) |
Maximum discharge-side pressure: |
0.3MPa(3bar) |
Maximum suction |
5m(16.4ft) |
Flow rate range: |
30-100L/min(7.9-26.4US.GPM) |
Performance data:
Model |
Material |
Caliber |
Capacity |
Head |
Motor power |
Voltage |
(mm) |
(L/min) |
(m) |
(W) |
(Phase) |
||
WCB-30 |
Cast iron |
20 |
30 |
30 |
370 |
1ph/3ph |
WCB-50 |
20 |
50 |
30 |
550 |
1ph/3ph |
|
WCB-75 |
25 |
75 |
30 |
750 |
1ph/3ph |
|
WCB-100 |
25 |
100 |
30 |
1100 |
1ph/3ph |
|
WCB-30P |
Stainless steel |
20 |
30 |
30 |
370 |
1ph/3ph |
WCB-50P |
20 |
50 |
30 |
550 |
1ph/3ph |
|
WCB-75P |
25 |
75 |
30 |
750 |
1ph/3ph |
Send Inquiry to This Supplier
