Introduction:

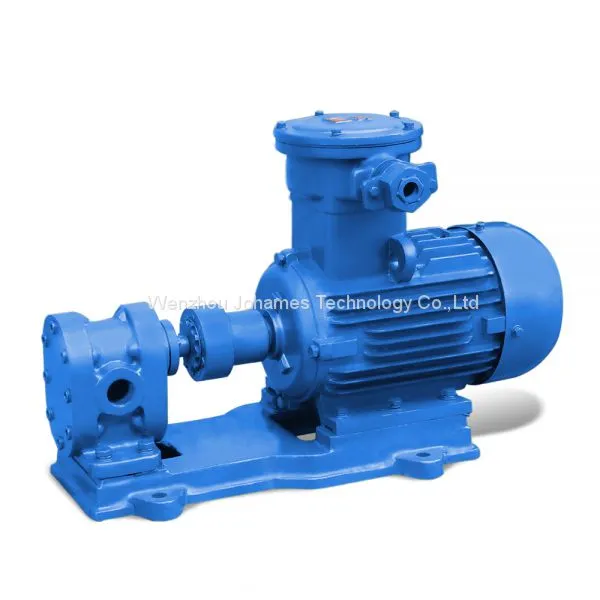

1. high pressure gear pump is simple and compact structure, easy operation.
2. The electric fuel pump is mainly used for the delivery of the lubricating liquid without solid particles and fibers.
3.The stainless steel gear pump can transfer the non-lubricating oil, drink and low corrosive liquid. And with bronze gear, pump can transport low-flash one such as gasoline, benzene, etc.
4. This series of oil pump can equipped with ordinary motor or explosion-proof motor with same specifications to suit clients requirements.
Products details:
Working Principle: |
Double Gears |
Main applications: |
Oil |
Driver: |
Electric motor, diesel motor. |
Power Specs: |
220/380/415V 3phase; 110/220/240V 1phase; 50hz/60hz,etc |
Max.permissible fluid temperature: |
80°C |
Type of connection: |
Flange, Thread, Quick Coupled. |
Installation position: |
Horizontal |
Casing parts material: |
Cast iron, Stainless Steel |
Shaft seal type: |
Mechanical seal; Rubber seal |
Free passage: |
00 mm |
Maximum viscosity: |
1.5X103CST |
Maximum drive rating: |
11KW(15HP) |
Maximum caliber: |
80mm(3inch) |
Maximum discharge-side pressure: |
2.5Mpa(25bar) |
Flow rate range: |
1.08-29m3/h(4.8-127.6US.GPM) |
Performance data:
Model |
Motor power |
Capacity |
Pressure |
Speed |
Suction |
Caliber |
(KW) |
(m3/h) |
(Mpa) |
(r/min) |
(m) |
(mm) |
|
2CY-1.08/10 |
0.75 |
1.08 |
1 |
1420 |
5 |
20 |
2CY-1.08/25 |
1.5 |
1.08 |
2.5 |
20 |
||
2CY-2.1/10 |
1.5 |
2.1 |
1 |
25 |
||
2CY-2.1/25 |
3 |
2.1 |
2.5 |
25 |
||
2CY-3/10 |
2.2 |
3 |
1 |
25 |
||
2CY-3/25 |
4 |
3 |
2.5 |
25 |
||
2CY-4.2/10 |
3 |
4.2 |
1 |
32 |
||
2CY-4.2/25 |
5.5 |
4.2 |
2.5 |
32 |
||
2CY-7.5/10 |
4 |
7.5 |
1 |
40 |
||
2CY-7.5/25 |
7.5 |
7.5 |
2.5 |
40 |
||
2CY-12/10 |
7.5 |
12 |
1 |
50 |
||
2CY-12/25 |
11 |
12 |
2.5 |
50 |
||
2CY-18/3.6 |
5.5 |
18 |
0.36 |
75 |
||
2CY-29/10 |
11 |
29 |
1 |
75 |
