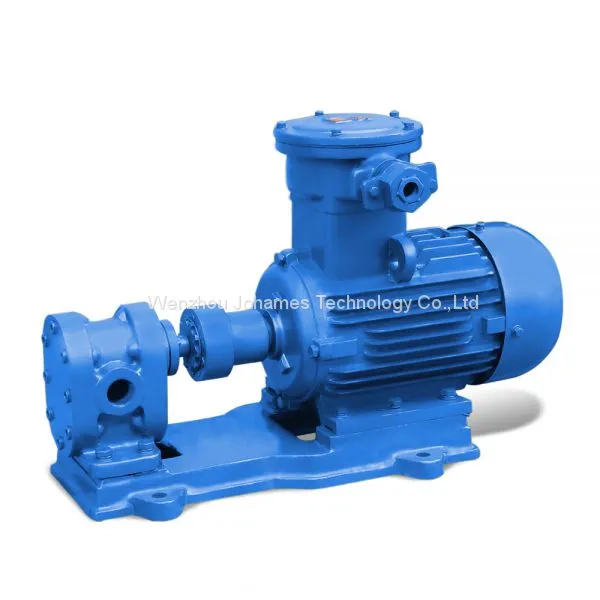

2CY GEAR OIL PUMP

Main applications:

Oil

Driver:

Electric motor, diesel motor.

Power Specs:

220/380/415V 3phase; 110/220/240V 1phase; 50hz/60hz,etc

Max.permissible fluid temperature:

80°C

Type of connection:

Flange, Thread, Quick Coupled.

Installation position:

Horizontal

Casing parts material:

Cast iron, Stainless Steel

Shaft seal type:

Mechanical seal; Rubber seal

Free passage:

00 mm

Maximum viscosity:

1.5X103CST

Maximum drive rating:

11KW(15HP)

Maximum caliber:

80mm(3inch)

Maximum discharge-side pressure:

2.5Mpa(25bar)

Flow rate range:

1.08-29m3/h(4.8-127.6US.GPM)

(KW)

(m3/h)

(Mpa)

(r/min)

(m)

(mm)

2CY-1.08/10

0.75

1.08

1

1420

5

20

2CY-1.08/25

1.5

1.08

2.5

20

2CY-2.1/10

1.5

2.1

1

25

2CY-2.1/25

3

2.1

2.5

25

2CY-3/10

2.2

3

1

25

2CY-3/25

4

3

2.5

25

2CY-4.2/10

3

4.2

1

32

2CY-4.2/25

5.5

4.2

2.5

32

2CY-7.5/10

4

7.5

1

40

2CY-7.5/25

7.5

7.5

2.5

40

2CY-12/10

7.5

12

1

50

2CY-12/25

11

12

2.5

50

2CY-18/3.6

5.5

18

0.36

75

2CY-29/10

11

29

1

75
