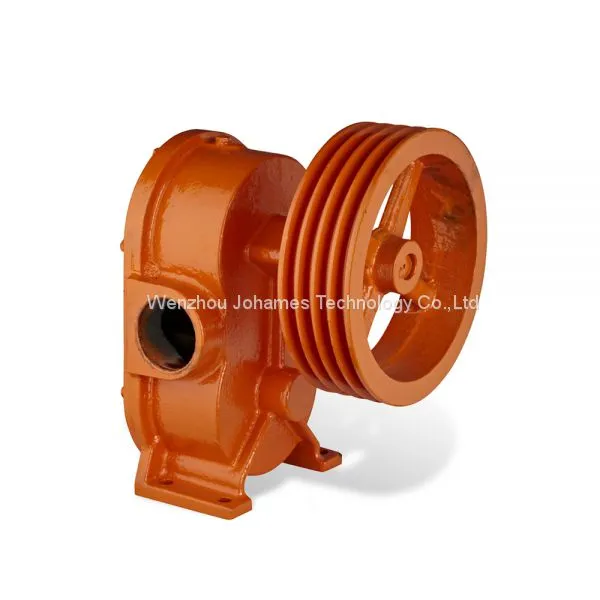

Help CenterBP GC Cast Iron Belt Pulley Drive Small Gear Oil Pump
Related Products
-
High Pressure Gear PumpUS$ 80 - 2000MOQ: 1 Set -
KCB,2CY Large Output Low Pressure Diesel Fuel Gear Pump Gear Oil PumpUS$ 80 - 2000MOQ: 1 Set
-
KCB Stainless Steel Gear Oil Pump for Crude /Diesel /Heavy/Lubrication OilUS$ 80 - 2000MOQ: 1 Set
-
Marine Gear Pump for Oil TransferUS$ 80 - 2000MOQ: 1 Set
-
KCB Stainless Steel Oil Transfer Gear PumpUS$ 80 - 2000MOQ: 1 Set
Summarize:
1. BP GC Cast iron belt pulley drive small gear pump for oil is simple, compact and light.
2. The belt pulley can protect pump from overloading in working and is suitable for the delivery of wide center-to-center distance.
3. The belt pulley driven gear pump could be used to transfer oil or equivalent lubricating fluid without solids and fiber.The stainless steel pump also could transfer chemical liquid, and the one with bronze gear is designed for low flash point oil, such as gasoline specifications.
4. By adopting belt pulley drive, the speed of pump could be adjusted low. It could be used for high viscosity medium. And the stainless steel pump also could transfer chemical liquid.
5. To the differect clients' demand, we design it into two material: GC type and BP type.
C type is made of cast iron, using to transit water, kerosene, white oil, heacy oil and machine oil etc.
B type is adopt barss gear, using to pump sea water, brine, weak acid and other chemistry liquid
Product details:
| Working Principle: | Double Gears |
| Main applications: | Oil |
| Driver: | Electric motor, diesel engine. |
| Power Specs: | 220/380/415V 3phase; 110/220/240V 1phase;50hz/60hz,etc |
| Max. permissible fluid temperature: | 70°C(158°F) |
| Type of connection: | Thread |
| Installation position: | Horizontal |
| Casing parts material: | Cast iron, Stainless Steel |
| Shaft seal type: | Shaft seal ring |
| Free passage: | 00 mm |
| Maximum viscosity: | 1.5X103C.S.T |
| Maximum drive rating: | 5.5 kW(7.5HP) |
| Maximum caliber: | 80mm(3inch) |
| Maximum discharge-side pressure: | 0.3MPa(3bar) |
| Maximum suction: | 3m(9.8ft) |
| Flow rate range: | 16-320L/min(4.2-84.5US.GPM) |
Performance Data:
Model |
Type |
Inlet/Outlet |
Speed |
Capacity |
Pressure |
NPSH |
Power |
Weight |
| Model | GC-13 | GC-20 | GC-25 | GC-40 | GC-50 | GC-80 |
|
Inlet/Outlet (inch) |
1/2 | 3/4 | 1 | 1 1/2 | 2 | 3 |
|
Capacity (L/m) |
21 | 37 | 55 | 121 | 242 | 455 |
|
Head (m) |
10 | 10 | 15 | 15 | 15 | 15 |
|
Speed (rpm) |
400rpm | |||||
|
Power (kw) |
0.2 | 0.4 | 0.75 | 1.5 | 3 | 5.5 |
|
Weight (kg) |
4 | 6 | 11 | 35 | 45 | 82 |
| Material | Cast iron | |||||
