220VAC 1500rpm 4.3KW 16A Embroideries Machine Synchronous Brushless Direct ac Motor Servo
- T/T Credit Card
You May Like
-
1.5kw 220v 2500rpm Digit Actus Power Direct Drive Eps2 ac Industri Servo Motor for Embroideri Machine
-
2000w 220v 2500rpm Mecapion Harga High Torque ac Servo System Motor Sgmg Brake Ethercat Kit
-
380VAC 1500rpm 4.3KW 10A Wholesale Mige Digital Inova Brushless Motor Panason ac Servo Motor Control
-
220v 1kw 1000rpm Mige Brushless Hollow Inova Brushless ac Servo Derive Motor for Print Machine
-
1.5kw 220v 1500rpm Digit Actus Power Direct Drive Eps2 ac Industri Servo Motor for Embroideri Machine
-
2600w 220v 2500rpm Mecapion Harga High Torque ac Servo System Motor Sgmg Brake Ethercat Kit
Product Details

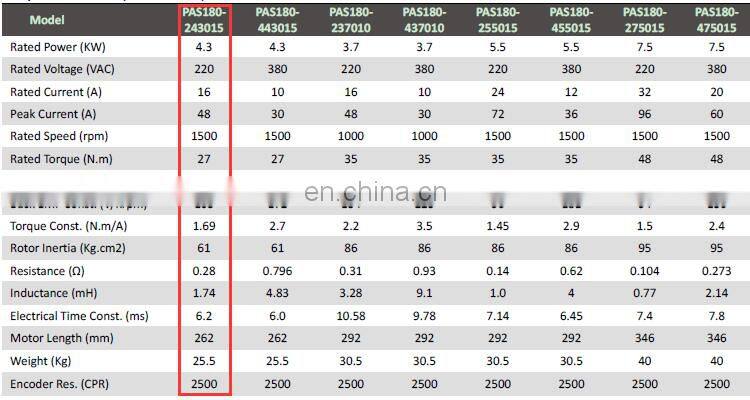

| Brand Name | PrimoPal | Place of Origin | Shanghai, China | |
| Model Number | PAS180-243015 | Type | Servo Motor | |
| Frequency | 50/60HZ | Efficiency | IE 3 | |
| Certification | CCC, CE, ROHS, UL, VDE | |||
| Phase | Three-phase | Protect Feature | Waterproof |
Product Description
PrimoPal offers a wide selection of high-performance brushless AC servo motors, with power ratings from 200 W to 7.5 KW, output torque from 0.16 Nm to 67 Nm, and maximum speed of up to 6,000 rpm. These motors are designed for outstanding efficiency, reliability and electromagnetic immunity, particularly suitable for positioning tasks in machine automation with demanding requirements for dynamics and stability. The combination of PrimoPal’s servo motors and servo drives delivers an optimal solution for high performance motion applications. Besides, custom motor winding, various feedback devices, permanent magnet brake adders, electromagnetic brake adders and mechanical modifications are also available.
| Operating Temperature | -20°C ~ 50°C |
| Insulation Class | Class B (130°C) |
| Safety Grade | IP65 |

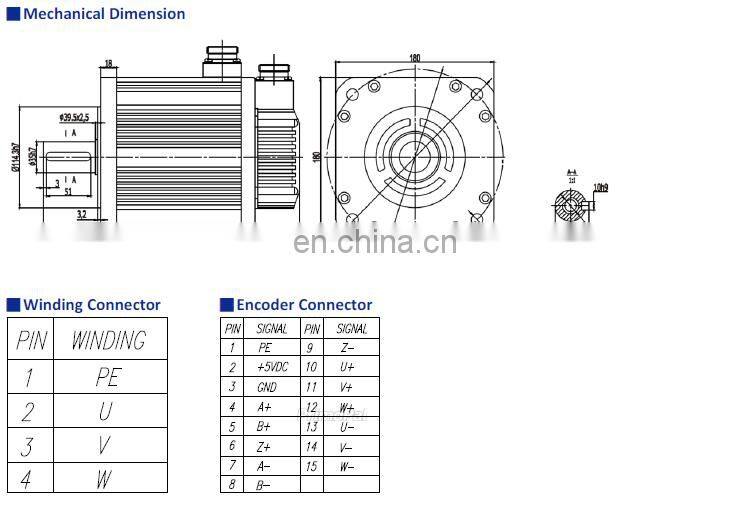

AC servo motor without brake
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

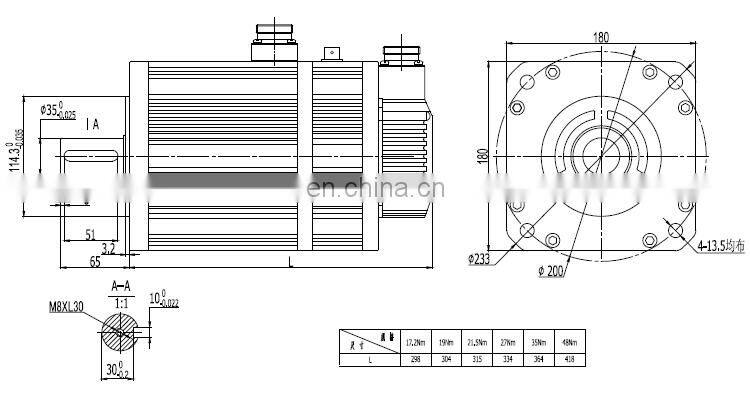

AC servo motor with brake
