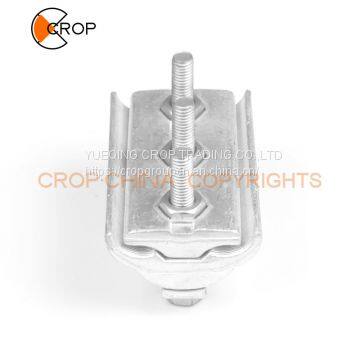

PARALLEL GROOVE CLAMP
Description
Designed to connect two parallel bare conductors. Conductors can be aluminum alloy or aluminum steel reinforced for main and copper for tap side.
Material

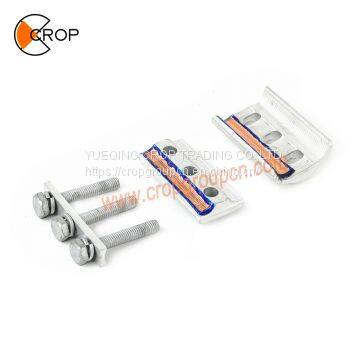

Connector bodies made of corrosion resistant, high strength aluminum alloy 99.5 with hot forged bimetallic sheet.
Bolts: DIN 933, steel 8.8, dacromet; Nut: DIN934, dacromet, pressed into lower part
Pressure pad: aluminum alloy; Spring washer: DIN127, steel.
Conical washer/Spring washers: Steel, DIN6796 corrosion-protected, dacromet
Stainless steel A2 bolts and nuts available according to order.
Features
Pressure pad ensuring uniform pressure along the clamp.
Cross-grooved clamp channels of universal clamp type improve mechanical pullout strength and electrical contact.
| Models | PG010-1A(CA) | PG010-2A(CA) | PG010-1B(CA) | PG010-2B(CA) |
| Main Line(mm²) | Al 10-120 | Al 50-240 | Al 10-120 | Al 50-240 |
| Service Line (mm²) | Cu 10-120 | Cu 50-240 | Cu 10-120 | Al 50-240 |
| Bolt No. | 2 | 2 | 3 | 3 |
| Remarks | Al to Cu | Al to Cu | Al to Cu | Al to Cu |
| Models | PG661-11 | PG661-12 | PG661-21 | PG661-22 | PG661-23 |
| Main Line(mm2) | Al 16-70 | Al 25-150 | Al 16-70 | Al 25-150 | Al 35-200 |
| Service Line (mm2) | Cu 6-50 | Cu 10-95 | Cu 6-50 | Cu 10-95 | Cu 25-185 |
| Bolt No. | 1 | 1 | 2 | 2 | 2 |
| Remarks | Al to Cu | Al to Cu | Al to Cu | Al to Cu | Al to Cu |
| Models | PG660-31 | PG660-32 | PG660-33 | PG660-34 |
| Main Line(mm2) | Al 16-70 | Al 25-150 | Al 35-240 | Al 35-300 |
| Service Line (mm2) | Cu 6-50 | Cu 10-95 | Cu 25-185 | Cu 35-240 |
| Bolt No. | 3 | 3 | 3 | 3 |
| Remarks | Al to Cu | Al to Cu | Al to Cu | Al to Cu |
If you want to know about other products, please contact us...
Website: /
/
FAQ
Q1: Why choose CROP?
*1. CROP is a professional manfacture-Exporter of wide range of accessories used in power line installation and equipment building industries.
*2. CROP has certification, such asCE, ISO, ROHS and so on.
*3. We always follow the principle of the supremacy of customers, providing customers with high-quality products and great service.
Q2: How will you do OEM?
We support customized. If you want to customized,pls supply the Drawing or Photo or Samples.
Q3: What's the MOQ for CROP product?
There is no MOQ, we deal with any quantity of your order.
Q4: Can I have a sample order?
Yes, we can provide you sample for free.
Q5: What's the payment term?
T/T, L/C, Western Union and paypal.
