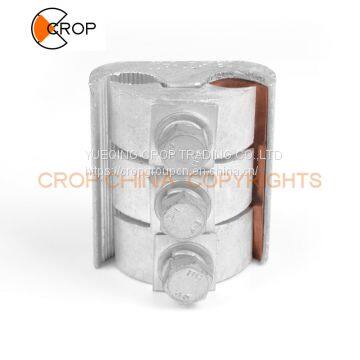

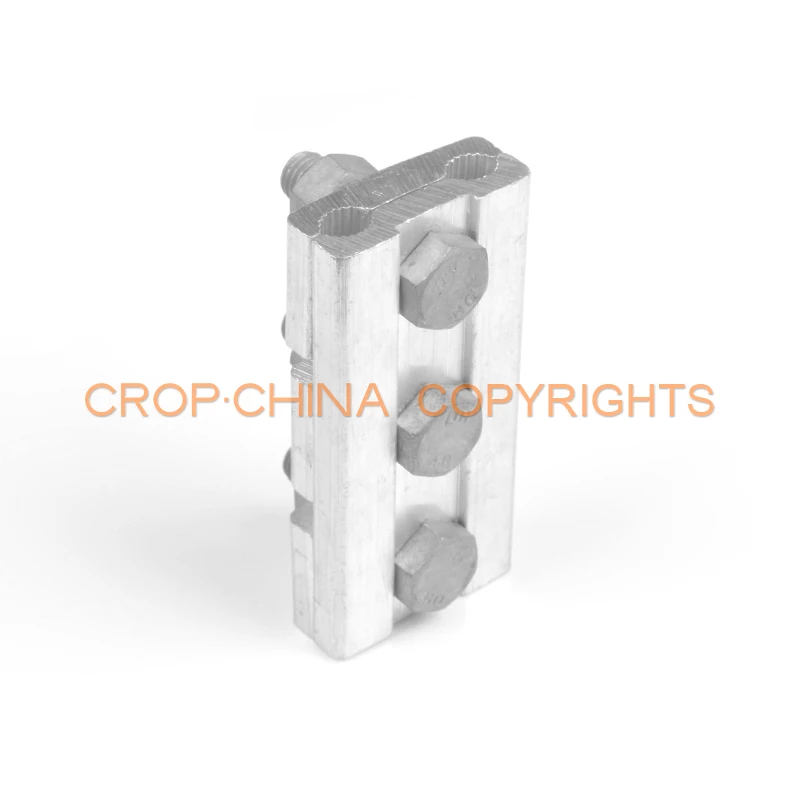

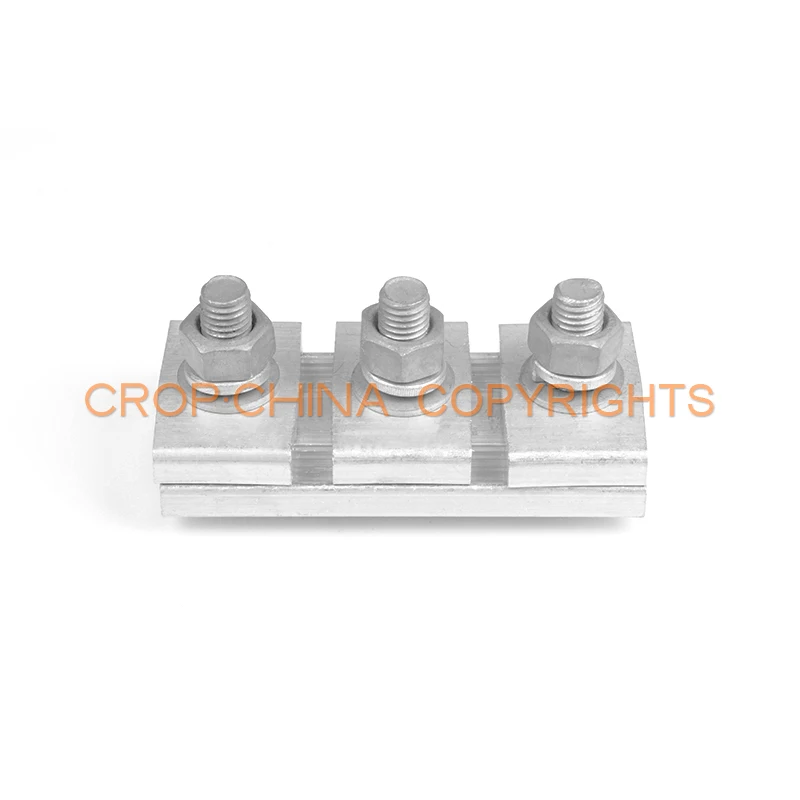

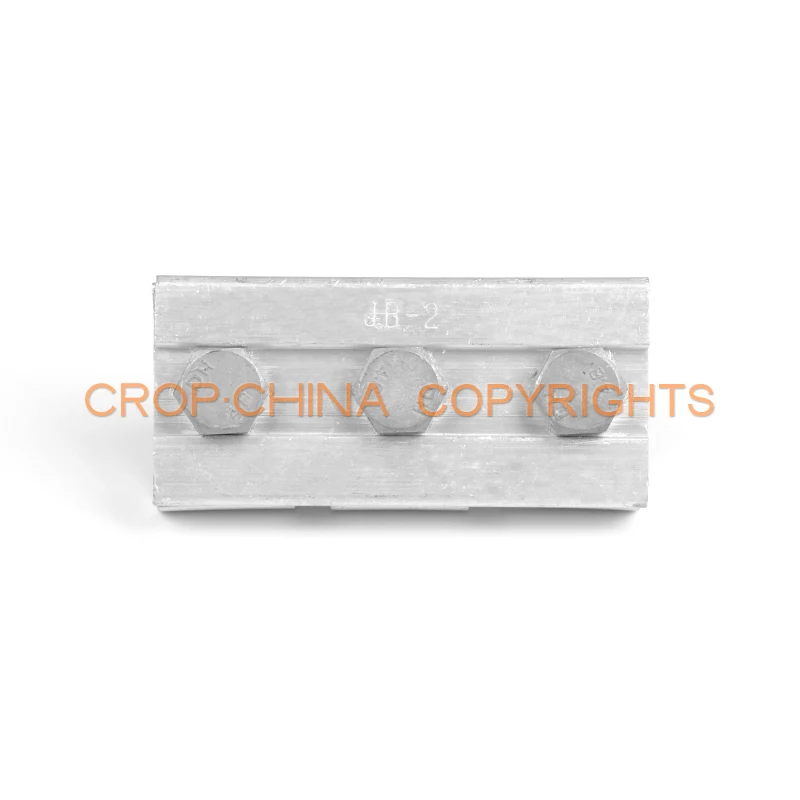

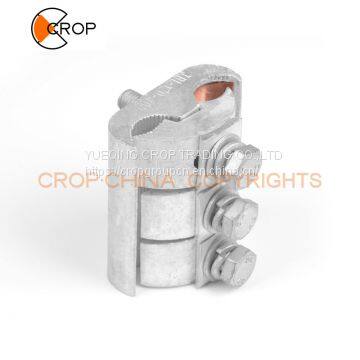

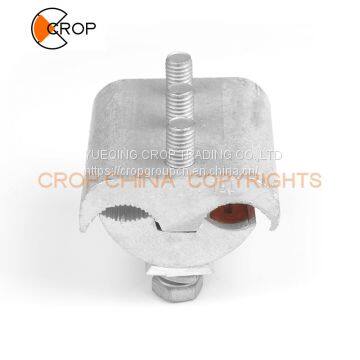

JBL Aluminum parallel groove clamp for overhead line wire connecting
Description
Parallel Groove Clamps is Designed to connect two parallel bare conductors. Conductors can be aluminiumalloy or aluminium steel reinforced.Used for splicing or reparing conductor and ground wire of overhead transmission lines
Available specification for cable cross-section:16-300mm2
Bolt type: Single/Double/Tripal
Material
Connector bodies made of corrosion resistant, high strength aluminium alloy 99.5
Bolts: DIN 933, steel 8.8, dacromet; Nut: DIN934, dacromet, pressed into lower part
Pressure pad: aluminum alloy; Spring washer: DIN127, steel
Conical washer/Spring washers: Steel, DIN6796 corrosion-protected, dacromet
Stainless steel A2 bolts and nuts available according to order.
Features
Pressure pad ensuring uniform pressure along the clamp Cross-grooved clamp channels of universal clamp type improve mechanical pullout strength and electrical contact.

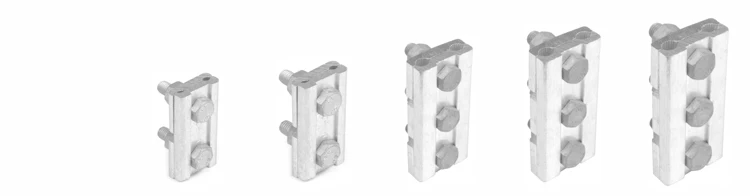

| Models | JB-0 | JB-1 | JB-2 | JB-3 | JB-4 |
| Main Line(mm2) | 16-25 | 35-50 | 70-95 | 120-150 | 185-240 |
| Service Line (mm2) | 16-25 | 35-50 | 70-95 | 120-150 | 185-240 |
| Bolt No. | 2 | 2 | 3 | 3 | 3 |
| Remarks | Al to Al | Al to Al | Al to Al | Al to Al | Al to Al |
