Mobile Installation:
Mobile installation is mainly used for quick and easy deployment and for simple and temporary applications.

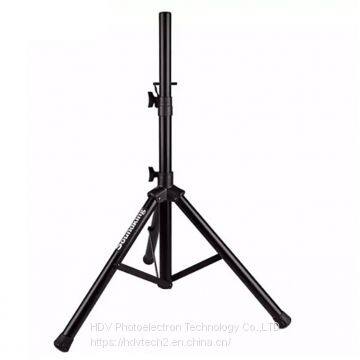

The universal 1/4 interface port is used to install the face recognition device on the tripod for the purpose of fast deployment.
Installation and Fixing:

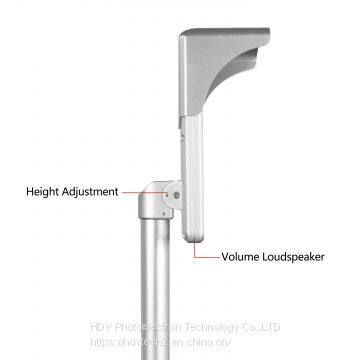

The installation diagram is shown at below.You can quickly set up by adjusting the height of the tripod and the angle of the tripod head.











1.Specification:

lEnables live body recognition

lEnables track of the movement of a human face in backlit environment

lPatent owned facial recognition algorithm, able to recognize faces with high accuracy, response time<0.5s

lBuilt-in high-performance NPU

lLinux operating system, high reliability

lMTBF>50,000h

lCapable of storing 24,000+ facial image and up to 50,000 capture record

lOperating temperature: 15℃~35℃

lSupports multiple interfaces(I/O \WG26\WG34\RJ45)

l8 inches HD display, image display without delay

lAutomatic gain and auto white balance, able to exhibit the true color of the image

lBuilt-in black light level sensor, low-light recognition is in high accuracy

l2D/3D noise reduction anti-fog technology, low-light recognition smoothening capability

lSupports intelligent light filled setting



2.Thechnical Specifications:

n Detection Parameters



n Facial  Recognition Parameters

Item	Specification
Detecting Range (Vertical)	0.8~2.2m,adjustable angle
Face angle	Horizontally 30° Vertically 30°
Response time	<0.5 seconds
Storage Capacity	50,000 capture record
Facial image record capacity	24,000 pieces
Face recognition accuracy	>99.25%

n Camera Parameters

Item	Specification
Camera	Binocular camera,Visible,Supports live body detection
Effective MegaPixels	210, (1920*1080)
Minimum illumination	multicolor 0.01Lux @F1.2(ICR); Black and white 0.001Lux @F1.2 (ICR)
Signal to noise ratio	≥50db(AGC OFF)
Wide dynamic	120db, ISP algorithm face partial exposure
Remote device upgrade	Support

n Interface

Item	Specification
Digital output	1 digital output
Network interface	1 RJ45 10M / 100M adaptive Ethernet port
USB interface	1  USB
WG	1 WG in,1 WG out
Interface	RS485 port x 1

n General  Parameters

Item	Specification
Processor	Dual-core processor+1G memory +16G Flash
OS	Linux
Image Sensor	1/2.8" Progressive Scan CMOS
Speaker	Standard and able to pre-record content
Operating Temperate	Indoor recommended 0~90% RH
Antistatic	Contact ±6KV,Air ±8KV
Power requirement	DC12V/2A
Power consumption	20W(MAX)
Dimension	252(L)*136(W)*26(H)mm
Screen size	8 inches
Column Aperture	36mm
Weight	1.7KG

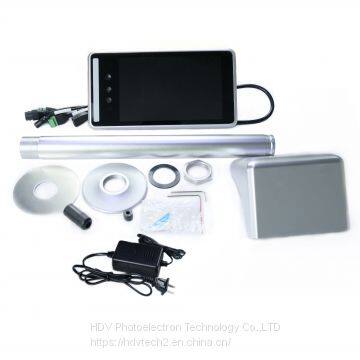

n Model  Type:

Product name	Model	Description
FaceTick PRO	RNR-FT-P158	Device
Wall mount	910C-0X0000-030	Fitting
Pole stand	910C-0X0000-029	Fitting
RecoFace V1.0	RN-GF-E15-01A	Platform software

3.Important  Ssfety  Information

This section presents important information intended to ensure safe and effective use of this product.

Read this section carefully and store it in an accessible location.



4.Safety  Precautions

lWhen the device cannot be exited or terminated, you can reset and restart it by powering off and on again.

lWhen using the device, try to avoid hard objects from impact and knock, and do not scratch with sharp objects to prevent damage to the device casing.

lWipe the display and panel lightly with a soft cloth and other materials. Avoid using water and detergent.

lIn the installation and use of this product, all national and regional electrical regulations must be strictly observed.

lIf the equipment does not work properly, please do not disassemble it for repair, otherwise it will affect the equipment warranty.

lAvoid extreme high temperature (or low temperature), high humidity, vibration, radiation, chemical corrosion and other harsh or extreme environments during installation and use.
