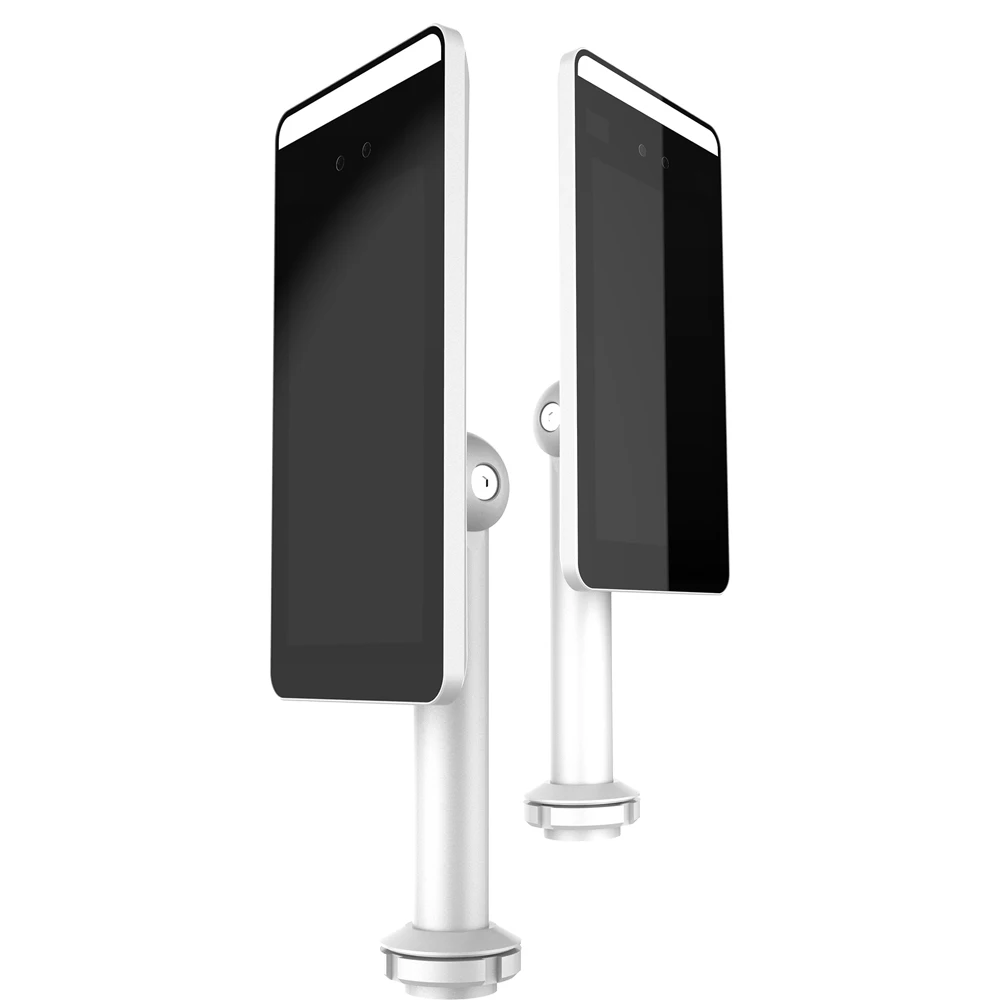

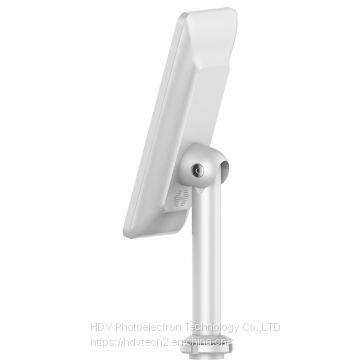

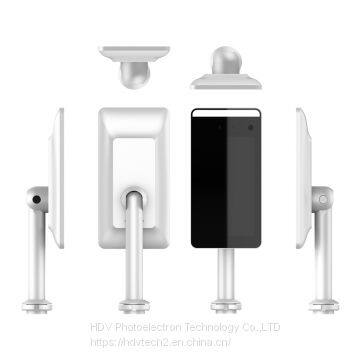

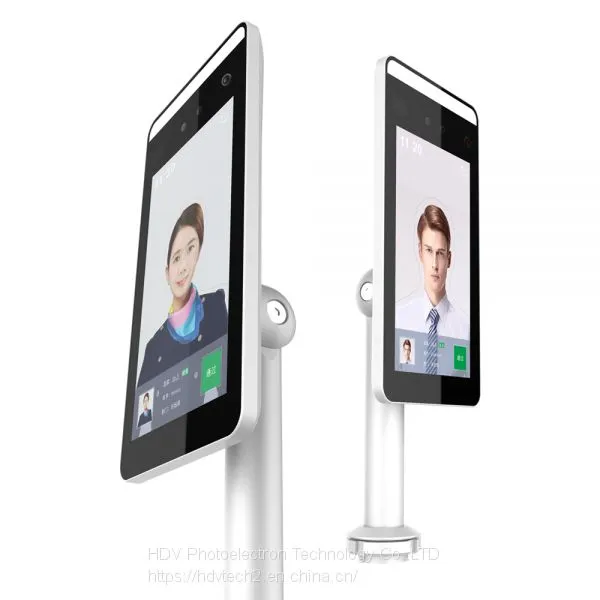

Access Control System Measurement Thermal Camera Body Automatic Face Recognition Temperature Camera
US$ 500 - 700
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
OEM/ODM
Place of Origin:
China
Model Number:
FK02GYW
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
Wall-Mounted Quick Identity Verification Attendance Record Function Human Body Temperature Measurement CameraUS$ 580 - 728MOQ: 10 Pieces -
Mobile Installation 1080P Screen Resolution Measurement Detector Camera Masked Face Recognition Body Temperature InstrumentUS$ 580 - 728MOQ: 10 Pieces
-
Floor-Standing Support Multiple Languages Attendance Function Face Recognize Smart Temperature Thermal CameraUS$ 580 - 728MOQ: 10 Pieces
-
N901 Thermal Imaging Sensor Camera Temperature Scanner Fever Detection AR Police Smart AI HelmetUS$ 6300 - 6700MOQ: 1000 Pieces
-
Dual Band 2.4G&5G FTTH 4GE+4WIFI+1POTS+1USB 5dBi 4 Antennas AC XPON GPON ONU For ZTE HuaweiUS$ 23 - 36MOQ: 2 Pieces
Brand Name
OEM/ODM
Place of Origin
China
Model Number
FK02GYW
Temperature Range
36-42 ℃
Usage
Indoor
Theory
Infrared Thermometer
Accuracy
± 0.3℃
Specification:
| Model: | FK02GYW |
| System | |
| Main processor | MX3520 |
| operating system | Embedded LINUX |
| RAM | DDR3 512MB |
| ROM | EMMC 8GB |
| Display | |
| size | 7 inch IPS HD screen |
| Resolution | 736*1280 |
| camera | |
| Sensor | 1/5 GC2145 |
| Resolution | NIR 600*800 15fps |
| Lens | 2.4mm |
| Face library capacity | Supports up to 30,000 sheets |
| Recognize face angle | (Daytime) vertical viewing angle 58-60, horizontal viewing angle 35; (living body) vertical viewing angle 48-50, horizontal viewing angle 36 |
| Fault tolerance | Ordinary glasses and short sea surface retention time have no effect on recognition |
| expression | Under normal circumstances, slight expressions do not affect recognition |
| reaction speed | About 200ms |
| Facial exposure | stand by |
| Local storage | Support 25,000 records |
| Recognition area | Full screen recognition |
| Upload method | TCP, HTTP, MQTT |
| Network features | |
| Network protocol | IPv4, TCP / IP, HTTP |
| Interface Protocol | no |
| Safe mode | Authentication username and password |
| Alarm linkage mode | Voice broadcast, abnormal upload |
| System Upgrade | Support remote upgrade |
| Other | / |
| Hardware accessories | |
| Auxiliary light | fill light, white light fill light |
| Identification module | no |
| speaker | Support voice broadcast for successful recognition results |
| Network module | no |
| Hardware interface | |
| Network Interface | RJ45 10M / 100M Network Adaptation |
| Alarm input | no |
| Alarm Output | no |
| RS485 | stand by |
| TF card slot | no |
| HDMI | no |
| Wiegand interface | Support Wiegand 26, 34, 66 protocols |
| Hard reply button | stand by |
| Tamper switch | no |
| Conventional | |
| shell | Metal body and bracket, plastic panel, IP66 |
| Operating temperature | -20 ° C ~ 60 ° C |
| Working humidity | 10% -90% non-condensing |
| Storage temperature | -40 ° C ~ 70 ° C |
| Storage humidity | 5% -95% non-condensing |
| Protection class | / |
| Supply voltage | DC12V |
| Power consumption | ≤ 12 W |
| Size (mm) | 219 (W) * 111 (H) * 21.5 (T) |
| Bracket size (mm) | φ25 * 189 |
| Installation method | Desktop installation / floor support installation |
