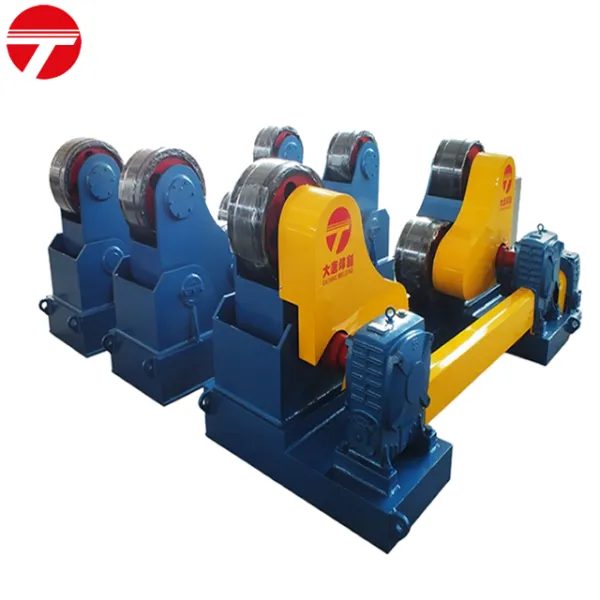

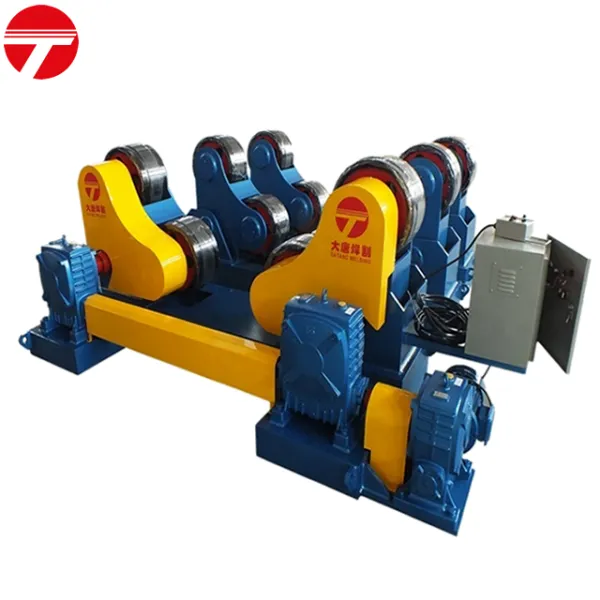

Self Aligning Welding Rotator
Our welding rotators are designed on the basis of international advantage, they are required equipment of pressure vessel manufacturers. These rotators are applied in both handling and automatic welding, widely to use to make pressure vessel and pipeline.
Self-aligning welding rotator can adjust the wheels’ angle automatically as per the diameter of workpieces. This series rotators can satisfy jobs with different diameter, the speed adjusting by VFD (INVERTER).it is low-sound and gentle Turning.
Technical parameters
Model |
DZG1 |
DZG3 |
Voltage |
AC220V，50/60Hz |
|
Max loading |
1,000kg |
3,000kg |
Rotating speed |
80～1100mm/min |
100～1900mm/min |
Workpieces diameter |
Ф20～Ф800mm |
Ф30～Ф1200mm |
Motor power |
220V、120W |
220V、370W |
Wheels size |
50mm(W)×Ф250mm |
50mm(W)×Ф200mm |
Drive roller size |
500*300*400mm |
850*330*450mm |
Idler roller size |
500*200*400mm |
850*330*450mm |
Model |
DZG-5 |
DZG-10 |
DZG-20 |
DZG-40 |
DZG-60 |
DZG-80 |
DZG-100 |
Unit Loading (T) |
5 |
10 |
20 |
40 |
60 |
80 |
100 |
Min Job Dia (mm) |
φ250 |
φ320 |
φ500 |
φ600 |
φ750 |
φ850 |
φ1000 |
Max Job Dia (mm) |
φ2300 |
φ2800 |
φ3500 |
φ4200 |
φ4800 |
φ5000 |
φ5500 |
PU wheel dia (mm) |
φ250 |
φ300 |
φ350 |
φ400 |
φ450 |
φ500 |
φ500 |
PU wheel thickness(mm) |
100 |
120 |
150 |
160 |
180 |
180*2 |
180*2 |
Linear speed (m/h) |
6-60 |
||||||
Motor power (kw) |
0.75 |
1.1 |
1.5 |
3 |
4 |
4 |
5.5 |
Speed adjusting way |
VFD |
||||||
Company Introduction
FAQ
1.QUESTION: Are you reliable manufacturer?
ANSWER: Yes, we are specialized in welding equipments and H beam production line for many years, we do business with more than 30 countries, and we are supplier for some world top 500 companies, such as Alstom, Oerlikon etc/
2.QUESTION: What about your warranty?
ANSWER: We make sure all of our machines with good quality, and our warranty is 1 year, we will provide the parts to you by DHL freely for any quality problems.
3.QUESTION: What about the packing for transport?
ANSWER: For LCL( (less than container load ) must use wooden box to prevent damage, and FCL(full container load) customers can choose wooden box or not as per requirements, we are experienced in it.
4.QUESTION: Are your price the cheapest?
ANSWER: We don't know if our price is the cheapest in the industry, but we always offer our best price to you.
Different price with different quality, so we just can make sure our price is equative with our quality.
5.QUESTION: Can your machines be customized?
ANSWER: Yes. we have a strong design team ,we can customized for you as per your requirements.
