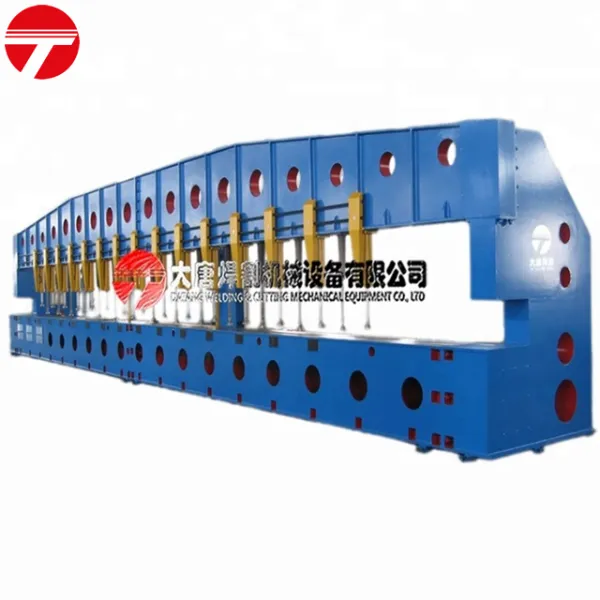

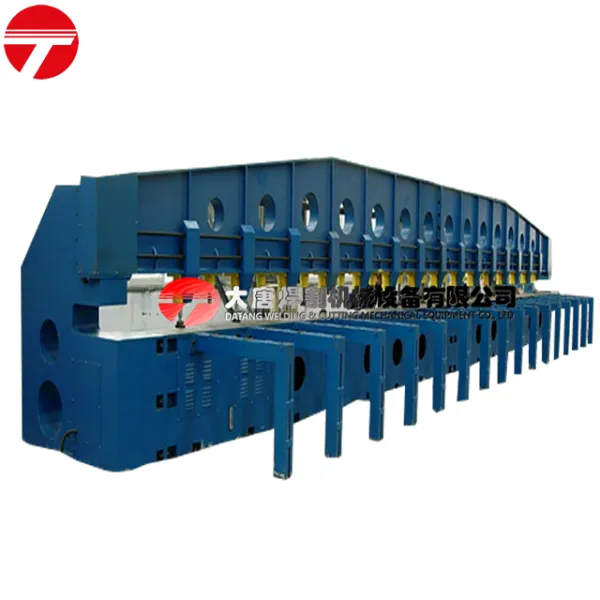

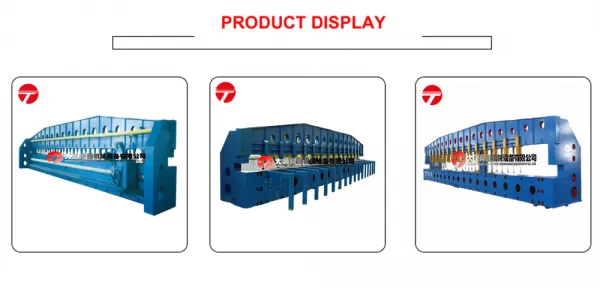

Edge Milling Machine
Compare with the traditional edge milling machine. The series Edge Milling Machine has the assemble and disassemble track with heat-treatment. The lathe has the reasonable structure. The milling head running is steady and reliable. The feeding system and backing system is identified full, free speed is fast and efficiency is high. The milling head angle adjusting is easy. The tailor made milling facer and standard milling facer is changeable, which is the new generation product.
Technical parameters
Model |
XB-6 |
XB-9 |
XB-12 |
Milling angle（°） |
0-45 |
||
Milling plate thickness(mm) |
6-50 |
||
Milling depth for one time(mm) |
12 |
||
Transverse milling speed(mm/min) |
300/500 |
||
Milling free speed(mm/min) |
4000 |
||
Main shaft rotation speed(rpm) |
125-630 |
||
Hydraulic system pressure(MPa) |
《3.5 |
||
Support platform cylinder capacity(Piece) |
8 |
11 |
15 |
Support platform to the ground distance(mm) |
900 |
||
Feeding motor power(kw) |
1.1/0.85 |
||
Milling motor power(kw) |
3 |
||
Oil pump motor power(kw) |
5.5 |
||
Voltage |
380V-3PH-50HZ (Other voltage can customized） |
||
Options:1.drilling&milling heat 2.three axis Digital Display | |||
Company Introduction
FAQ
1.QUESTION: Are you reliable manufacturer?
ANSWER: Yes, we are specialized in welding equipments and H beam production line for many years, we do business with more than 30 countries, and we are supplier for some world top 500 companies, such as Alstom, Oerlikon etc/
2.QUESTION: What about your warranty?
ANSWER: We make sure all of our machines with good quality, and our warranty is 1 year, we will provide the parts to you by DHL freely for any quality problems.
3.QUESTION: What about the packing for transport?
ANSWER: For LCL( (less than container load ) must use wooden box to prevent damage, and FCL(full container load) customers can choose wooden box or not as per requirements, we are experienced in it.
4.QUESTION: Are your price the cheapest?
ANSWER: We don't know if our price is the cheapest in the industry, but we always offer our best price to you.
Different price with different quality, so we just can make sure our price is equative with our quality.
5.QUESTION: Can your machines be customized?
ANSWER: Yes. we have a strong design team ,we can customized for you as per your requirements.
