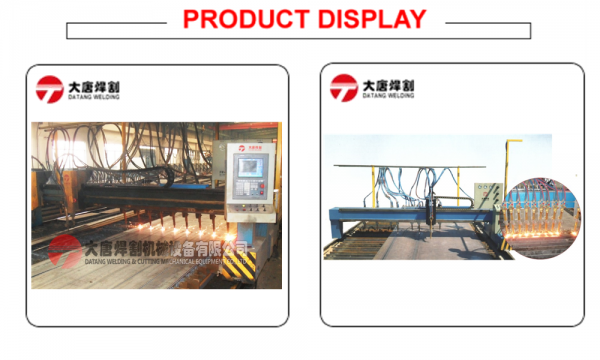

Strip Cutting Machine
Multi-head strip cutting machine is a high efficient steel plate cutting machine made by our company especially for metal frame process. It is an ideal cutting equipment and cutting in both horizontal and vertical direction with high precision and small deformation.

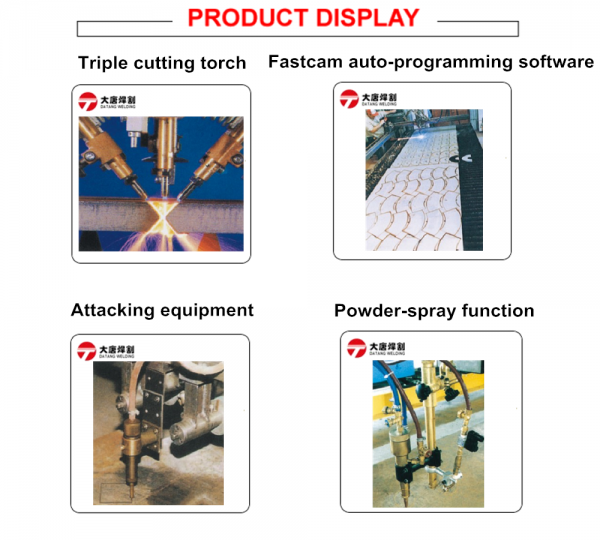

OPTIONAL FUNCTIONS OF THE CUTTING MACHINE
Technical parameters
Model | DTCG-4000 | DTCG-4500 | DTCG-5000 | DTCG-5500 | DTCG-6000 |
Rail distance(mm) | 4000 | 4500 | 5000 | 5500 | 6000 |
Valid Cutting Width(mm) | 3200 | 3700 | 4200 | 4700 | 5200 |
Rail length(mm) | 15000(Can be designed as required) | ||||
Valid cutting length(mm) | 12500(Can be designed as required) | ||||
Cutting speed(mm/min) | 50-1000(Speed adjust as per thickness) | ||||
Back speed(mm/min) | 4000 | ||||
Cutting thickness(mm) | 6-100(Single cutting torch 100mm) | ||||
Cutting precision(mm/m) | ±0.5 | ||||
Roughness of surface | Ra 12.5-25 | ||||
Cutting gas source | Oxygen and Acetylene or propane | ||||
Voltage | 220V-1PH-50HZ (Other voltage can customized) | ||||
Company Introduction
FAQ
1.QUESTION: Are you reliable manufacturer?
ANSWER: Yes, we are specialized in welding equipments and H beam production line for many years, we do business with more than 30 countries, and we are supplier for some world top 500 companies, such as Alstom, Oerlikon etc/
2.QUESTION: What about your warranty?
ANSWER: We make sure all of our machines with good quality, and our warranty is 1 year, we will provide the parts to you by DHL freely for any quality problems.
3.QUESTION: What about the packing for transport?
ANSWER: For LCL( (less than container load ) must use wooden box to prevent damage, and FCL(full container load) customers can choose wooden box or not as per requirements, we are experienced in it.
4.QUESTION: Are your price the cheapest?
ANSWER: We don't know if our price is the cheapest in the industry, but we always offer our best price to you.
Different price with different quality, so we just can make sure our price is equative with our quality.
5.QUESTION: Can your machines be customized?
ANSWER: Yes. we have a strong design team ,we can customized for you as per your requirements.
