End Face Milling Machine

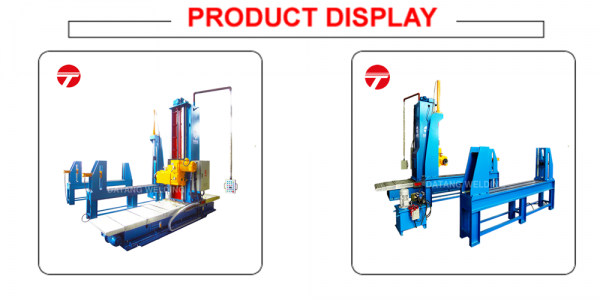

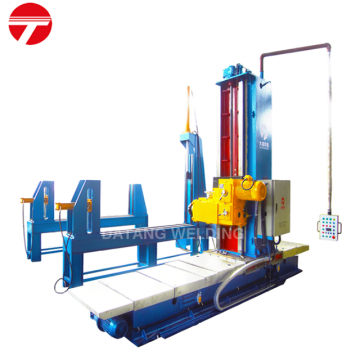

The face milling machine consists of milling and cutting head, elevator column work table, lathe bed, mechanical feeding system, electrical control system, rail protection device, tools etc.
The machine is used to mill the end face of Box-beam and H-beam. And the degree of milling head can be adjusted manually in vertical direction to bevel the end face. The hydraulic support rack for choice can fix the beam and is open top, which is easy for hoisting.
Technical parameters
Model | DX-0810 | DX-1215 | DX-2030 | DX-2540 |
End-face Machining rage(mm) | 800*1000 | 1200*1500 | 2000*3000 | 2500*4000 |
Horizontal milling speed(mm/min) | 50-440 | |||
Vertical milling speed(mm/min) | 22-550 | |||
Milling angle(°） | 0-45 | |||
Milling head size | TX25A | TX32A | ||
Milling facer rotation speed(rpm) | 125-630 | |||
Suitable milling facer diameter(mm) | 125-250 | |||
Voltage | 380V-3PH-50HZ (other voltage can customized) | |||
Options：1.drilling&milling heat 2.three axis digital display | ||||
Company Introduction
FAQ
1.QUESTION: Are you reliable manufacturer?
ANSWER: Yes, we are specialized in welding equipments and H beam production line for many years, we do business with more than 30 countries, and we are supplier for some world top 500 companies, such as Alstom, Oerlikon etc/
2.QUESTION: What about your warranty?
ANSWER: We make sure all of our machines with good quality, and our warranty is 1 year, we will provide the parts to you by DHL freely for any quality problems.
3.QUESTION: What about the packing for transport?
ANSWER: For LCL( (less than container load ) must use wooden box to prevent damage, and FCL(full container load) customers can choose wooden box or not as per requirements, we are experienced in it.
4.QUESTION: Are your price the cheapest?
ANSWER: We don't know if our price is the cheapest in the industry, but we always offer our best price to you.
Different price with different quality, so we just can make sure our price is equative with our quality.
5.QUESTION: Can your machines be customized?
ANSWER: Yes. we have a strong design team ,we can customized for you as per your requirements.
