Heavy Type Welding Manipulator

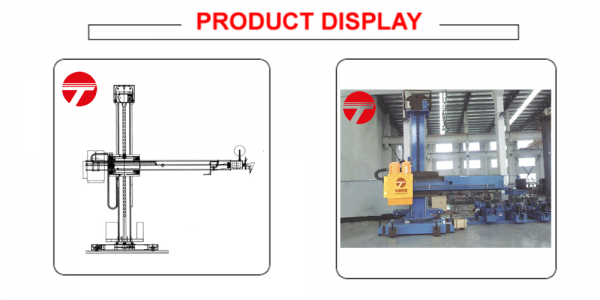

DATANG Welding manipulator includes fixed type, fixed with rotation type and traveling with rotation type.
The boom of machine can weld inside and outside seams of small tanks, also can welding longitudinal and transverse seams of big tanks.

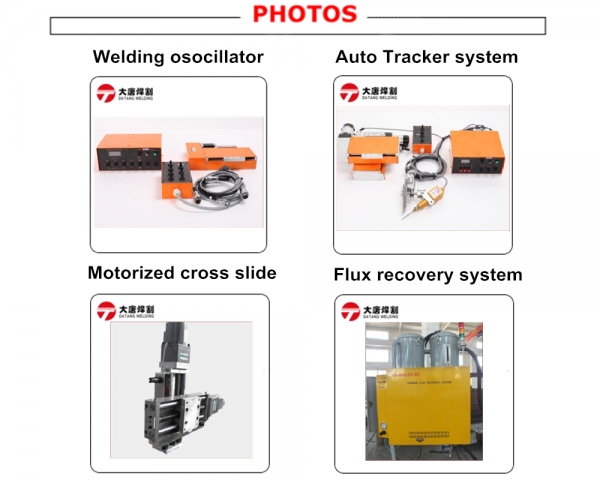

It has some optional functions, such as Auto-tacking of welding arc.TV monitor. The flux recovering and conveying system etc.
Technical parameters
Model |
DLH5060 |
DLH6070 |
DLH7080 |
Vertical elevation stroke (mm) |
5000 |
6000 |
7000 |
Boom retracting stroke (mm) |
6000 |
7000 |
8000 |
Frame rotation angle (°) |
±180 |
||
Frame rotation speed (rpm) |
0.3
|
||
Boom elevationg speed (m/min) |
1 |
||
Boom feeding speed (m/min) |
0.12～1.2
|
||
Trolley feeding speed (m/min) |
2 |
||
Trolley rail span (mm) |
2000 |
||
Company Introduction
FAQ
1.QUESTION: Are you reliable manufacturer?
ANSWER: Yes, we are specialized in welding equipments and H beam production line for many years, we do business with more than 30 countries, and we are supplier for some world top 500 companies, such as Alstom, Oerlikon etc/
2.QUESTION: What about your warranty?
ANSWER: We make sure all of our machines with good quality, and our warranty is 1 year, we will provide the parts to you by DHL freely for any quality problems.
3.QUESTION: What about the packing for transport?
ANSWER: For LCL( (less than container load ) must use wooden box to prevent damage, and FCL(full container load) customers can choose wooden box or not as per requirements, we are experienced in it.
4.QUESTION: Are your price the cheapest?
ANSWER: We don't know if our price is the cheapest in the industry, but we always offer our best price to you.
Different price with different quality, so we just can make sure our price is equative with our quality.
5.QUESTION: Can your machines be customized?
ANSWER: Yes. we have a strong design team ,we can customized for you as per your requirements.
