Home > Products > lifting equipment > Vertical Conveyor System Grain Bucket Elevator
Vertical Conveyor System Grain Bucket Elevator
- 300 Piece / Pieces per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 30 days
Product Details
Brand Name: | GZ | Place of Origin: | China | Model Number: | TD-100 |
After-sales Service Provided: | No overseas service provided | Condition: | New |
Product Description
Introduce:
Our bucket elevator comes in 7 models, including TD100, TD160, TD250, TD315, TD400, TD500 and TD630. The elevating capacity is from 4m3/h to 238m3/h. The total height is between 4m and 40m. This piece of conveying equipment can be manufactured and installed in different ways according to your application situations and special requirements.
Principle:

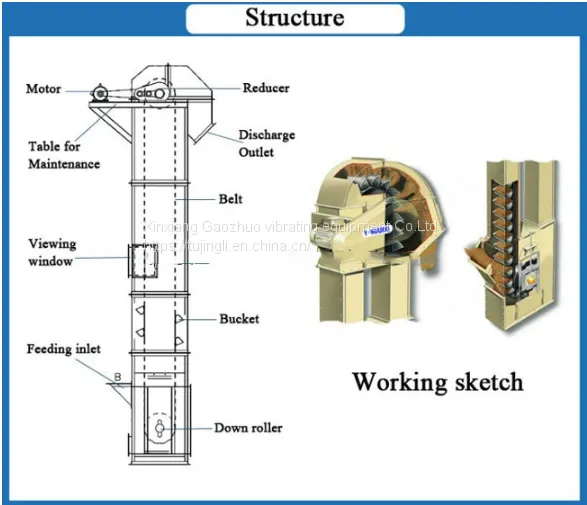

The bucket elevator, as material conveying solution, is composed of material conveying mechanism (buckets and conveying rubber belt), upper section with transmission drum, lower section with stretching drum, housing at the medium section, drive mechanism, non-return brake apparatus.
Application
This bucket elevating system is designed for vertically elevating loose powdery, granular, and small blocky materials (Density is smaller than 1.5T/M3) with no or moderate abrasiveness, such as coal, sand, coke breeze, cement, broken ore, and so on.
Main Feature
1. This premium bucket elevator can rapidly discharge material by centrifugal force.
2. Rubber conveying belt is adopted as the traction component. The belt is not suitable for conveying big sized materials with high abrasiveness and materials with high digging resistance.
3. The materials should be below 60°C. If you choose a heatproof belt, the maximum material allowed could reach 200°C.
4. Comparing with D type bucket elevator, our product features high conveying efficiency and more bucket types.
Our service:
Pre-sale service
1.Help high-end customer to chose a suitable machine and develop local market.
2.We can offer an accurate quotation according to customer’s model or drawings
3.The drawing can be send if needed ,we can help you design the whole line based on your model.
4.We can also supply a free analytics sample materials in our laboratory.
5.OEM and ODM will be always available.
After-sale service
1.24hours service online and fast response within 12 hours
2.Quality warranty is 12 months from the shipping date.
3.Any customers’meet any question,we supply the profesional solution.
Contact Us
- Xinxiang Gaozhuo vibrating equipment Co.Ltd
- Contact nameVera
- Phone86-0373-3053536
- AddressMakino area Xinxiang,Henan
