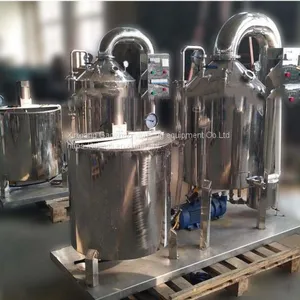

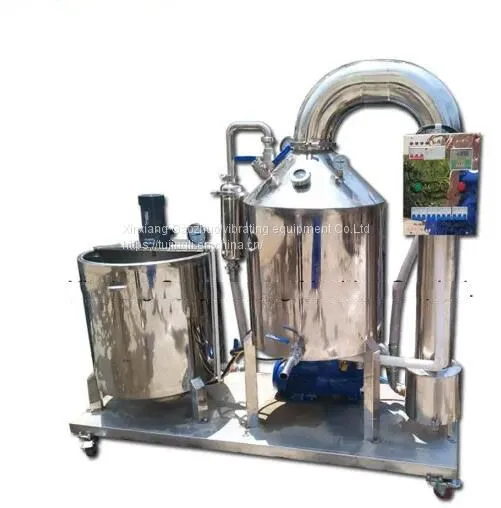

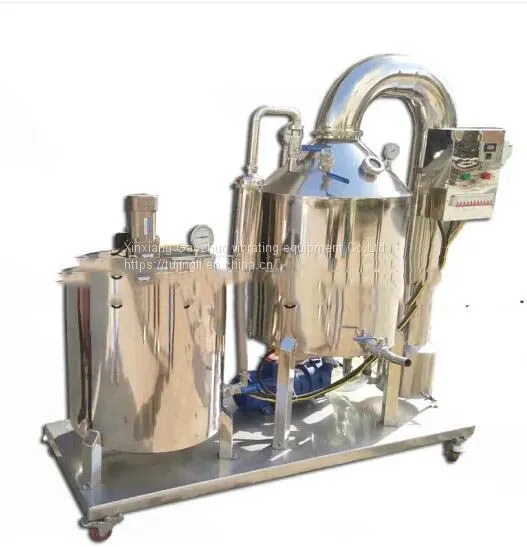

Help CenterFood Grade Honey Process Machine
Related Products
Working principle of Vacuum Honey Purify Machine
Decrease the boiling point in the condition of high vacuum,and steam up the water in honey,and increase honey's concentration.

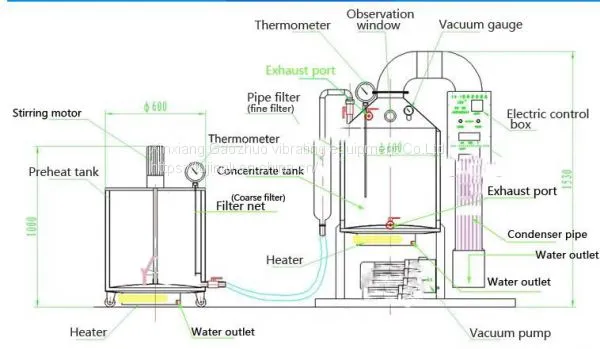

Main parts:
Pre-heater,filter, thickener,condenser & water container,vacuum pump.
Honey processing machine parameters
Model |
FM-600 |
FM-400 |
Production capacity |
1.2-1.5t/8h |
0.4-0.5t/8h |
Machine dimension |
1750*600*1660 |
1600*500*1555 |
Tank diameter |
600mm |
400mm |
Tank height |
600mm |
600mm |
The overall volume |
140L |
70L |
Effective volume |
120L |
60L |
Preheat tank power |
6KW |
|
Vacuum concentration tank power |
9KW |
|
A single heating tube (preheating tank is 6 kw ,and vacuum concentrator is 9 kw)
Vacuum pump SK - 0.8 voltage 380 v power 1.5 KW
Preheating tank motor slowdown micromotor voltage 220v power 180w ratio 25 60r/min
Production capacity: 0.5 to 1.5 t per day
Concentrated temperature: 50 ºC or less
Vacuum: 0.092 Mpa or less
The maximum total power: 16Kw
Introduction of Vacuum Honey Processing Machine / Equipment:Currently, honey processing main used mechanical filters and low-temperature vacuum concentrated to remove impurities and excess water, Get a higher degree of vacuum systems and the reasonable structure of the low temperature evaporation device is the key to the processing technology of bee products. This equipment has fully realized honey enrichment process special requirements, and to meet the aspirations of bee products processing enterprises.
The original honey → coarse filtration → Agitation, preheating → sterilization, melt crystallization nucleation → Fine filtration → low temperature, concentrated → filling
Our service:
Pre-sale service
1.Help high-end customer to chose a suitable machine and develop local market.
2.We can offer an accurate quotation according to customer’s model or drawings
3.The drawing can be send if needed ,we can help you design the whole line based on your model.
4.We can also supply a free analytics sample materials in our laboratory.
5.OEM and ODM will be always available.
After-sale service
1.24hours service online and fast response within 12 hours
2.Quality warranty is 12 months from the shipping date.
3.Any customers’meet any question,we supply the profesional solution.
