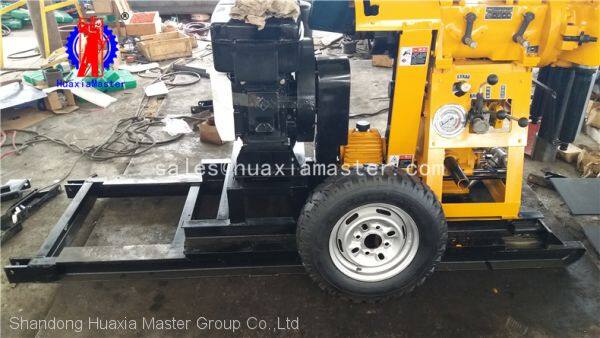

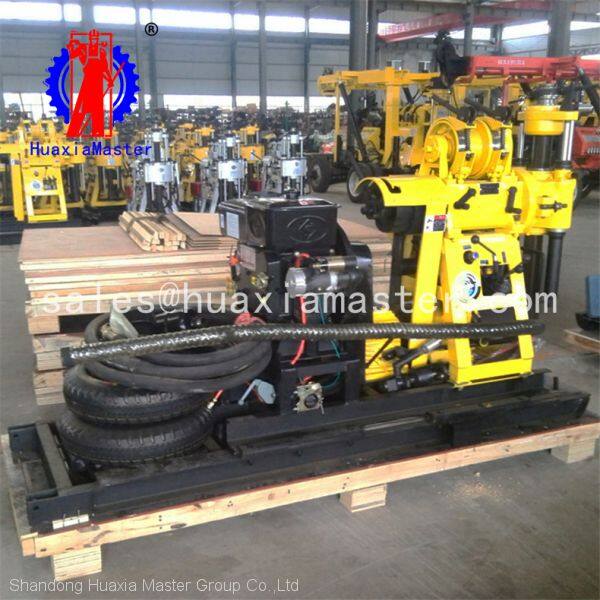

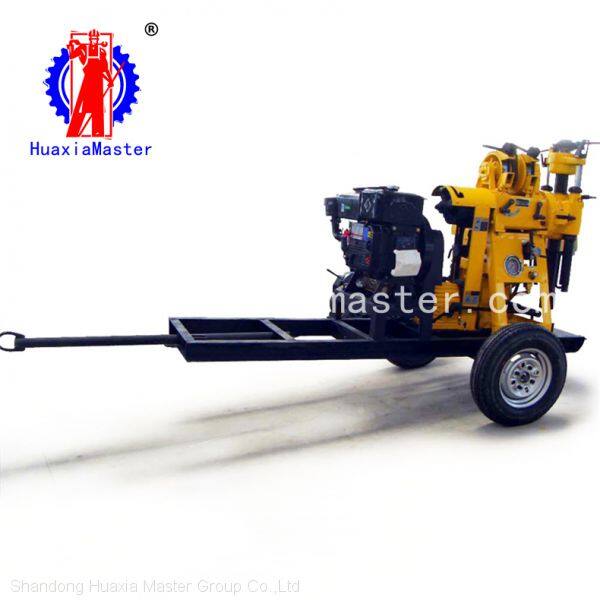

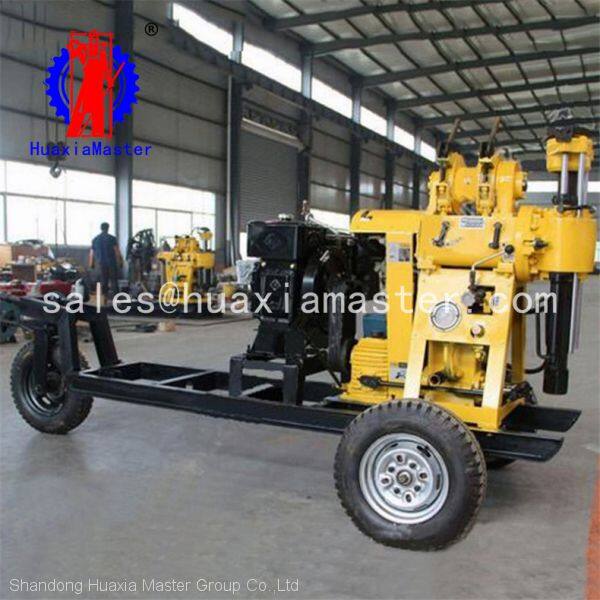

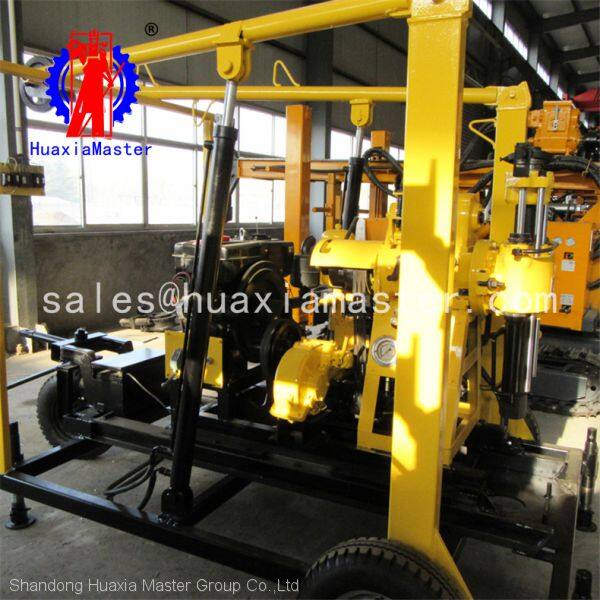

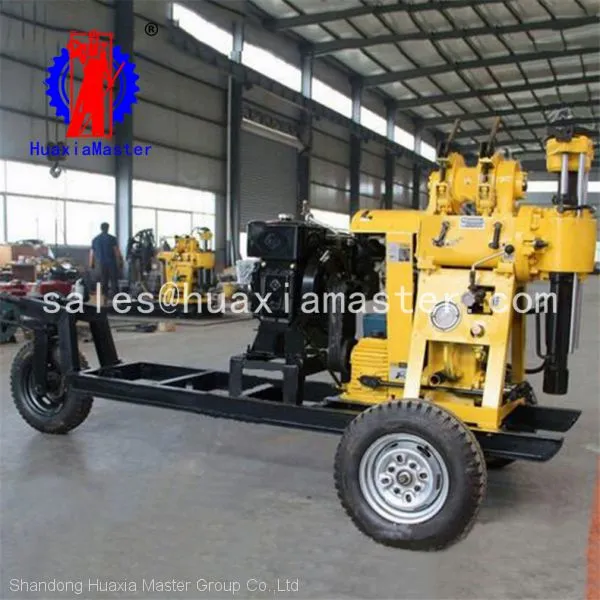

Huaxiamaster XYX-130 Wheeled Hydraulic Core Drilling Rig for Sale

Shandong Huaxia Master Group Co.,Ltd
Huaxiamaster XYX-130 Wheeled Hydraulic Core Drilling Rig for Sale thumbnail-1
Huaxiamaster XYX-130 Wheeled Hydraulic Core Drilling Rig for Sale thumbnail-2
Huaxiamaster XYX-130 Wheeled Hydraulic Core Drilling Rig for Sale thumbnail-3
Huaxiamaster XYX-130 Wheeled Hydraulic Core Drilling Rig for Sale thumbnail-4
Huaxiamaster XYX-130 Wheeled Hydraulic Core Drilling Rig for Sale thumbnail-5
Huaxiamaster XYX-130 Wheeled Hydraulic Core Drilling Rig for Sale photo-1

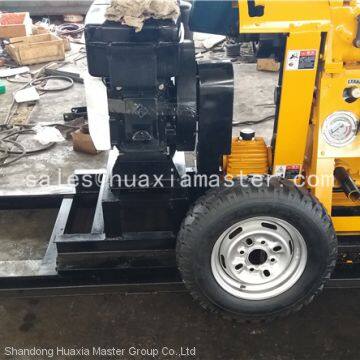

Huaxiamaster XYX-130 Wheeled Hydraulic Core Drilling Rig for Sale photo-2
Huaxiamaster XYX-130 Wheeled Hydraulic Core Drilling Rig for Sale photo-3

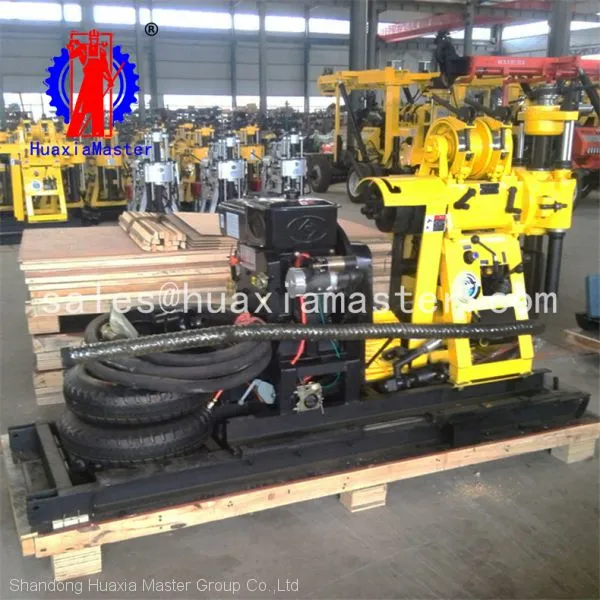

Huaxiamaster XYX-130 Wheeled Hydraulic Core Drilling Rig for Sale photo-4
Huaxiamaster XYX-130 Wheeled Hydraulic Core Drilling Rig for Sale photo-5
US$ 5000 - 55000 MOQ: 1 Set
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2014
Factory Size:
5,000-10,000 square meters
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

XYX-130 wheeled hydraulic core drilling rig

1. Applications of XYX-130 wheeled hydraulic core drilling rig

Geological survey and exploration, basic exploration for roads and high-rise buildings, inspection holes for various concrete structures, river embankments, subgrade grouting holes, direct grouting, civil water well and ground temperature central air conditioners.

2. Features of XYX-130 wheeled hydraulic core drilling rig

The drilling rig is equipped with wheeled walking mechanism, which is convenient for the whole machine to move.

Also, because of the oil pressure feeding mechanism, the rig improves drilling efficiency.

The drilling rig is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod. The working efficiency is high and the operation is convenient, safe and reliable.

The drilling rig is equipped with pressure gauge so the operatpr will know the bottom hole condition during drilling process.

3. Technical parameters of XYX-130 wheeled hydraulic core drilling rig

XYX-130 wheeled hydraulic core drilling rig

Drilling depth

130m

Max open hole caliber

220mm

End hole caliber

75mm

Drilling rod diameter

50mm

Drilling angle

90°-75°

Drill weight

950kg

Spindle

Spindle speed

142 285 570r/min

Spindle stroke

450mm

Windlass

Maximum lifting weight of single rope

1600kg

Single rope lifting speed

0.41 0.82 1.64m/s

Drum diameter

140mm

Wire rope diameter

13mm

Wire rope capacity

27m

Mud pump

Type

Horizontal single cylinder double action

Displacement diesel engine / motor

95/77 l/min

Maximum pressure

1.2mpa

Work pressure

0.7mpa

Drilling depth

130m

Max open hole caliber

220mm

End hole caliber

75mm
