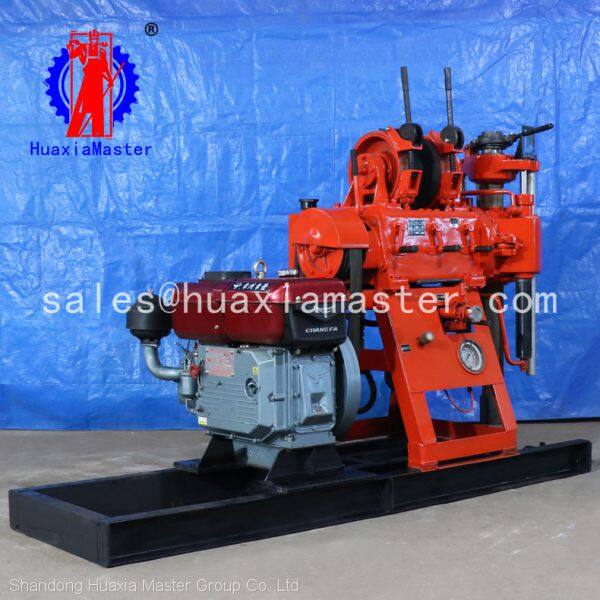

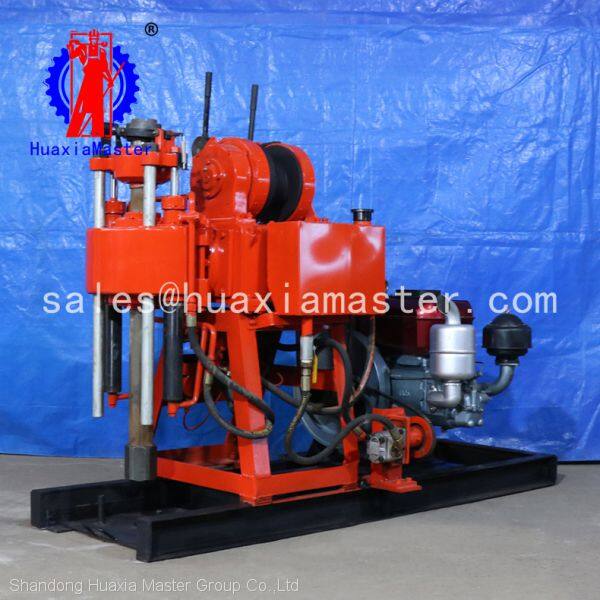

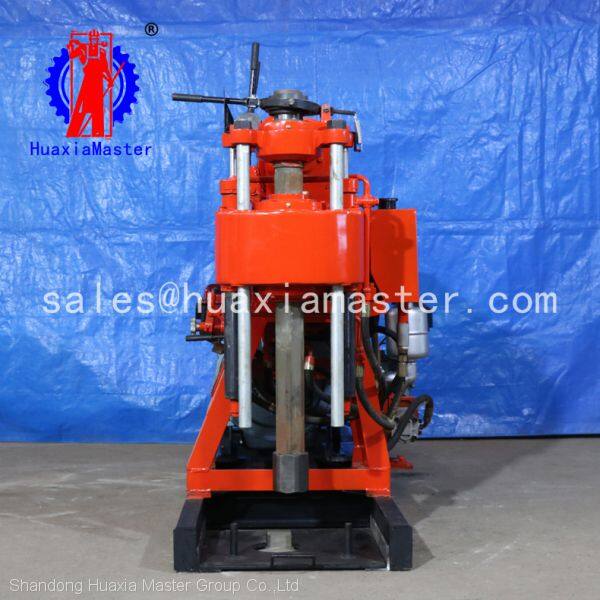

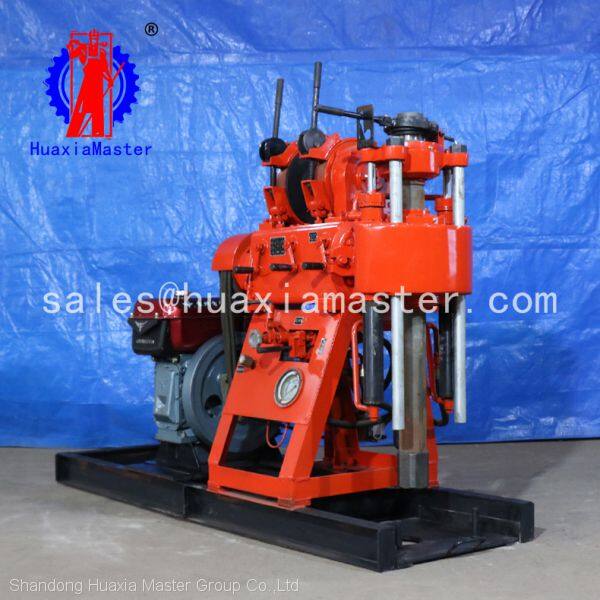

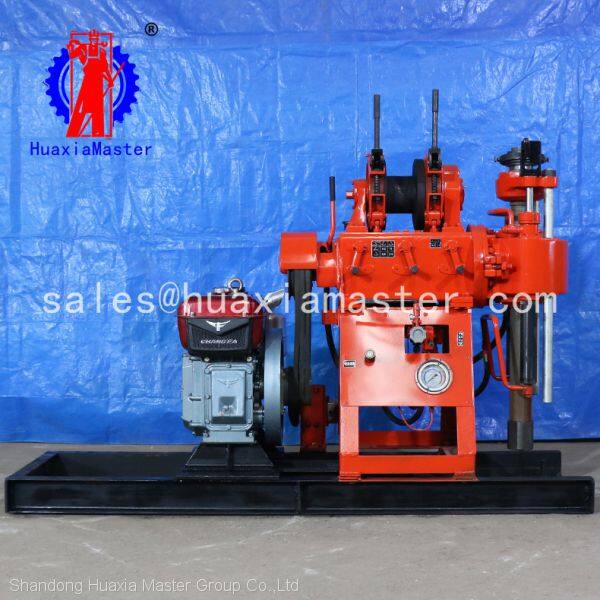

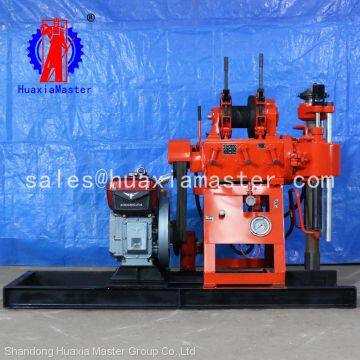

XY-200 hydraulic core drilling rig
1. Applications of XY-200 hydraulic core drilling rig
Geological survey, geophysical exploration, road and high-rise building foundation exploration, wells, blasting holes and other drilling projects.
2. Parameters of XY-200 hydraulic core drilling rig
Maximum opening diameter |
400mm |
Maximum borehole depth |
200m |
75mm |
|
Borehole dip angle |
90-75° |
Machine overall size |
2.75*0.95*1.60m |
Drill pipe diameter |
50mm |
Weight of drill rig diameter of drill pipe (without power) |
760kg |
A vertical scroll of painting | |
71/142/310/20r/min |
|
Vertical axis stroke |
450mm |
Windlass | |
Maximum lifting weight of single rope |
2008kb |
Drum lifting speed |
17/35/75/160 rm/s |
Wire rope diameter: |
13mm |
Wire rope capacity |
35mm |
Width of sluice |
70mm |
Mud pump | |
Type: horizontal single cylinder double action |
flow：180L/min |
1.5mpa |
|
Working pressure |
0.7mpa |
Inlet size |
50mm |
Outlet pipe diameter |
45mm |
Power | |
Diesel oil |
22hp |
Rated speed |
2200r/min |
Electric machinery |
15kw |
Rated speed |
1460r/min |
