XYC-200A tricycle-mounted hydraulic core drilling rig
1. Characteristics of XYC-200A tricycle-mounted hydraulic core drilling rig
· XYC-200A tricycle-mounted hydraulic core drilling rig is multi-function hydraulic vehicle-mounted core drilling machine .
· The tricycle is Tricar. The drilling rig, engine, BW-160 pump and hydraulic drill tower are all installed on the tricycle, so it us easy for transportation.
· XYC-200A tricycle-mounted hydraulic core drilling rig with BW160 pump which has high pressure and high flux, to ensure the drilling depth and hole diameter.
· The tricycle drilling rig is equipped with shift unit,so the drilling rig can move back and forth
· The highest speed can reach 1045r/min with 5 gears, which improves the drilling efficiency
· The drilling rig is Adopted 53*59 drilling rod, which has high rigidity and strong delivery torque
· Equipped with taper clutch, made the machine easy to operate and free of maintenance.
· Use large module planetary gear and add supporting frame, highly increased hoisting and braking ability of the winch.
2. Parameters of XYC-200A tricycle-mounted hydraulic core drilling rig
Drilling depth |
200m |
Max. open hole diameter |
75-260mm |
End hole diameter(mm) |
75 |
50mm |
|
Drilling tower height |
6500mm |
Drilling angle |
90-75 |
Spindle | |
Spindle speed |
64/128/287/557r/min |
Spindle stroke |
450mm |
Max. single line hoisting capacity |
1600kg |
Single line lifting speed |
17/35/75/151r/min |
Tightrope diameter |
12.5mm |
Tightrope cubic measure |
35mm |
Hug floodgate belt width |
70mm |
Mud Pump | |
Type |
Horizontal Single Urn Twin-action |
Discharge displacement |
170l/min. |
Diesel |
S1115 22HP |
Electric motor |
15kw,1440r/min |
Max. pressure |
1.5mpa |
Work pressure |
0.7mpa |
Water inlet diameter |
30mm |
25mm |
|
Triangle conveyre belt |
B1728mm |
Chassis | |
Chassis |

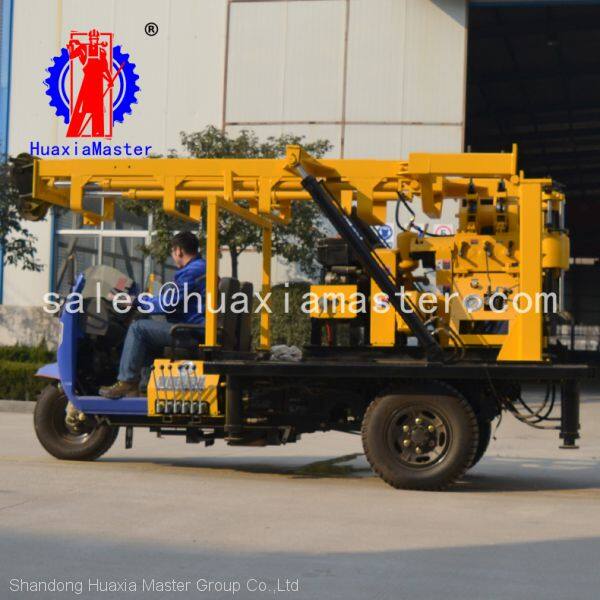

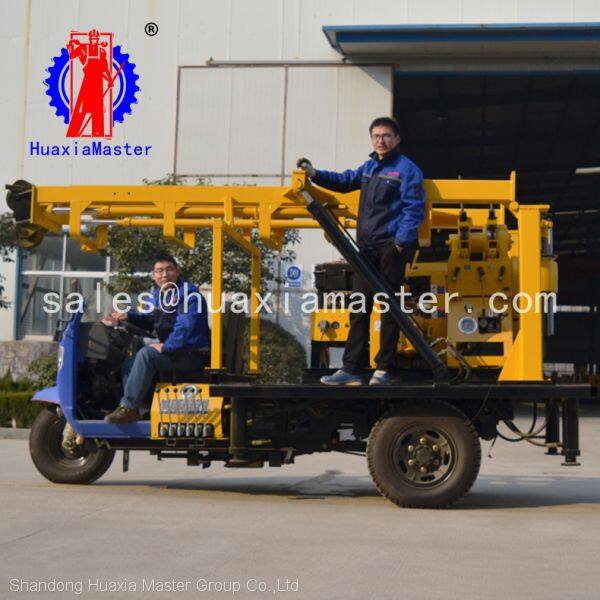

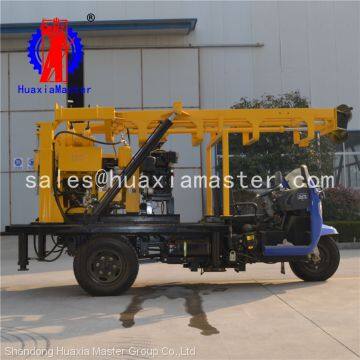

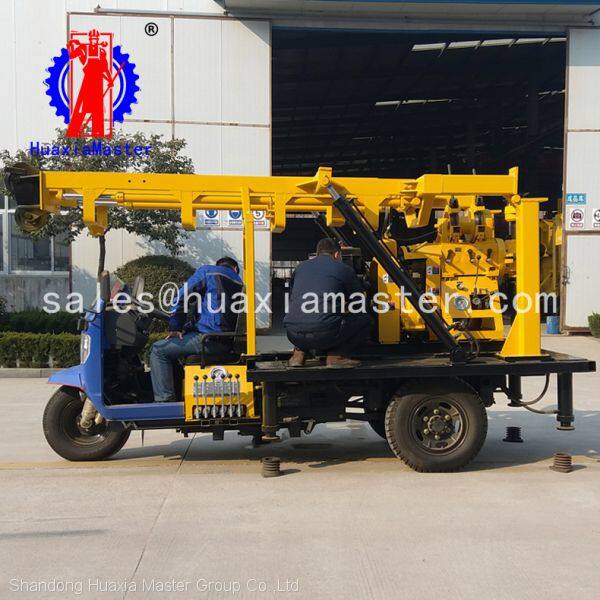

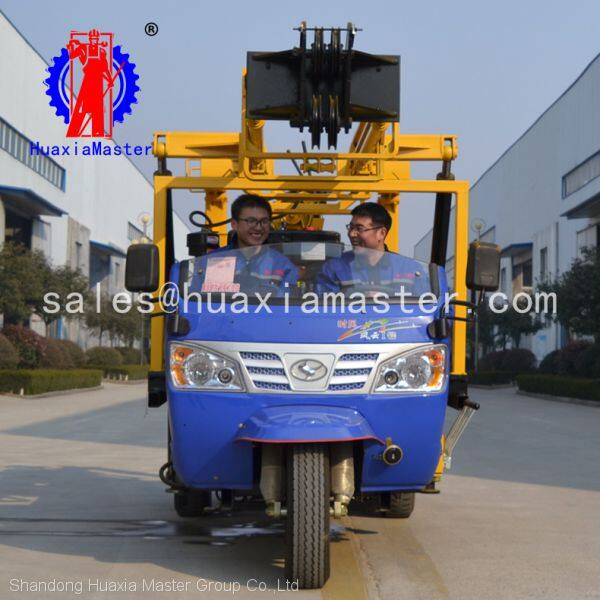

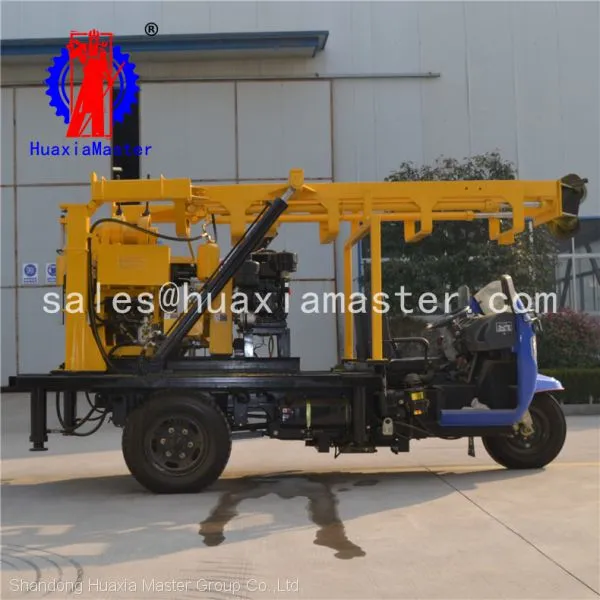

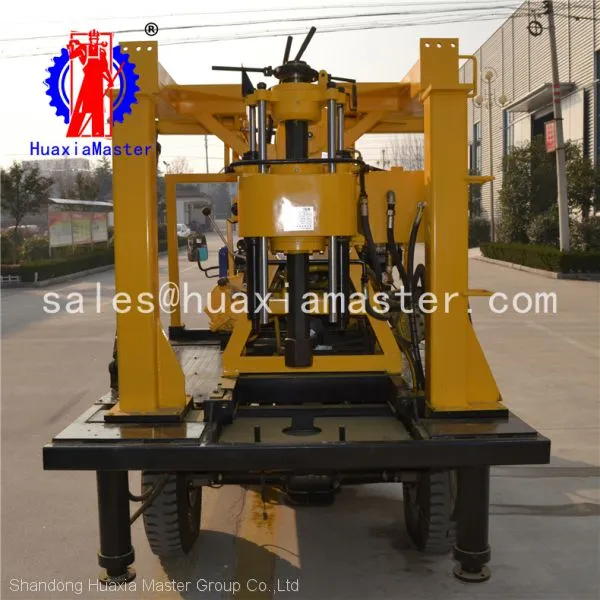

Tricar(Pictures of vehicle-mounted drilling rigs for reference only) |
