Huaxiamaster XYX-200 Wheeled Hydraulic Core Drilling Rig for Sale

US$ 4000 - 5000 MOQ: 1 Set

Key Specifications

Business Type:

Manufacturer

Year Established:

2014

Factory Size:

5,000-10,000 square meters

Shandong Huaxia Master Group Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

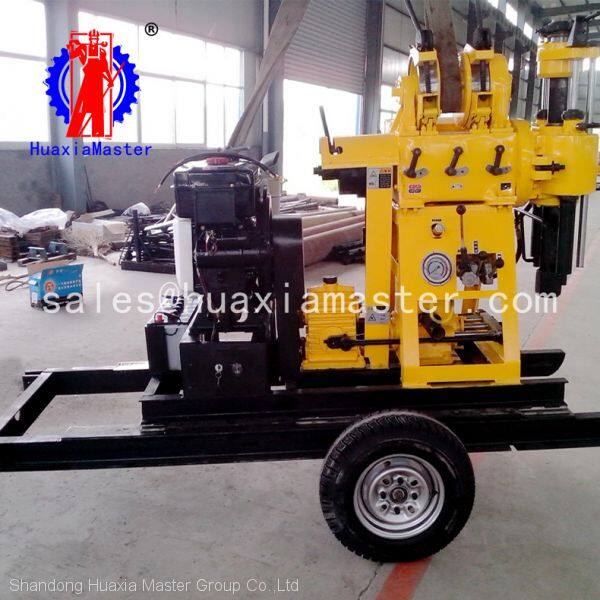

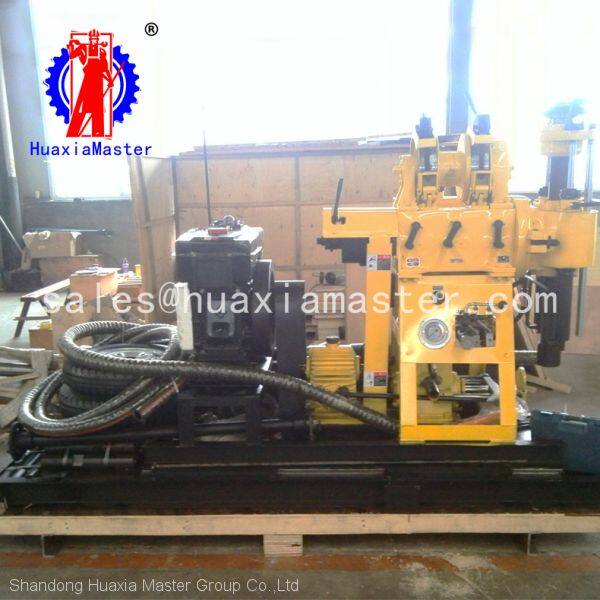

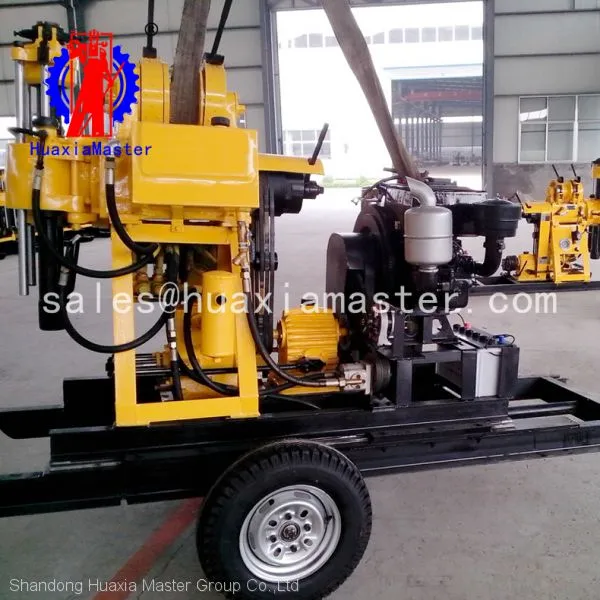

XYX-200 wheeled hydraulic core drilling rig

· hydraulic cylinder, high efficiency

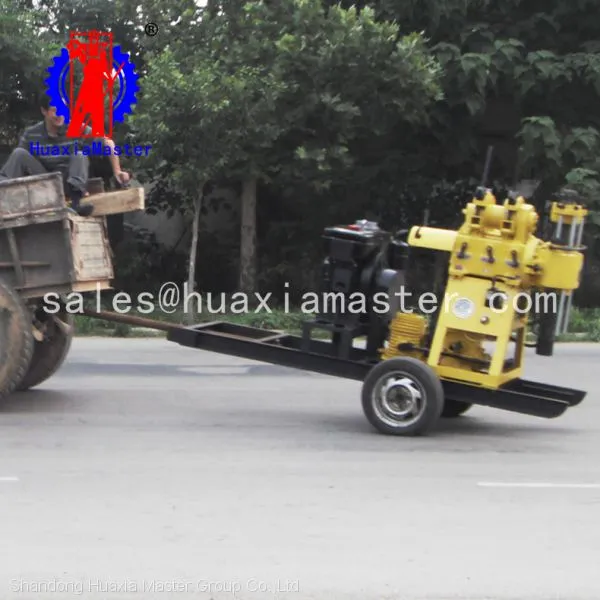

· wheeled walking mechanism, very convenient for transport and adjusting the drilling rig level.

· pressure gauge display the condition of the bottom of the drill hole.

· the drilling rig is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod.

· the working efficiency is high and the operation is convenient, safe and reliable.

2. Technical parameters of XYX-200 wheeled hydraulic core drilling rig

XYX-200 wheeled hydraulic core drilling rig
Drill hole depth	200m
Maximum opening diameter	300mm
Final hole diameter	75mm
Drill pipe diameter	60mm
Borehole inclination	90°-75°
Rig weight (without power)	1300kg
Trigonometric belt	B9504 B17003
Active moving distance	300mm
Power	Diesel engine/motor 22hp/16.2kw
A vertical scroll of painting
Shaft rotation speed	64/128/ 287/ 557 r/min
Vertical axis stroke	450mm
Windlass
Maximum lifting weight of single rope	2400kg
Single rope lifting speed	0.41/ 0.82/1.64m/s
Wire rope diameter	13mm
Wire rope capacity	35m
Hug floodgate caliber	260mm
Hug floodgate belt width	70mm
Mud pump
Type	Horizontal single cylinder double action
Maximum displacement	Diesel engine 170L/min Matching motor 150L/min
Maximum pressure	3Mpa
Work pressure	1.5Mpa
Inlet pipe caliber	40mm
Outlet pipe caliber	30mm
Triangle conveyer belt	B1728mm
Type	CBT-F-314
Triangle conveyer belt	B1100*1
