huaxiamaster XYD-130 crawler hydraulic core drilling rig for sale

FOB Price

US$ 5000 - 5500 / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A Credit Card PayPal Other Cash Escrow

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

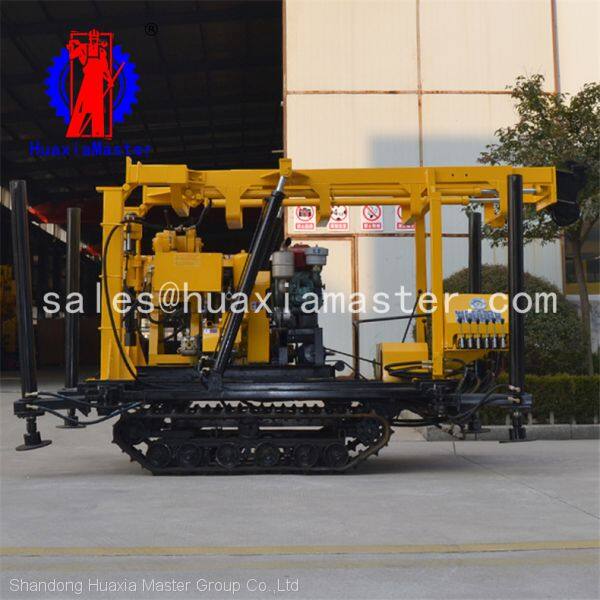

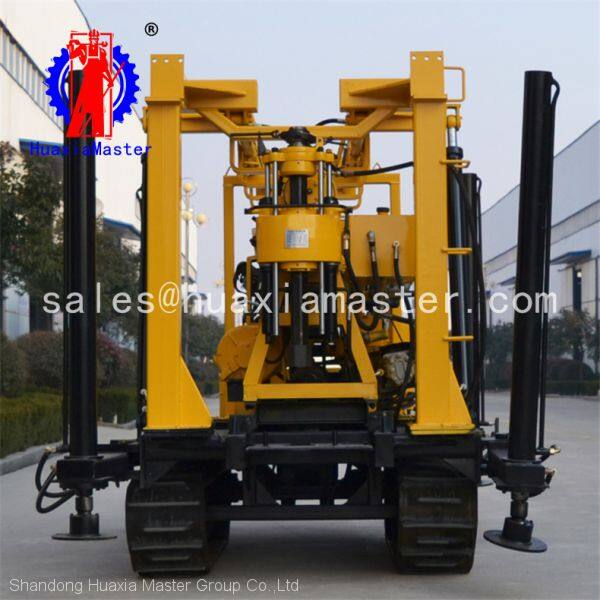

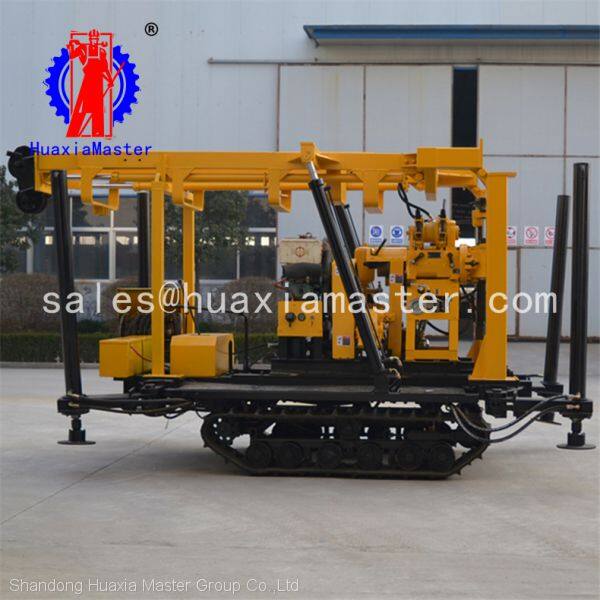

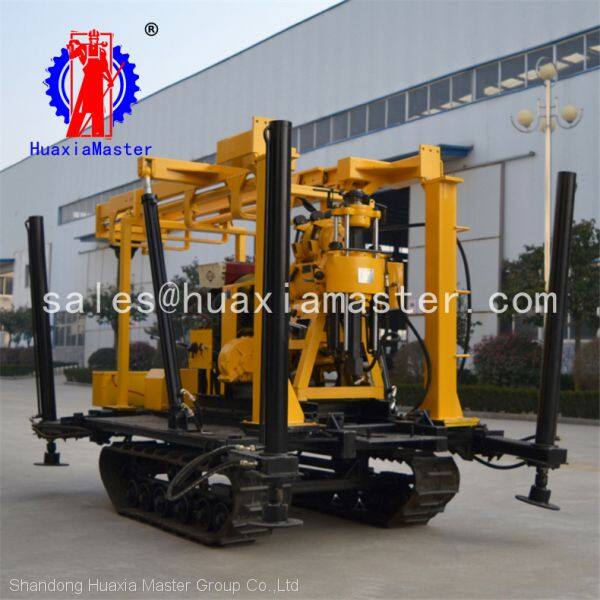

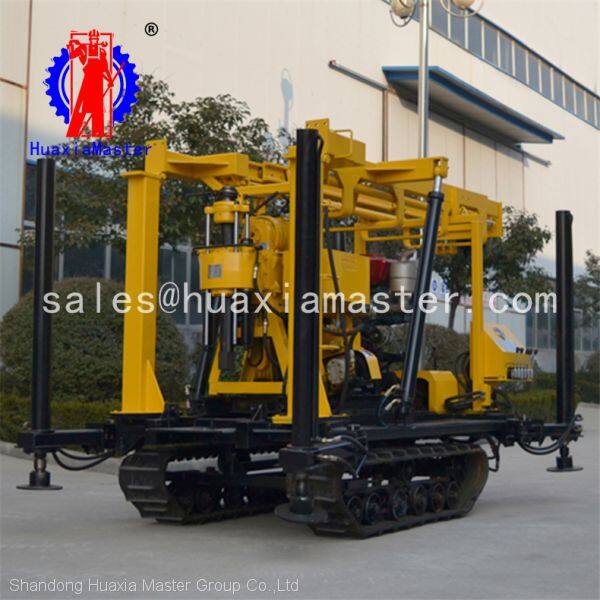

XYD-130 crawler hydraulic core drilling rig

1. The features of XYD-130 crawler hydraulic core drilling rig

The drilling rig adopts the automatic Telescopic style with two high strength oil cylinder support, a set of hydraulic valve control rigs operating supine, which is time-saving, safe and reliable to maximize the benefits for users.

The chassis adopts rubber track, light weight and low life cycle cost, which can reduce noise of vehicle running mechanism, reduce car body vibration, and reduce fuel consumption greatly. It can walk on urban roads without hurting the road surface.

The chassis is equipped with four high strength threaded legs (or hydraulic high leg). The installation and adjustment is fast and convenient. It can be used for leveling of work plane, loading and unloading vehicle, which reduces the hoisting cost and improves efficiency and works as auxiliary support.

The drilling rig uses 48V electricty to start the diesel engine , which greatly reduces the labor usage, especially in the cold season. When the diesel engine has difficulty activiting, this starting mode shows greater advantages.

2. Technical parameters of XYD-130 crawler hydraulic core drilling rig

href="" XYD-130 crawler hydraulic core drilling rig
Drilling depth	130m
Maximum opening diameter	220mm
Diameter of the end hole	75mm
Drilling rod caliber	50mm
Drilling angle	90°-75°
Drill weight (no include power)	2600kg
Spindle
Spindle speed	142/285/570 r/min
Spindle stroke	450mm
Windlass
Max single line hoisting capacity	1600kg
Single line lifting speed	0.41/0.82/1.64 m/s
Drum diameter	140mm
Wire rope diameter	13mm
Wire rope capacity	27m
Mud pump
Type	horizontal single urn twin-action
Displacement	95 /77L/min
Maximum pressure	1.2mpa
Work pressure	0.7mpa
Water inlet caliber	30mm
Water to exit caliber	20mm
Triangle conveyer belt	B1575mm
