Brand Name YuanChen
Place of Origin China
Model Number Customized

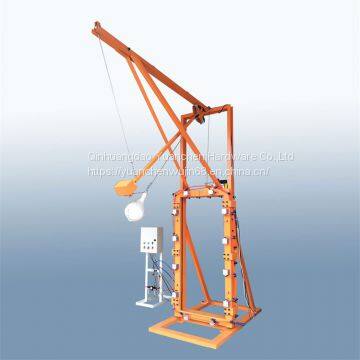

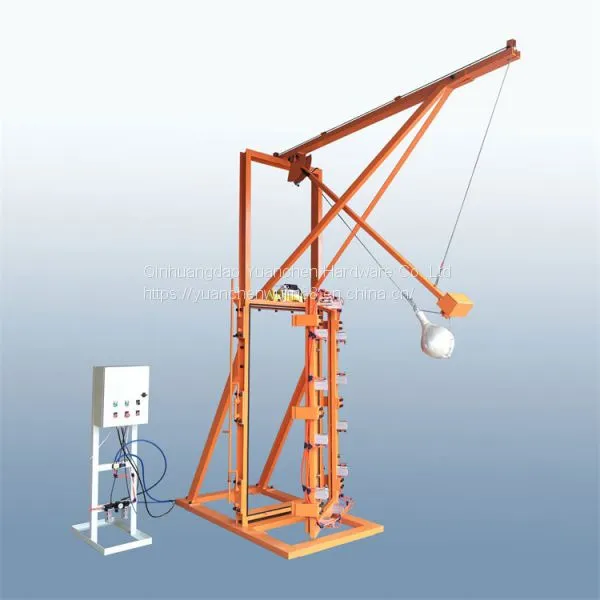

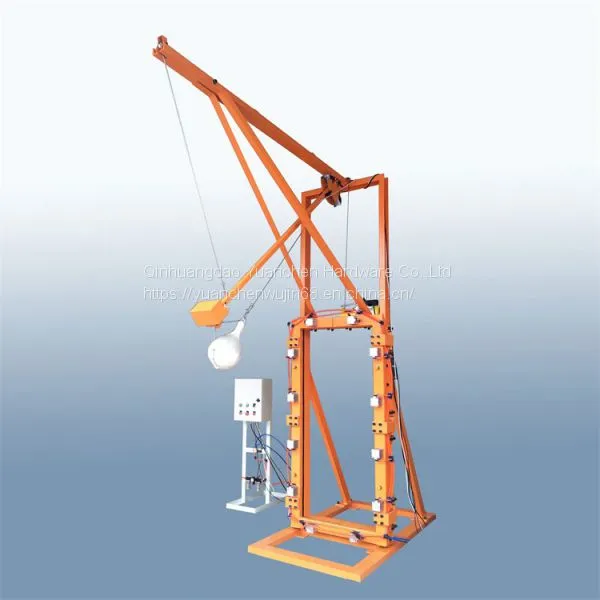

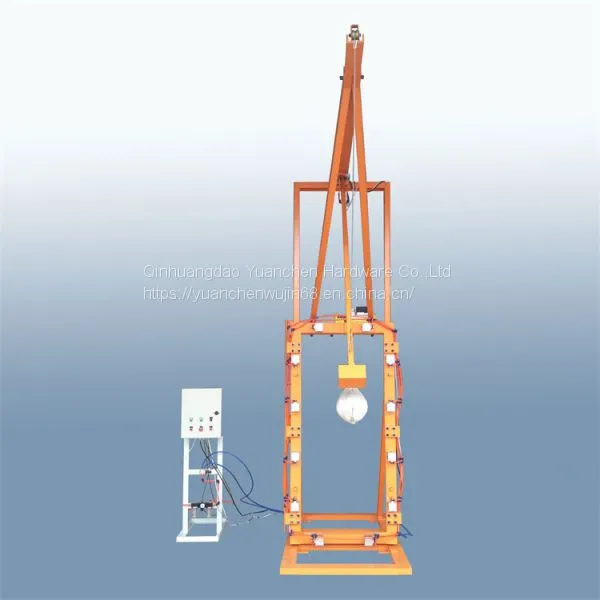

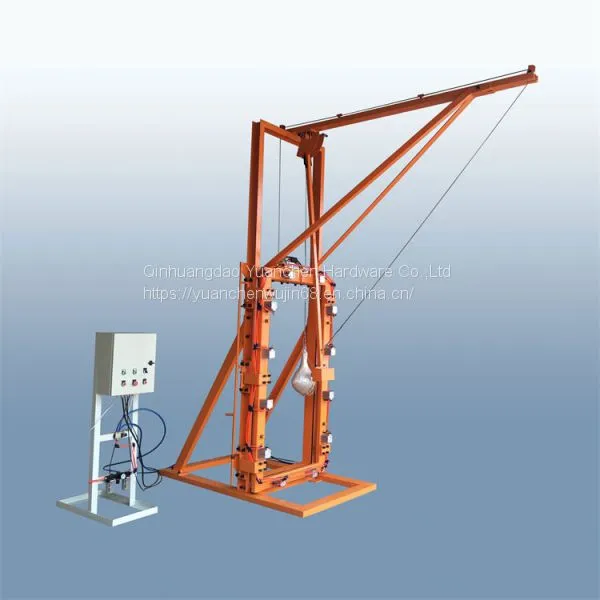

Safety Glass Impact Testing Equipment

45kg/46kg shot bag and 50kg Pneumatic Tyres Impactor.

Processed in accordance with ANSI Z91.1, ISO 3537, BS EN 12600 and AS NZS 2208.

Related Standards:

AS/NZS 2208 Safety glazing materials in buildings – Appendix D: Impact Test

GB 15763.3 Safety glazing materials in building Part 3: Laminated glass – Appendix C: Test device for the impact performance of shot bag

ANSI Z97.1 Safety Glazing Materials Used in Buildings - Safety Performance Specifications and Methods of Test - Clause 5.1: Impact Test

Application:

Determining the resistance of glazing materials to impact by the penetration method.

Test Frame:

Frame Size: 1900mm*1500mm*3570mm

Samples Size: 1930mm*864mm

Lift: Electric

Release: Auto

Maximum impact height: 1200mm (customized)

Rubber Pad Width: 15mm

Rubber Pad Thickness: 3mm

Rubber Pad Hardness: Shore A50

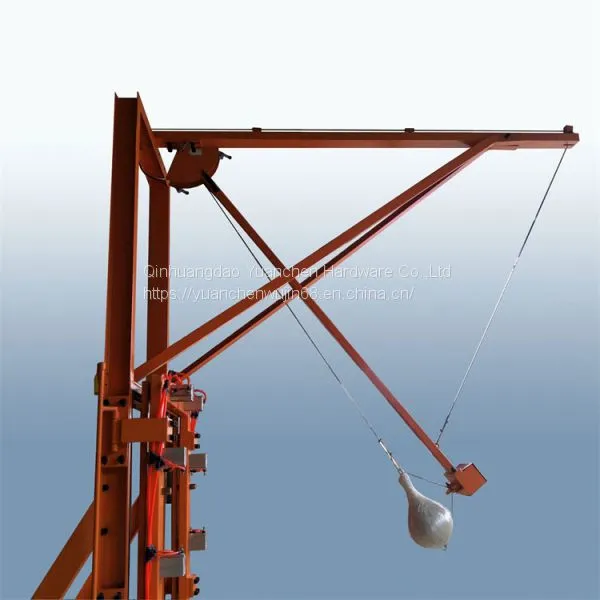

Impact Shot Bag:

Reinforced leather bag filled with chiller lead shot.

Technical Data:

Weight: 45kg±0.1kg  46kg±0.1kg

Height: 330mm ± 13mm

Max diameter: 250mm

Leather thickness: 1.5mm

Lead sand size: 2.5mm

Customized: 25kg /48kg
